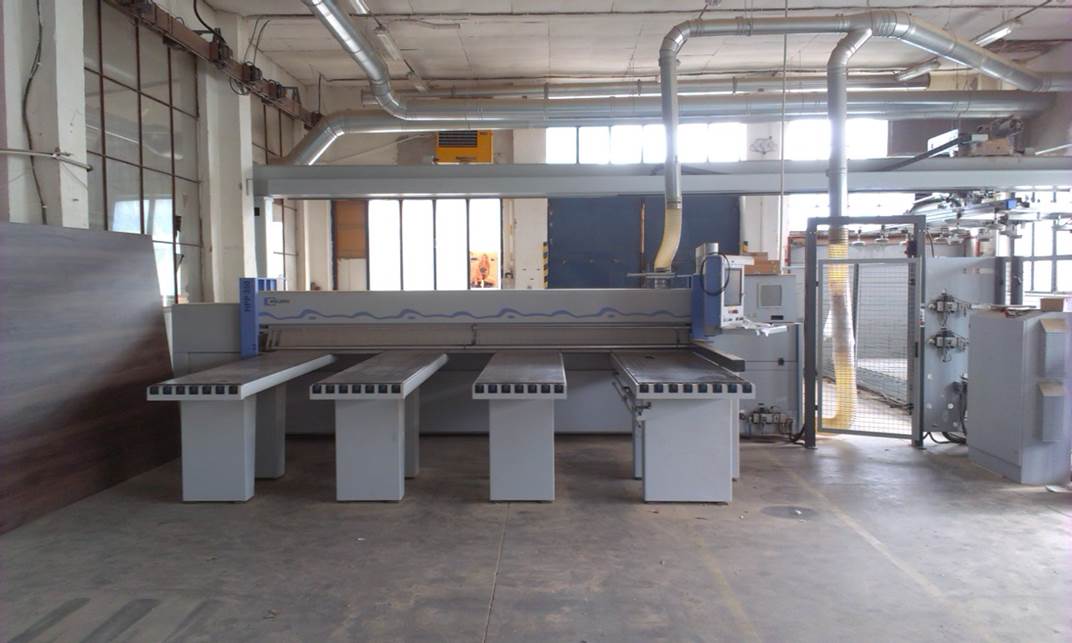

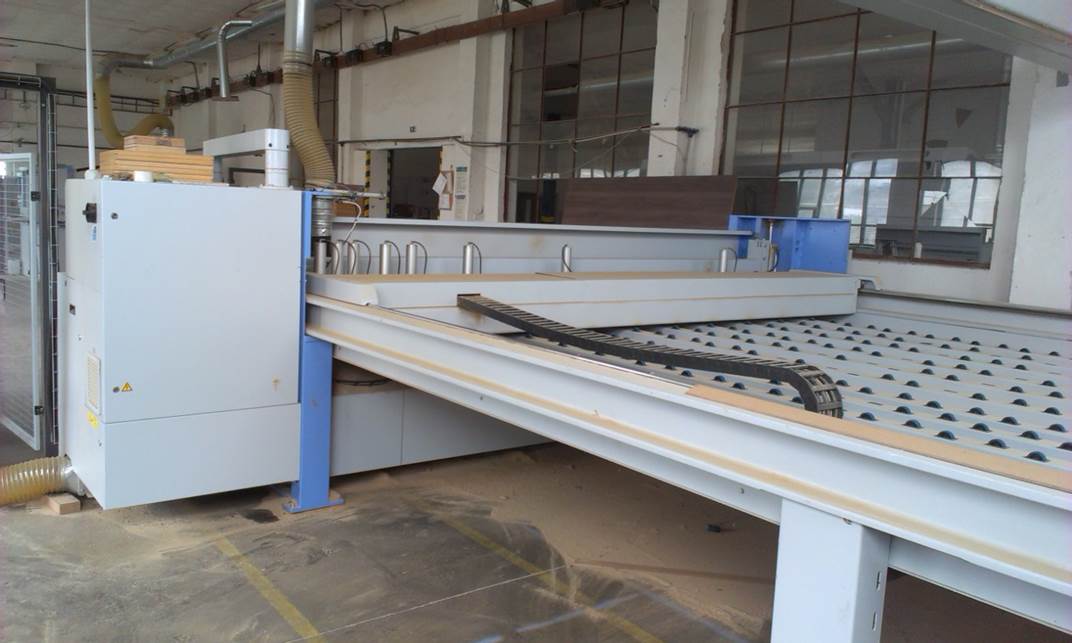

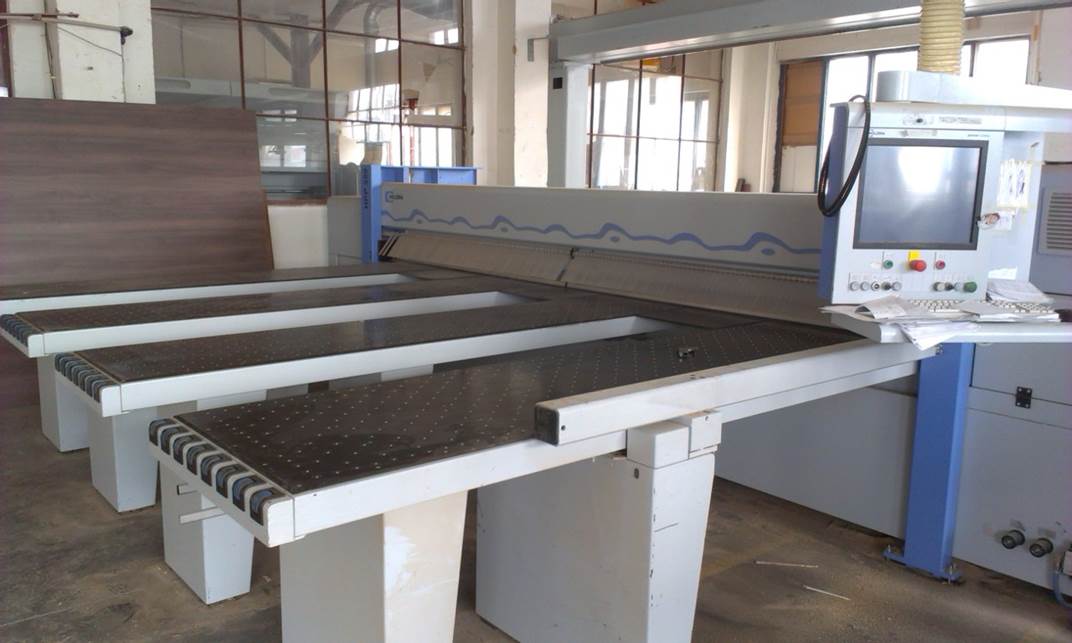

Machine description

Program slide speed:

Forward 90 m / min

Backwards 90 m / min

(in EU countries forward = 25 m / min)

Automatic pressure beam height control yes

Automatic cutting height, yes

Adjustable pressure bar contact pressure yes

Adjustable collet pressure yes

Completely sprayed machine table (saw body) yes

Angle pressing device

min. Pressure width 0 mm

Max. Pressure width

complete cutting length

Main saw motor 13.5 kW

Scoring saw motor 2.2 kW

Operating voltage 400 V (+10% / - 5%) / 50 Hz

Electrical connection value for HS motor:

13.5 kW = 20 kW

Working height 920 mm

Main saw blade 350 x 4.4 x 60 mm

Scoring saw blade 180 x 4.4 - 5.4 x 45 mm

Required air pressure 6 bar

Compressed air requirement 150 NL / min

V at the suction nozzle approx. 26 m / s

Negative pressure min. 1200 Pa

Exhaust air volume 3800 cbm / h

Extraction connection chip duct 1 piece 180 mm

Extraction connection pressure beam 1 piece 150 mm

BARGSTEDT TBP 200/43/22

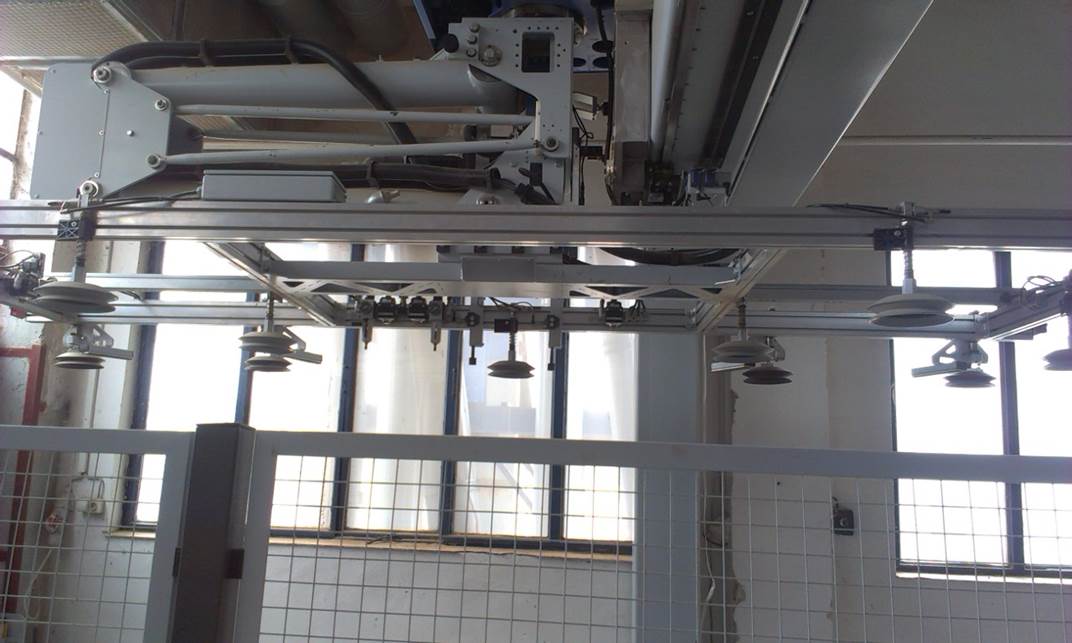

Automatic vacuum loading portal

for continuous loading of

small and large format panels.

TBP200 contains the following components:

- 1 carrier

- 2 portal supports or archway

- 1 scissors vertical guide

- 1 suction cross member including 4 suction cups

and 5 suction cups

- Protection of the system with a safety fence

and safety light barrier

Material: absorbent and separable

Output from the first stacking location

(Depending on material): approx. 2 cycles / min

Placement accuracy: +/- 20 mm

Stacking height including base: 1800 mm

Portal height: 3080 mm

Clearance height for forklifts: 2400 mm

Operating voltage: 400 V / 50 Hz

Minimum hall height required: 3970 mm

technical data cf. PDF document

(technical data subject to change, as information provided by the manufacturer)
