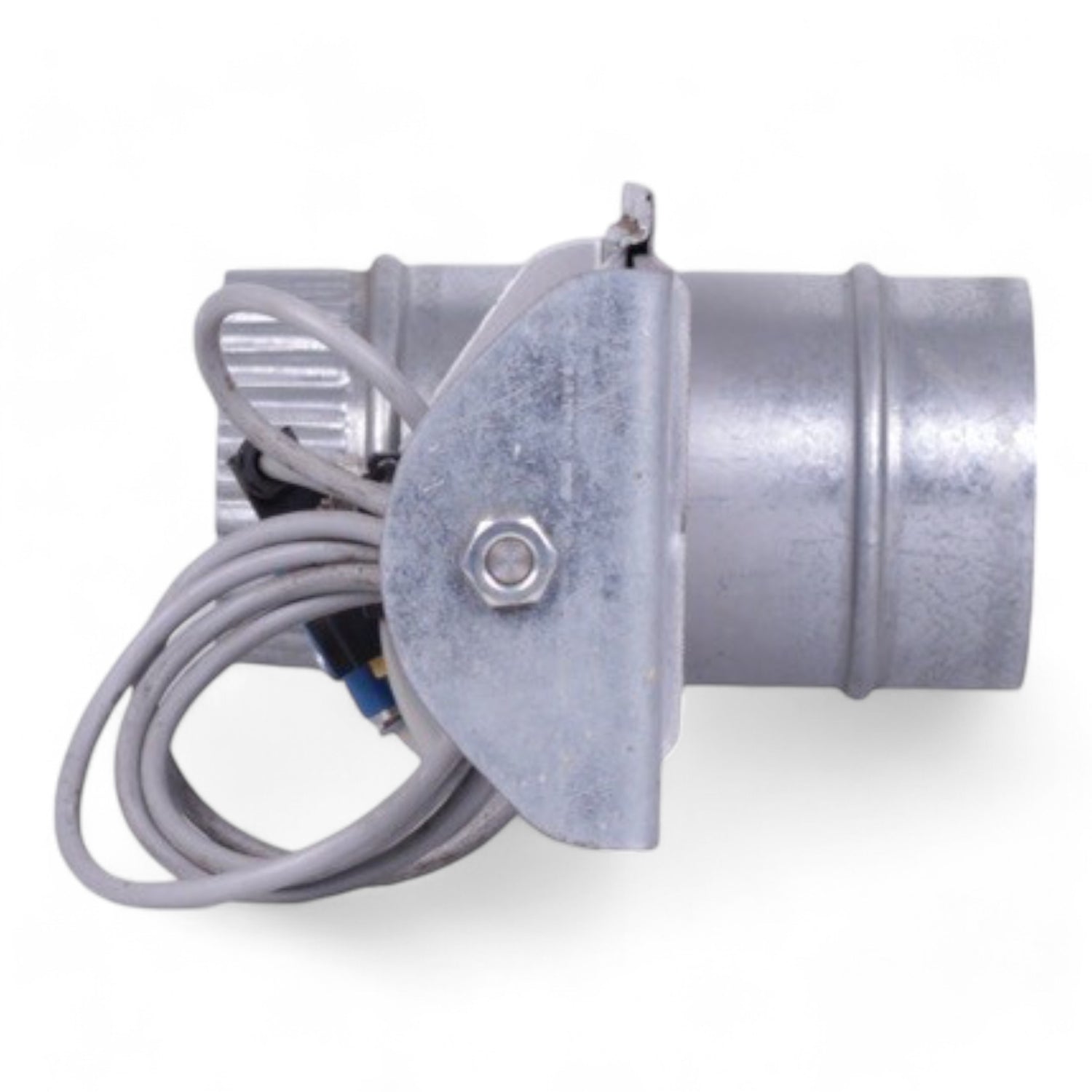

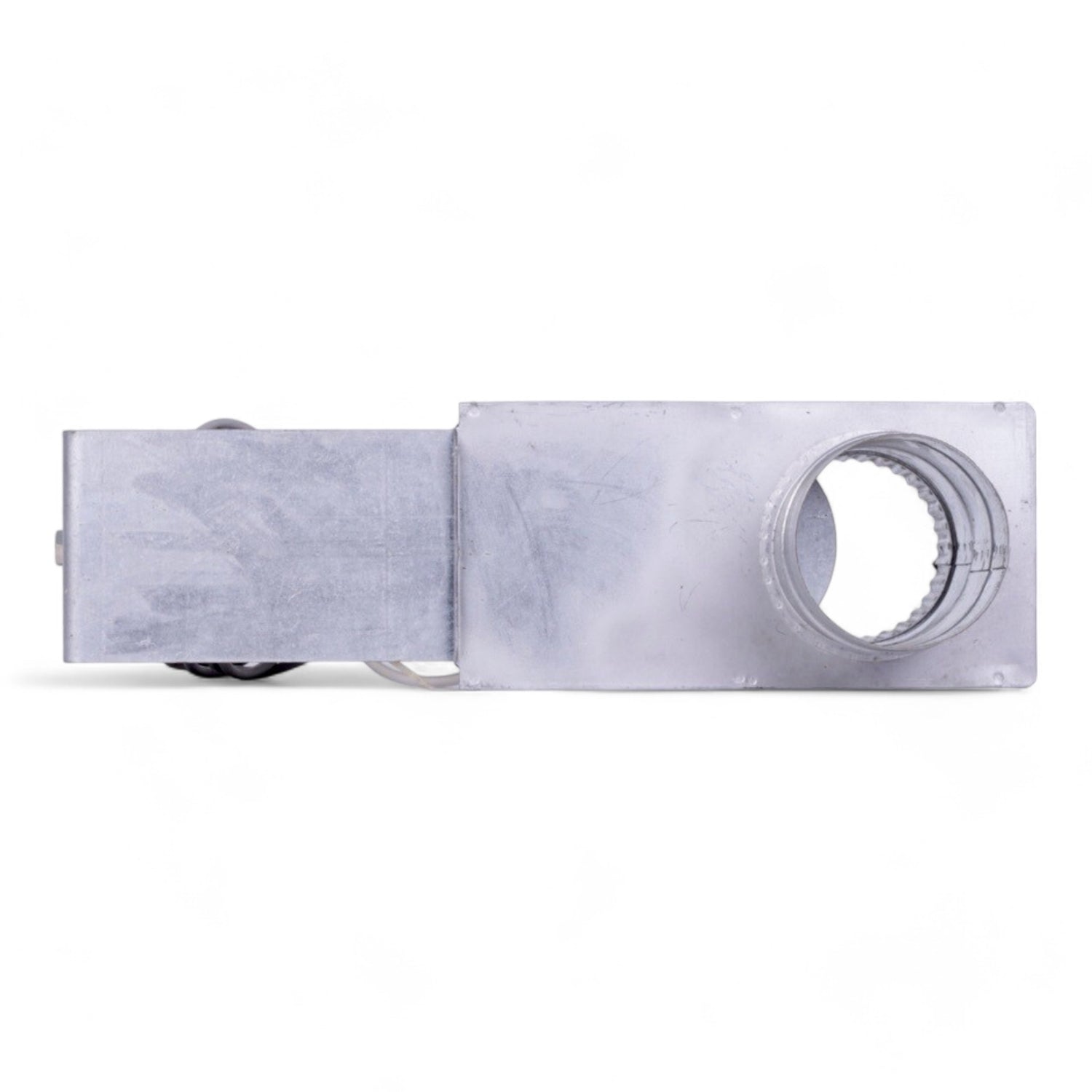

Pneumatic slide valve D= 560 mm slide valve gate valve suction
Pneumatic slide valve D=560 mm slide valve gate valve suction
Inner diameter in the range of 560 mm
Voltage 24 V
Solenoid valve
Pneumatic connection 6 mm (external)
Designed for use with board compatible with NESTRO, Schuko, Höcker Polytechnik etc.
Brand new
Adaptation to SPÄNEX, Nordfab etc on request
-
For sliders up to size D=200:
-
Double sealing with:
- PE-HD sealing ring on each side
- Elastic sealing ring made of CR
-
Double sealing with:
-
From D=220:
- Integration of a PE-HD sealing ring into each valve half by riveting
- Housing halves are screwed together
-

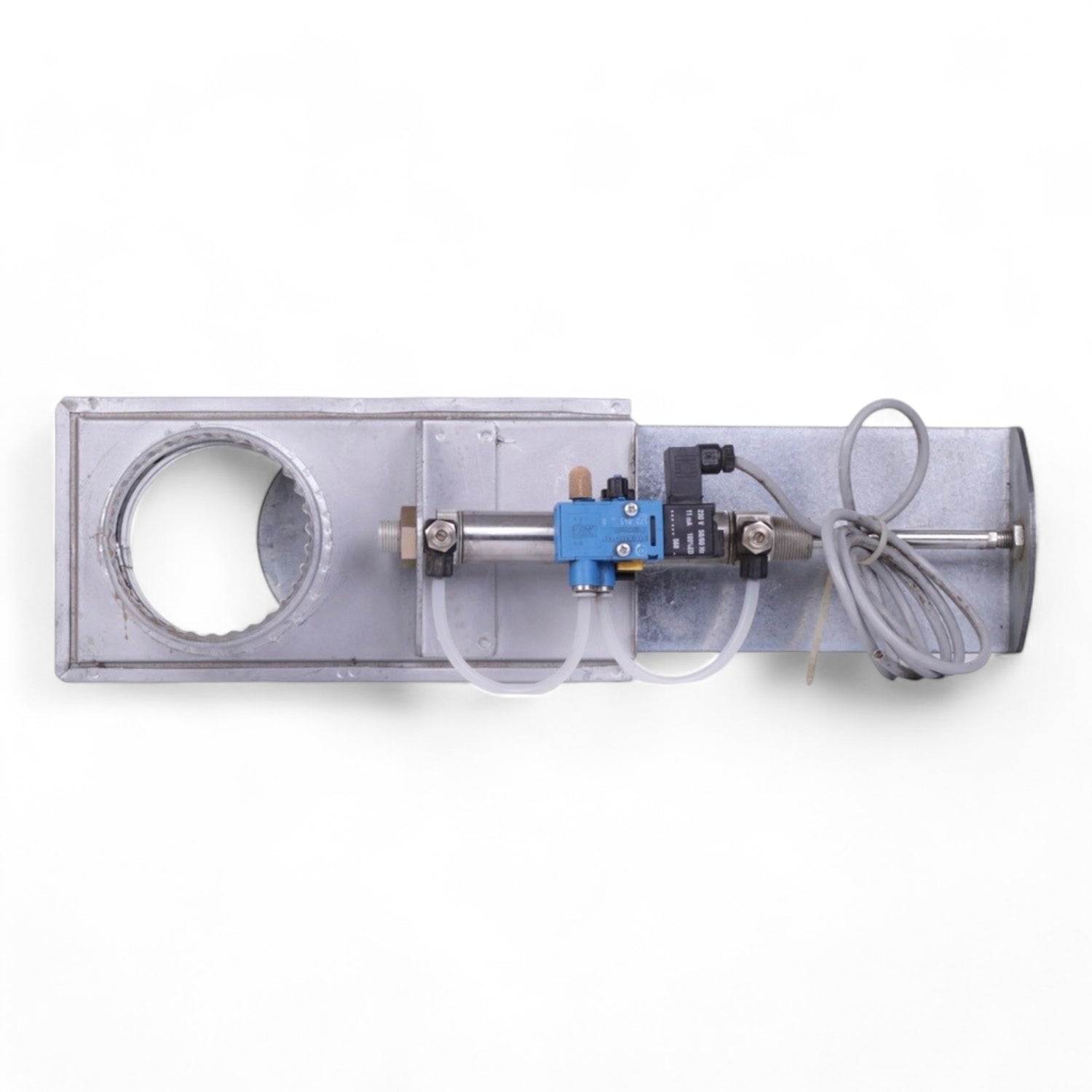

Operating the slider:
- By one pneumatic cylinder or from NW 220 by two pneumatic cylinders
-
Option for sizes below NW 220:
- Delivery with two cylinders possible on customer request
-

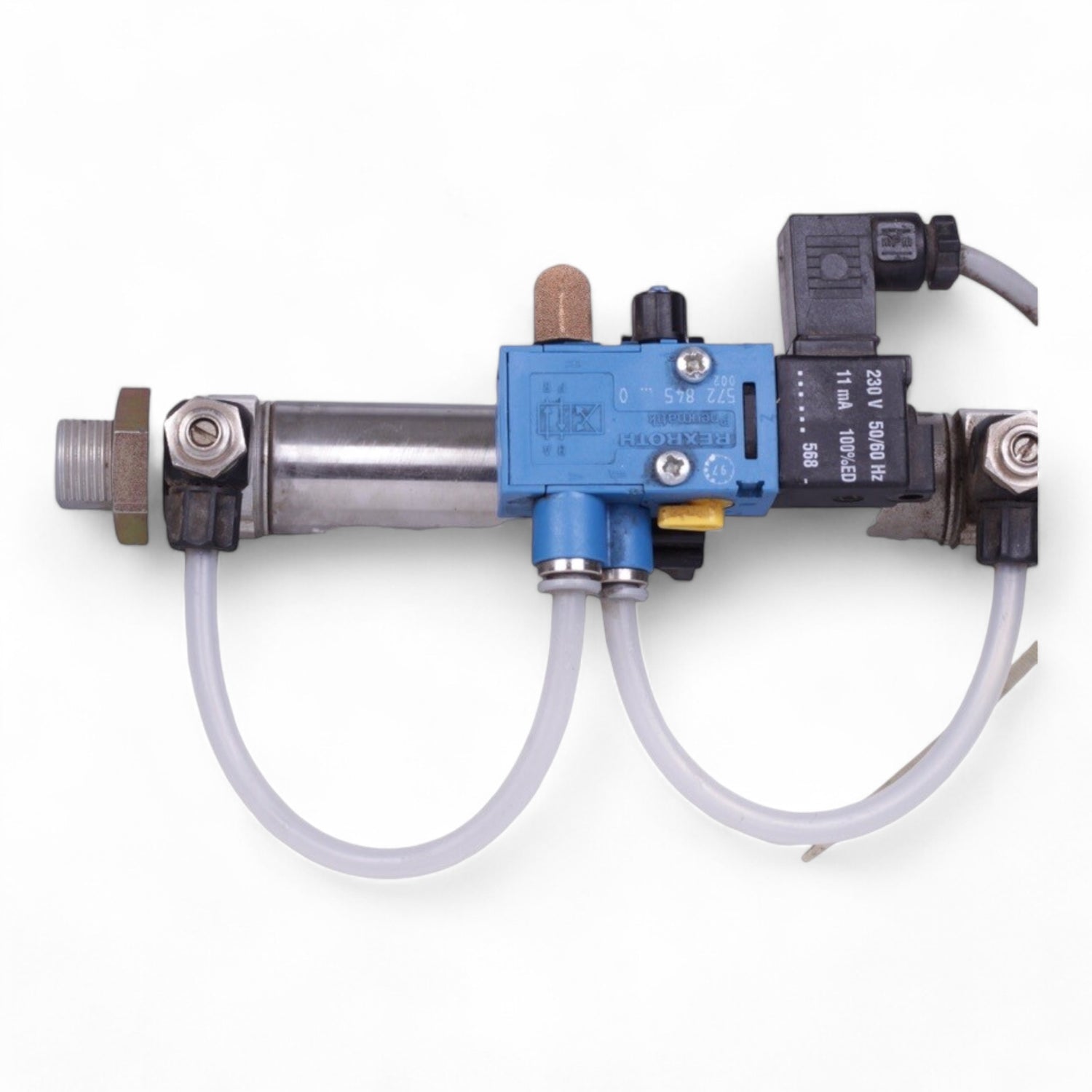

Control:
- By means of 5/2-way valve with spring return
- Opening of the slider when voltage is applied to the coil
- Closing of the slide when the valve is de-energized
- Coil voltage options:
-
- 220V AC, 24V AC, 24V DC, 48V DC, 110V AC, 230V AC,
- We deliver without specifying the voltage in 24 V
-
Delivery:
- Up to D=400 with a single edge of approx. 6 mm width
- From D=450 with flange edge of approx. 11 mm width
-
Special features for slide valves in high vacuum systems:

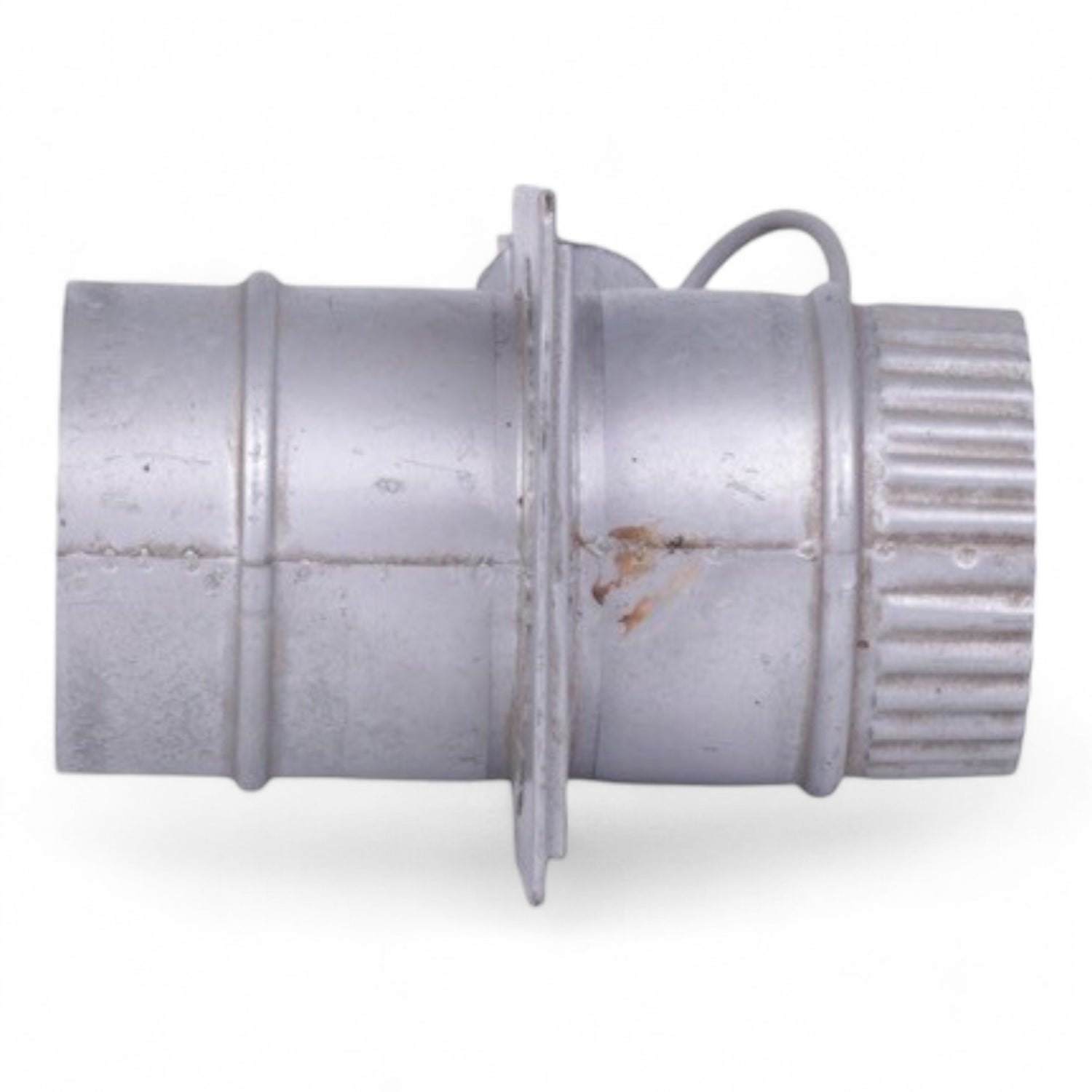

- Smooth ends for mounting with pipe couplings
-
Special versions:
-
Available on request:
- Equipment with other pneumatic brands
- Painted housings
-
Available on request:
-
Important:
- Customers must check suitability for the respective application
- Maximum pressure for compressed air is 8 bar
-
