IMA edgebanding unit for 4-sided all-round edgebanding suitable for IMA BIMA 610 V 680 V 810 V

IMA Edgebanding Unit for 4-Sided All-Round Edgebanding suitable for IMA 680 V

This used edgebanding unit is a specialized spare part for full 4-sided edgebanding and all-round edgebanding at butt joints in processing centers of the IMA 680, 480, and 980 series. The module comes from an IMA 680 V machine with serial number 2216 and built in 2001.

The unit is equipped with a main pressure roller with a diameter of 100 mm and a pneumatically controlled post-pressing roller with a diameter of 35 mm. An integrated glue application unit ensures uniform coating of the edge material with temperature and level control.

The servo drive automatically adapts to the machine's feed rate and ensures precise feeding of the edgeband. For post-activation of the adhesive surface, a hot-air unit with 7.5 kW is installed on the glue side. On the decor side, a 600-watt IR emitter supports material deformation for small radii.

Further features include a pneumatically driven cutting saw with butt joint detection and an NC axis with a rotation range of up to 740 degrees and a pneumatic Z-stroke of 125 mm. Additionally, the unit has a separate NC axis in the Y-direction, which works in the X-direction on gantry machines and can be controlled independently of the main axis.

Scope of Delivery

The unit is delivered as shown, without further accessories.

Note

The unit was in production for about two years and is in good used condition. Please check the installation possibility in your machine before purchasing. Returns are excluded. Technical data is provided to the best of our knowledge but without guarantee.

Technical Data

Machine type IMA 680 V

Serial number 2216

Year of manufacture 2001

Main pressure roller Ø 100 mm

Post-pressing roller Ø 35 mm

Hot air post-activation 7.5 kW

IR emitter 600 W

NC axis rotation range up to 740°

Pneumatic Z-stroke 125 mm

Commodity code 84224000

Shipping weight approx. 180 kg

Highlights

Suitable for IMA machines of series 480, 680, 980

With hot air activation, IR emitter, and servo edge feed

NC axis with Z-stroke and separate axis for flexible integration

Brief Description

IMA edgebanding unit for all-round edgebanding with servo feed, hot air, and NC axis, good condition from IMA 680 V

Machine feed rate.

A powerful hot air post-activation unit with 7.5 kW is installed on the glue side. On the decor side, a 600-watt infrared emitter ensures optimal heating for material deformation in tight radii. A pneumatically operated cutting saw with butt joint detection is also integrated.

The unit has an NC axis with a rotation range of up to 740 degrees and a pneumatic Z-stroke of 125 mm. Additionally, an independent NC axis is available in the Y-direction (in the X-direction for gantry machines), allowing the unit to operate independently of the main axis.

Scope of Delivery

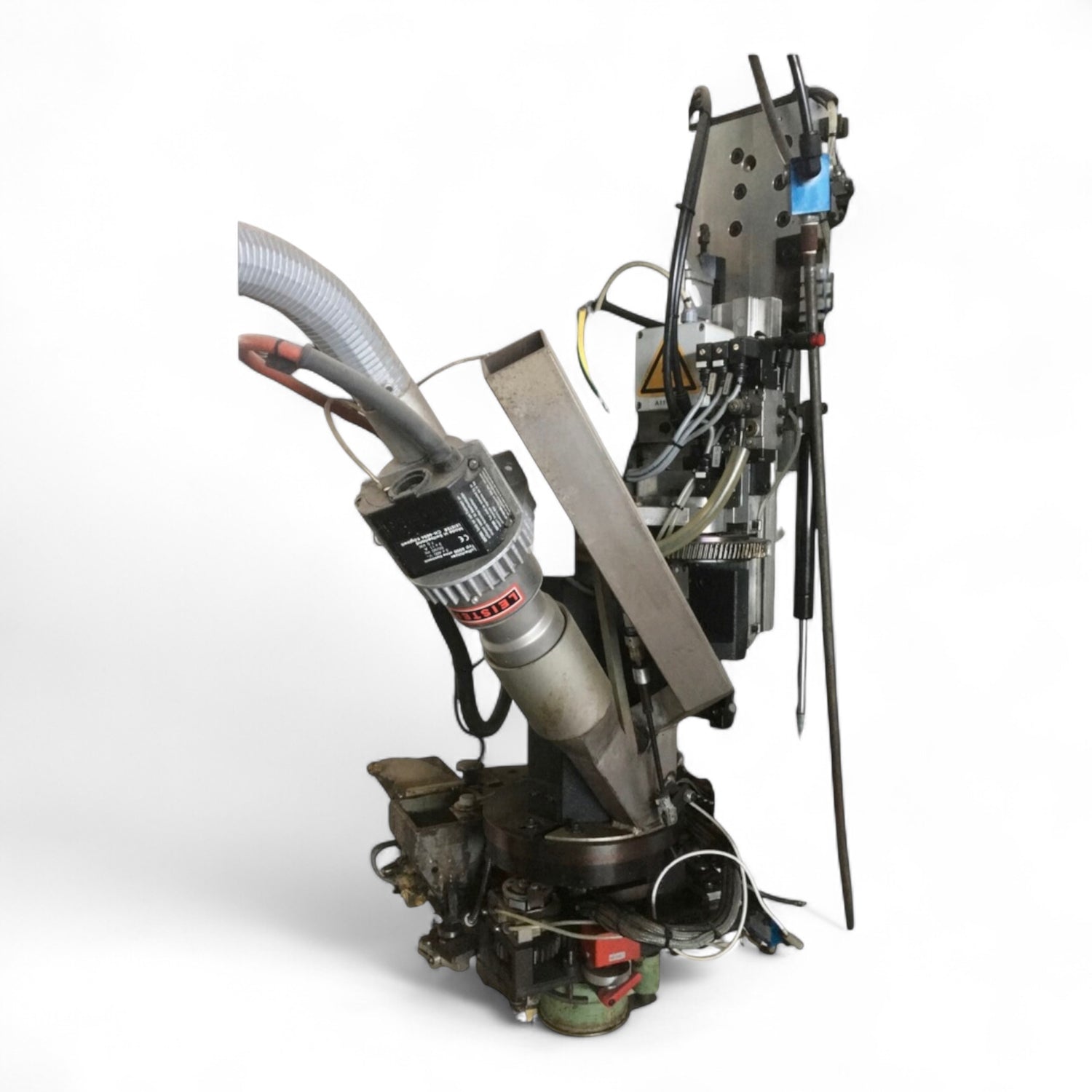

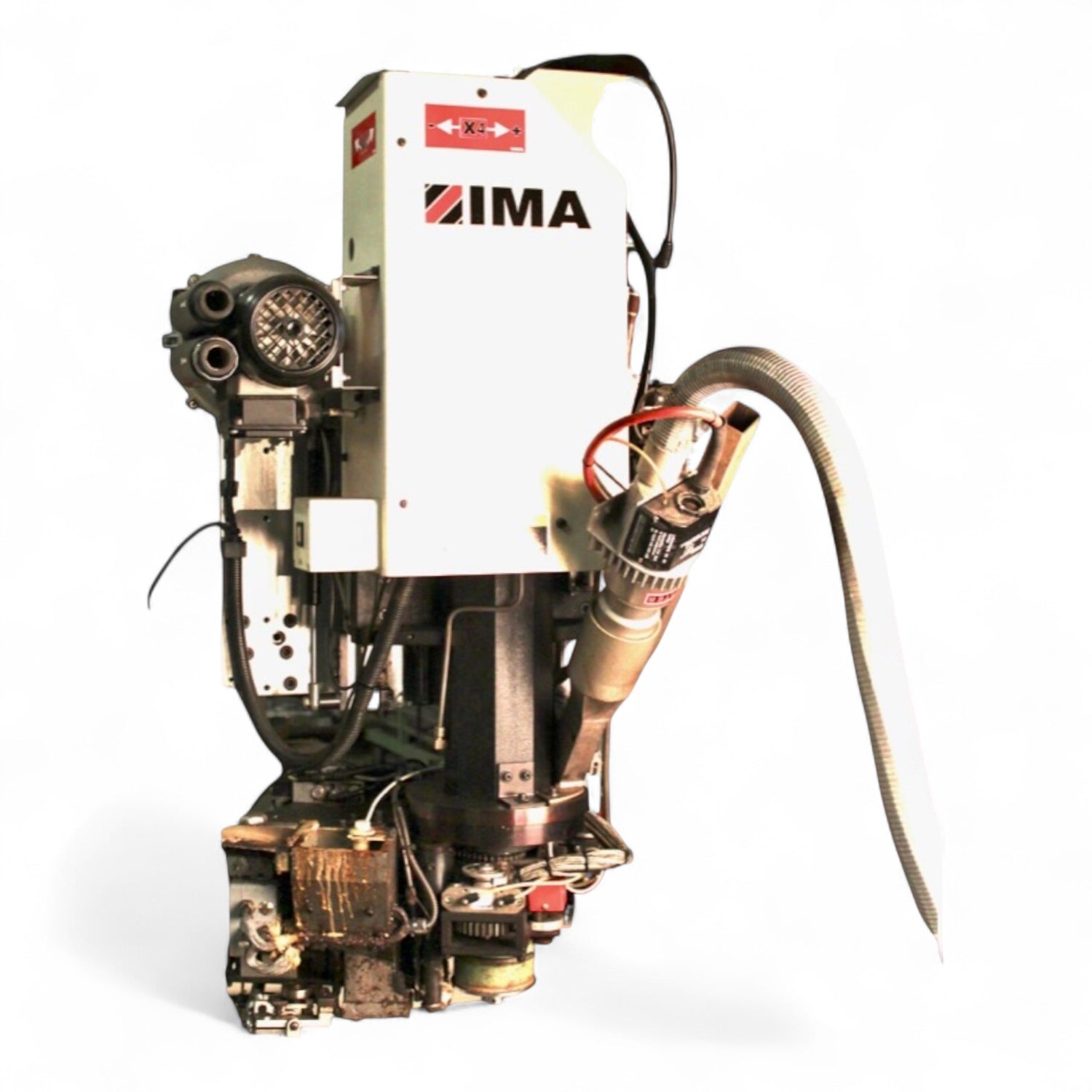

The unit is delivered as shown in the images. These are currently symbolic images; original images will be provided shortly.

Note

The unit was in productive use for approximately two years and is in good used condition. It comes from an IMA BIMA 810 V machine built in 1999. Technical data is provided to the best of our knowledge but without guarantee. Please carefully check the installation possibility in your machine. Returns are excluded.
