HSK 63 F chuck with DIA end mill 30 x 15 mm shaft 25 mm No. 002/473...
LEUCO HSK 63 F Chuck with DIA End Mill 30 x 15 mm Shank 25 mm No. 002/4732232 Clamping Diameter 25.0005–24.945

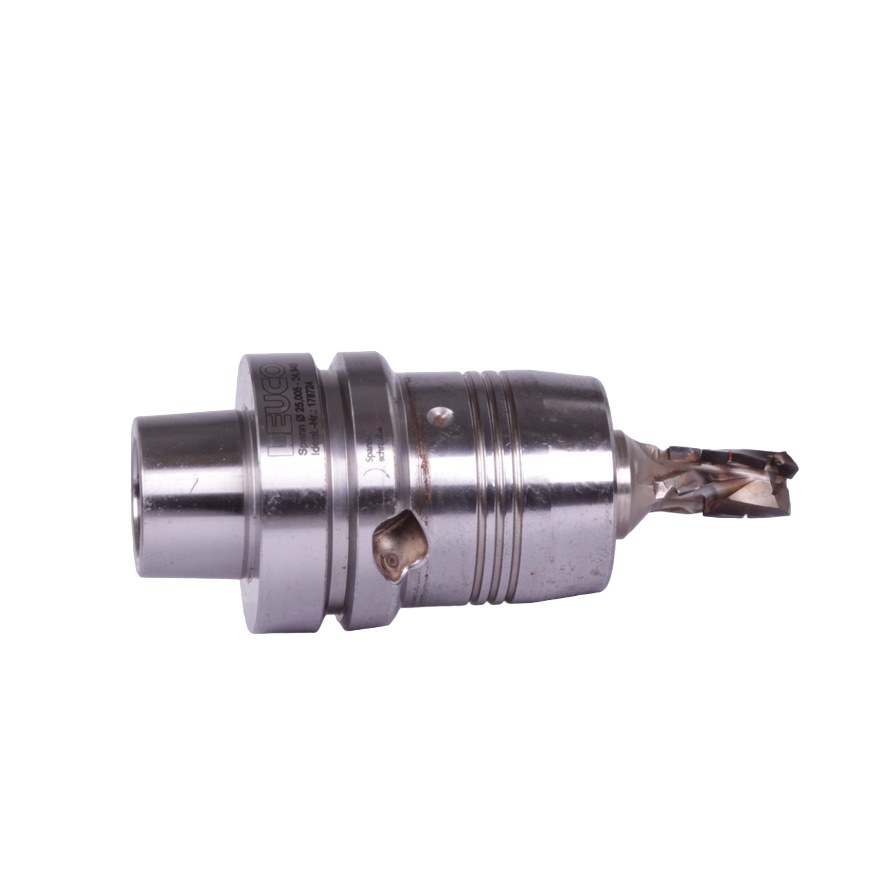

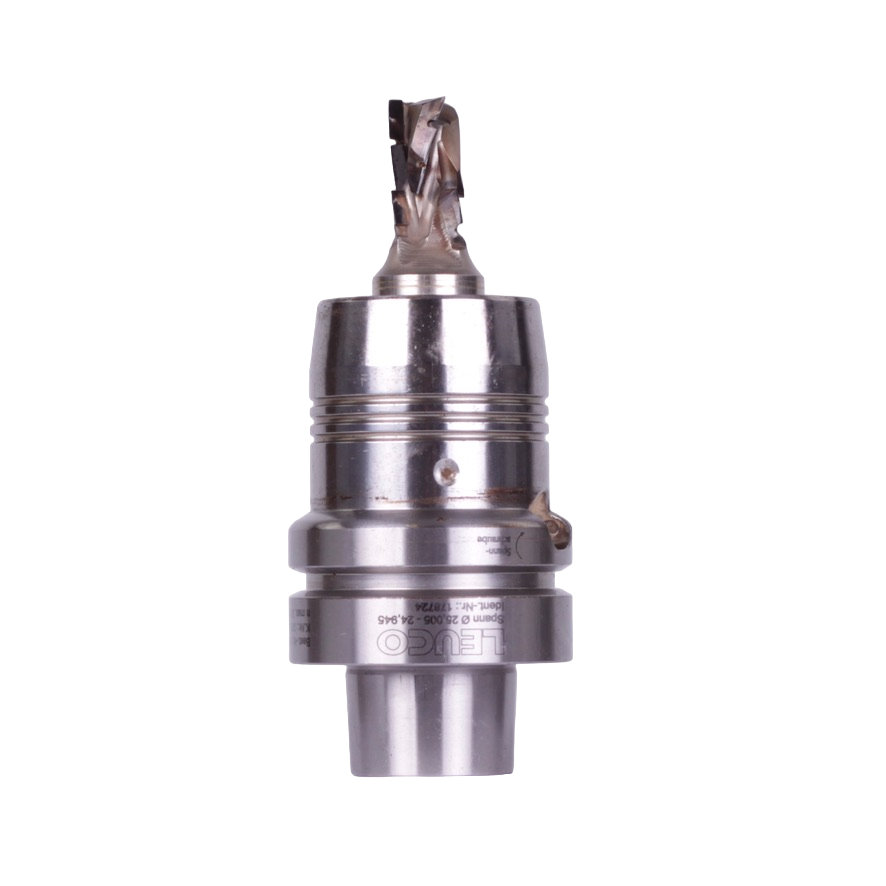

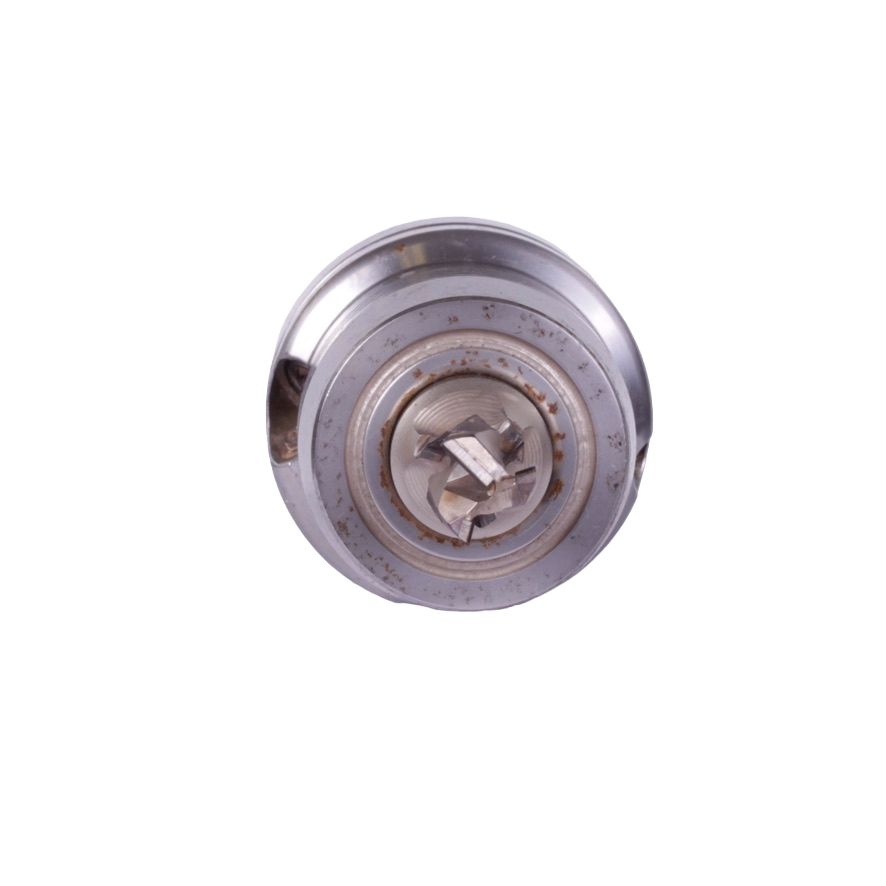

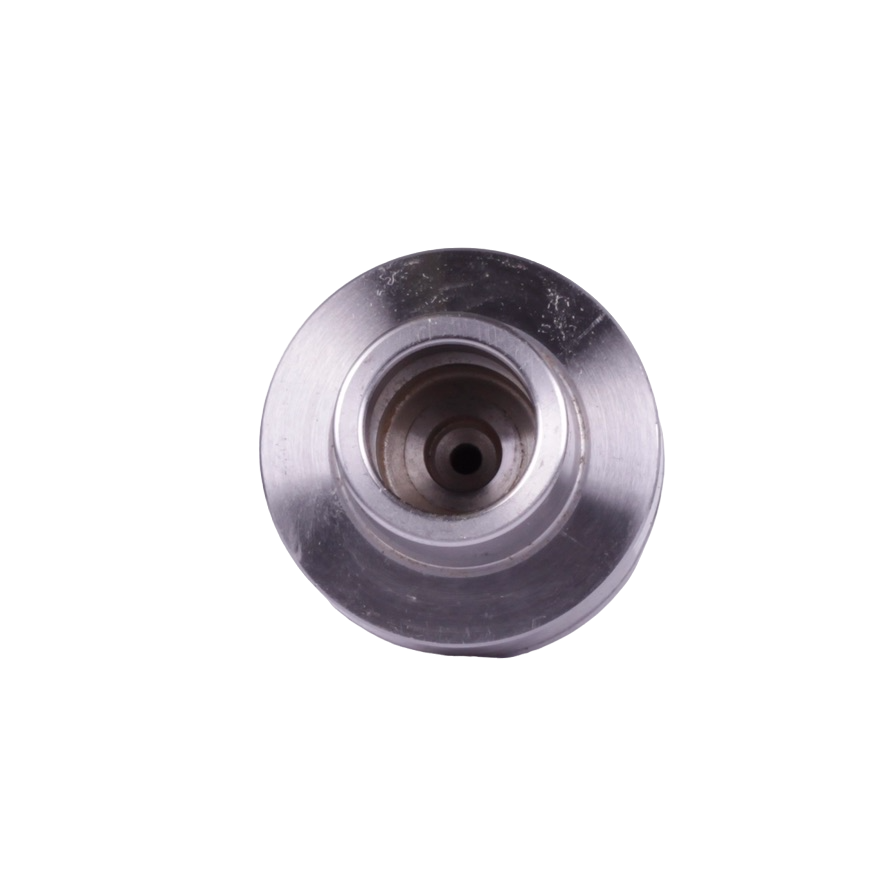

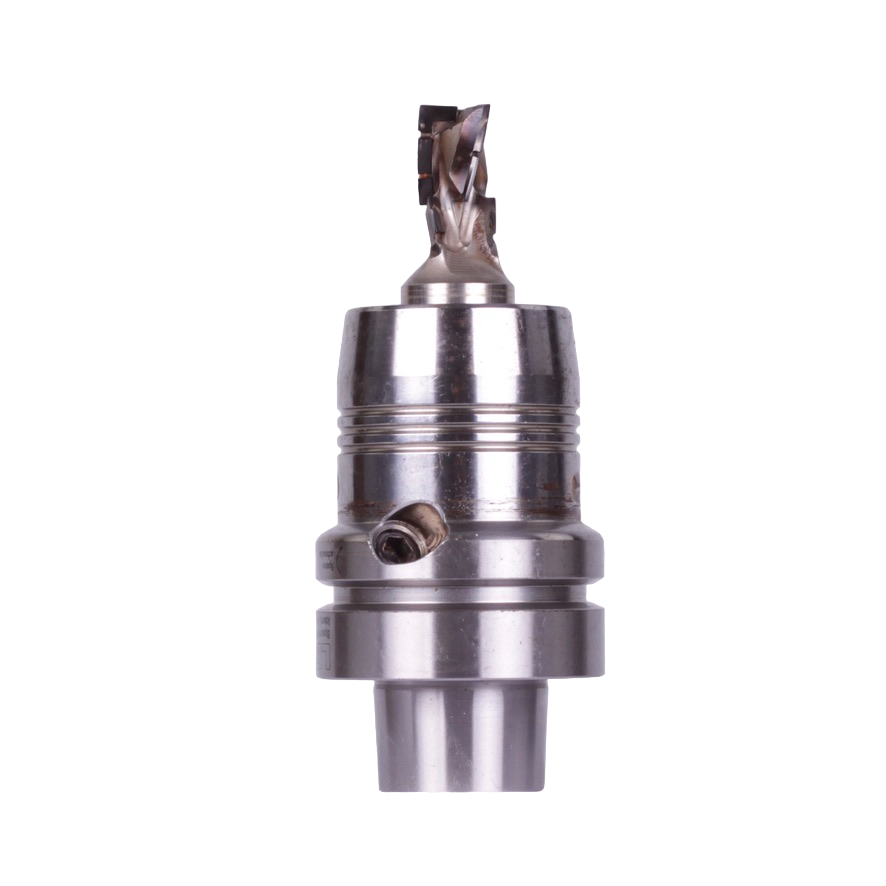

This used LEUCO hydraulic expansion chuck with mounted DIA end mill is a high-quality precision clamping tool for use in CNC machining centers with an HSK 63 F interface. The hydro-mechanical clamping technology enables highly accurate concentricity, low-vibration operation, and secure power transmission at high speeds up to 25,000 rpm.
The mounted diamond tool has a shank diameter of 25 mm and a milling head with a 30 mm diameter and 15 mm cutting length. The clamping diameter range is specified as 25.0005 to 24.945 mm and guarantees precise and secure tool clamping.

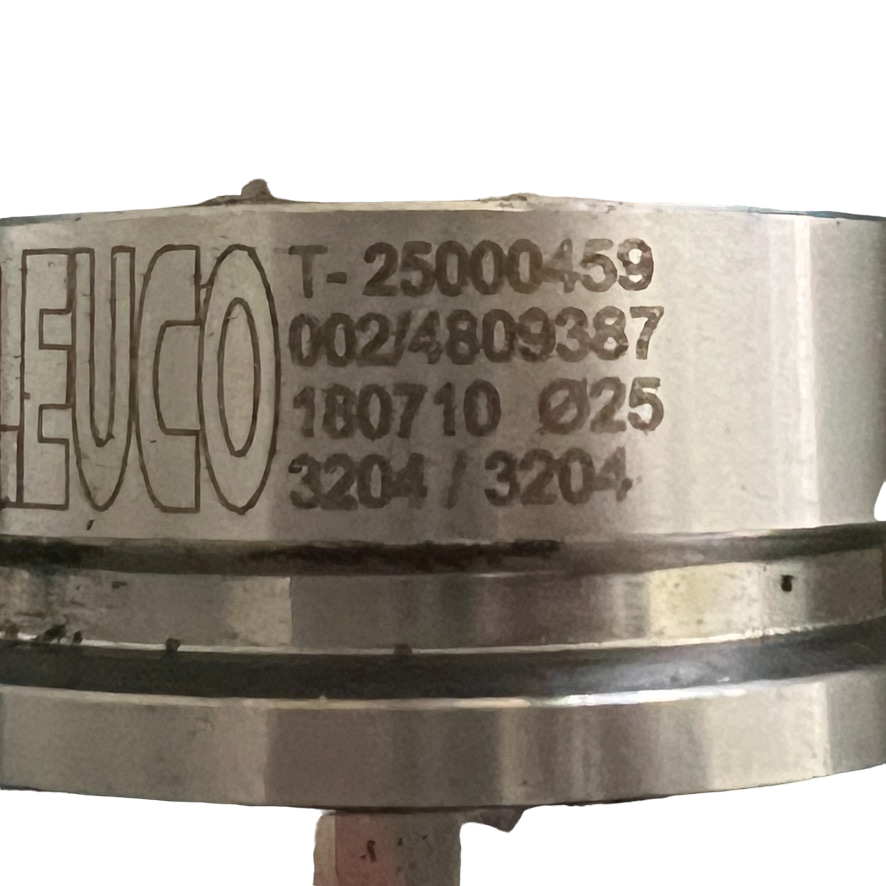

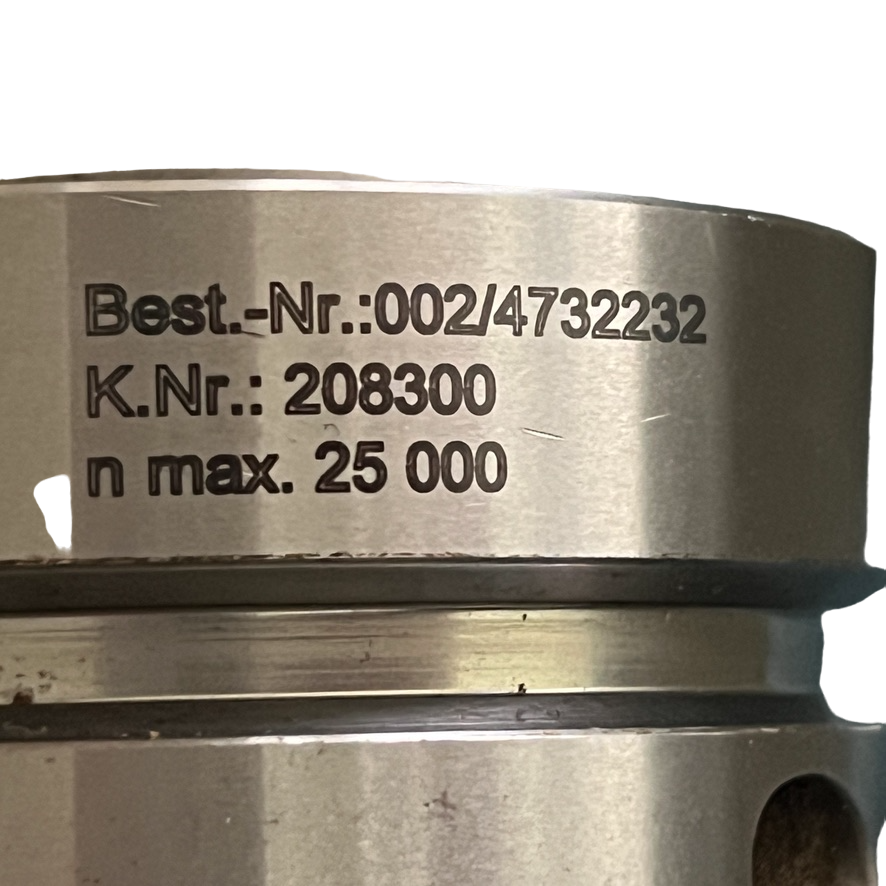

The engraving on the chuck shows the following data:
LEUCO Order number 002/4809387
Additional number 002/4732232
Design number 208300
Production batch 180710
Speed range up to 25,000 rpm
Suitable for applications in highly dynamic CNC milling centers
Scope of Delivery
LEUCO HSK 63 F chuck with mounted DIA end mill as pictured
Further accessories are not included
Note
Used item with signs of wear typical for its age, such as scratches or tarnishing
Functionality is given; a technical check before initial use is recommended
No returns possible
Technical Data
Manufacturer LEUCO
Mounting type HSK 63 F
Order number 002/4732232
Design number 208300
Clamping diameter 25.0005 to 24.945 mm
Cutter diameter 30 mm
Cutting length 15 mm
Shank diameter 25 mm
Maximum speed 25,000 rpm
Product number 82077031
Shipping weight approx. 2 kg
-
