HSK 63 E ER 40 chuck LEUCO with HM end mill 5 x 19 mm

LEUCO HSK 63 ER40 Collet Chuck with Carbide End Mill 5 x 19 mm

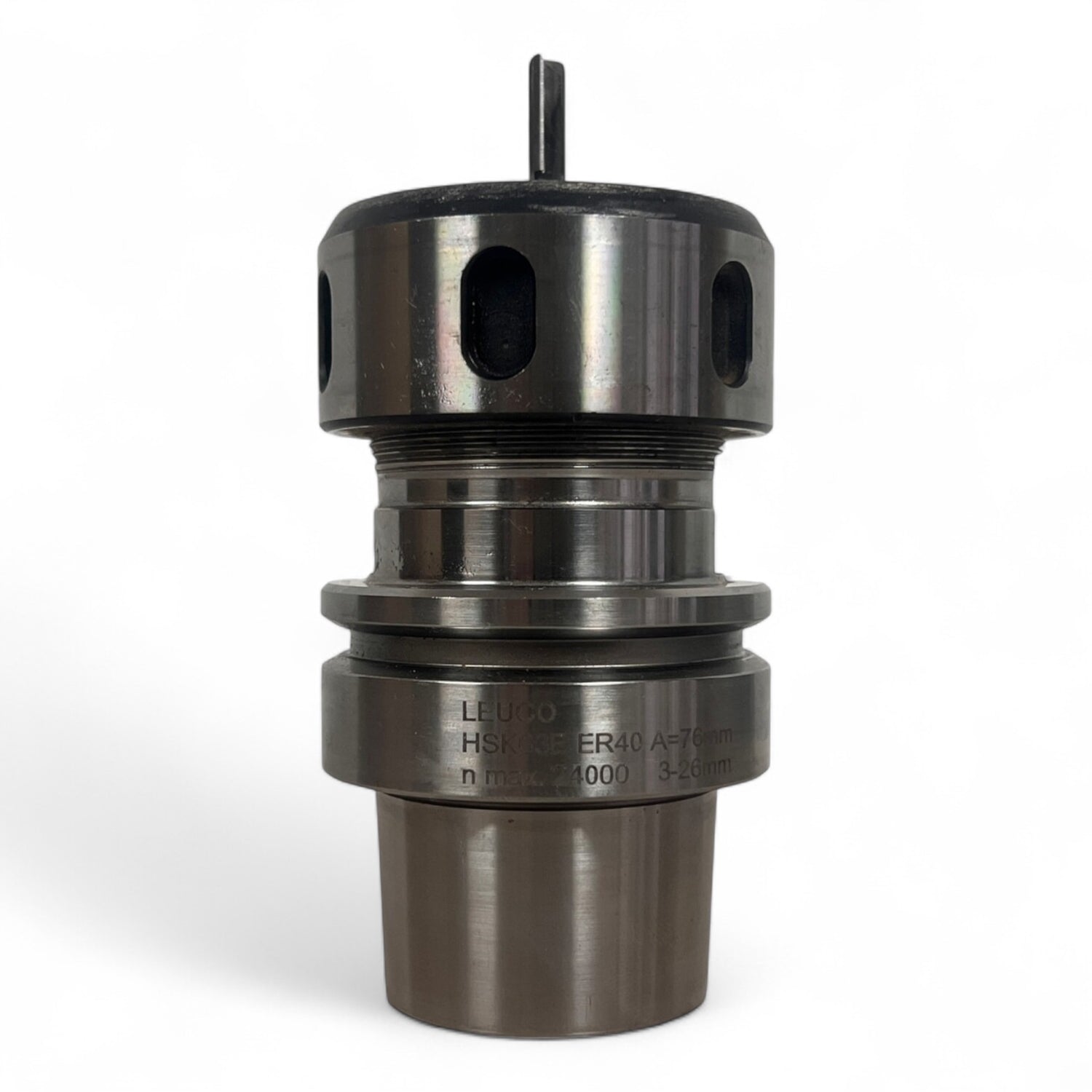

Article number: Engraving on the chuck: LEUCO HSK63ER40 A=76mm n max. 24000 3–26mm

Chuck designation: HSK 63 ER 40

Cutter type: Carbide end mill 5 mm diameter x 19 mm cutting length

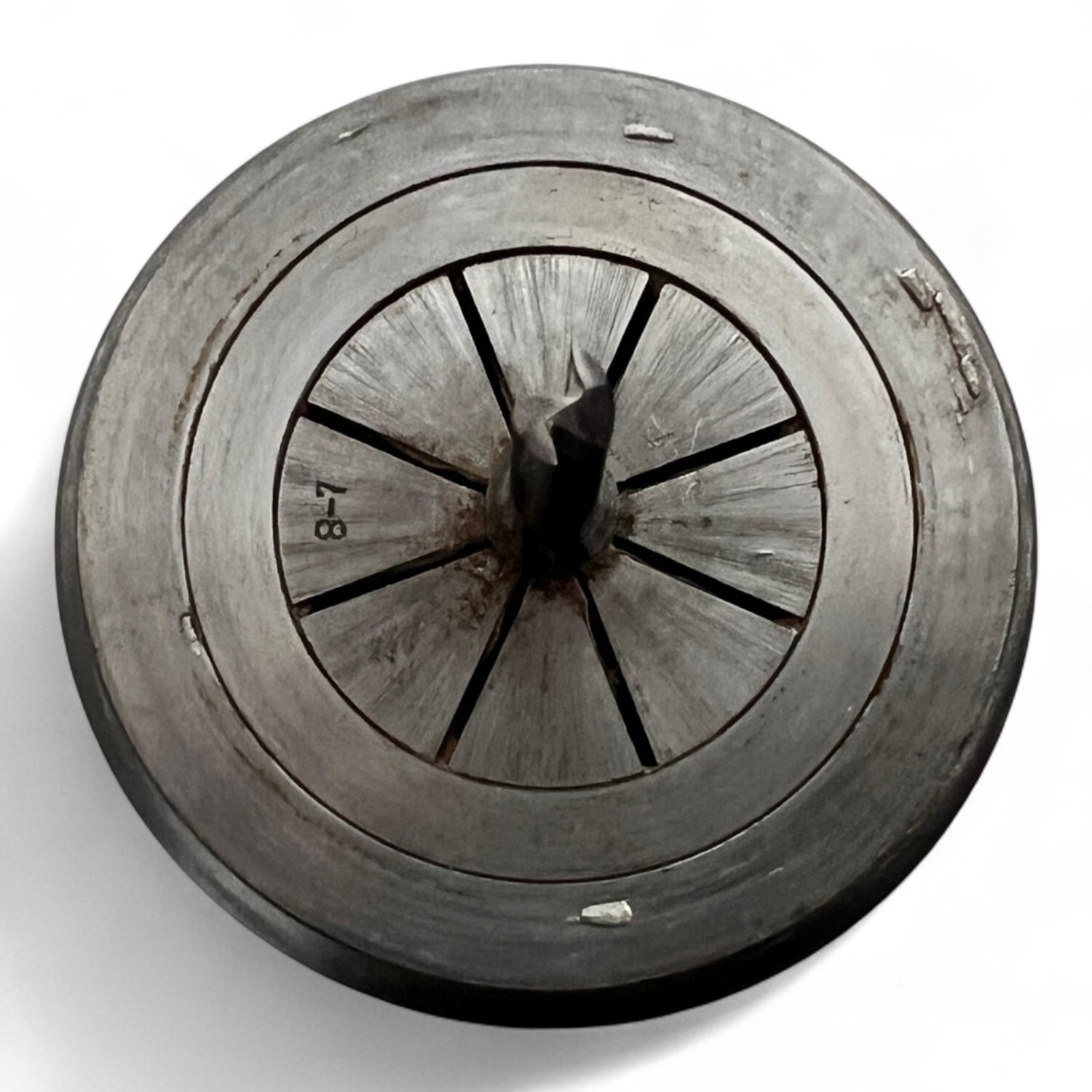

Collet: Integrated, Type 8-7, matching cutter diameter

Description:

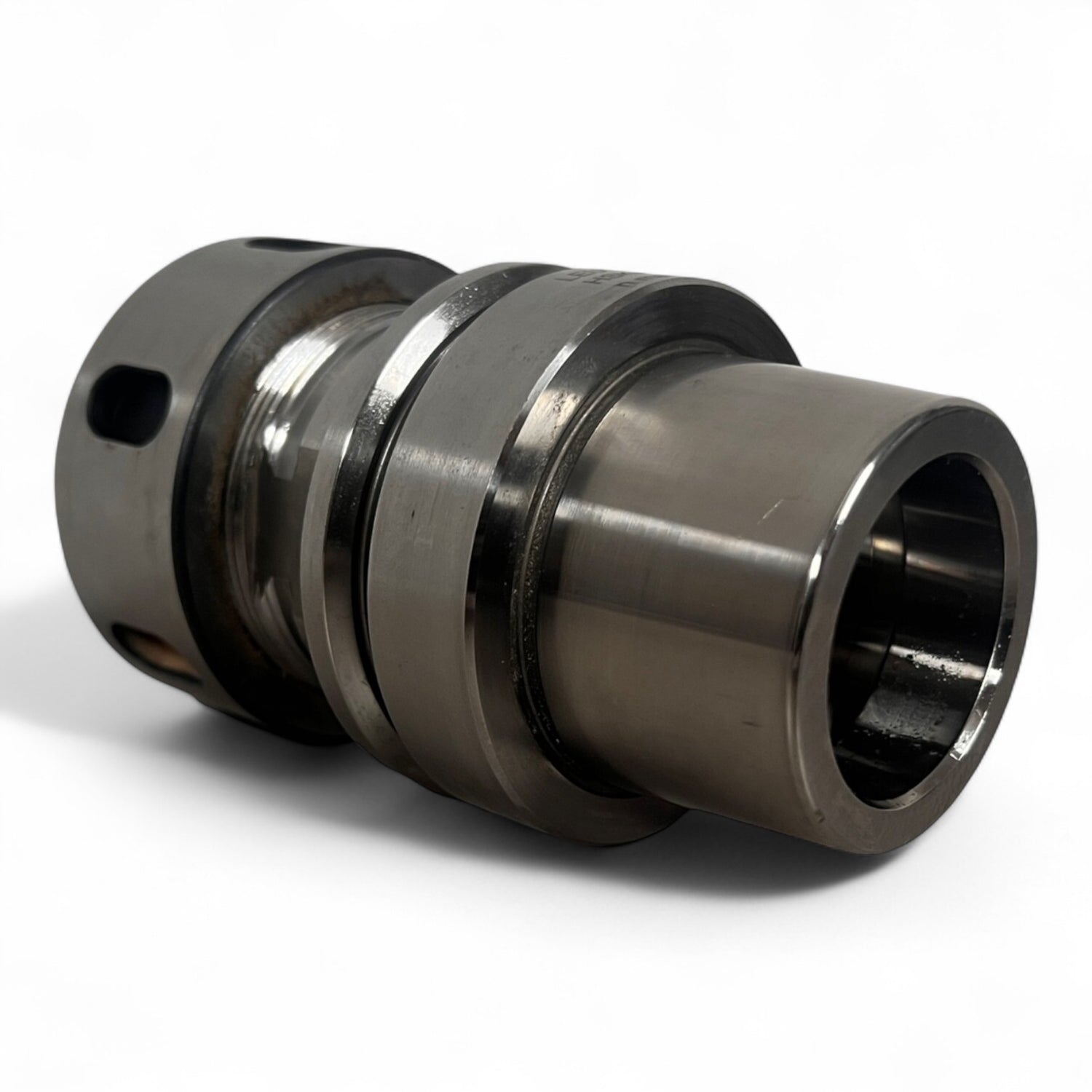

The used LEUCO HSK 63 ER40 collet chuck is equipped with a carbide end mill (5 x 19 mm) and is ideal for precise milling work in CNC machining centers. The clamping system is based on an ER40 collet, which in this case is marked for shaft diameters of 8 mm. The collet chuck is fine balanced and approved for high-speed operation up to 24,000 rpm.

Technical data:

• Spindle taper: HSK 63

• Collet system: ER 40

• Clamping range: 3 – 26 mm

• Length A: 76 mm

• Max. speed: 24,000 rpm

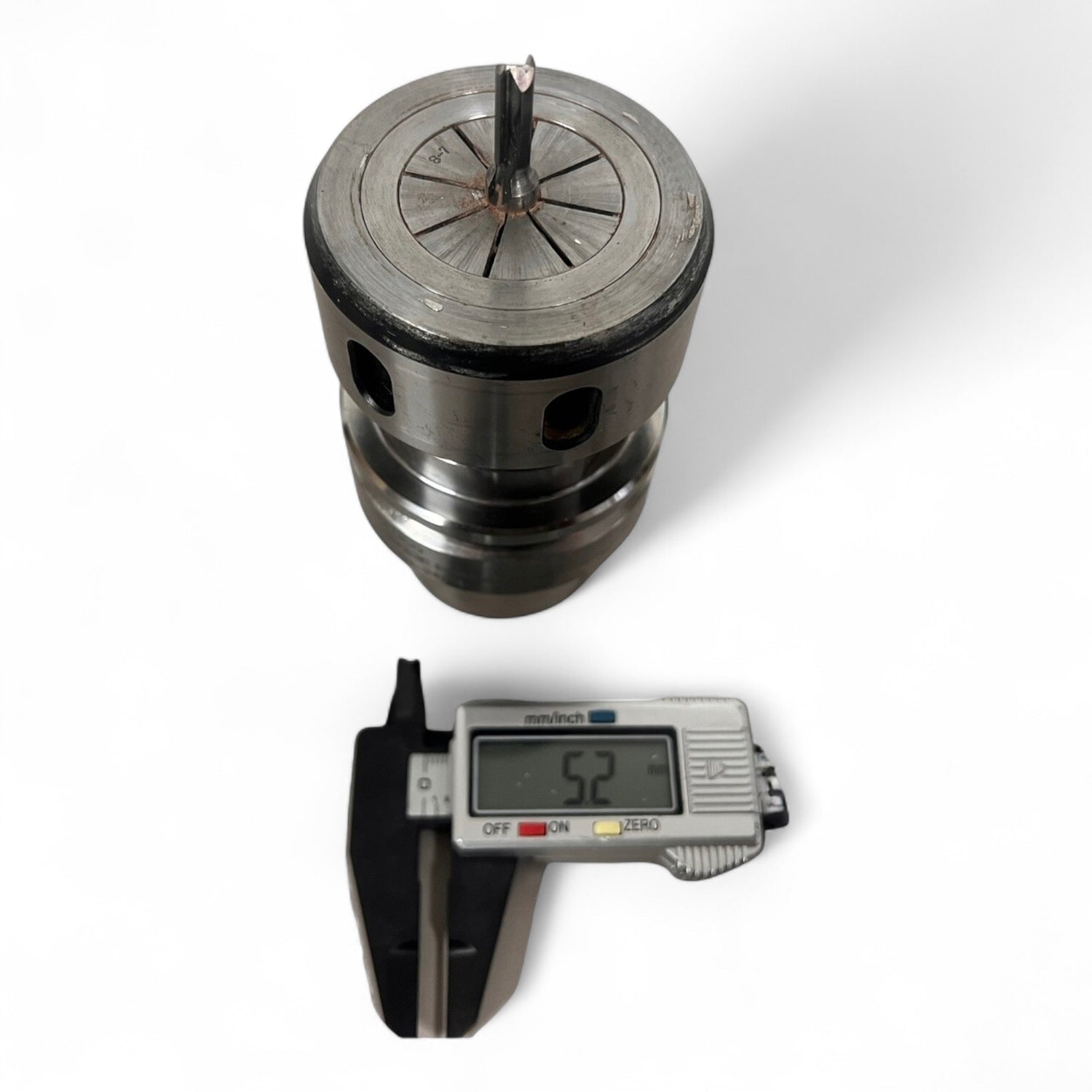

• Cutter diameter: 5 mm

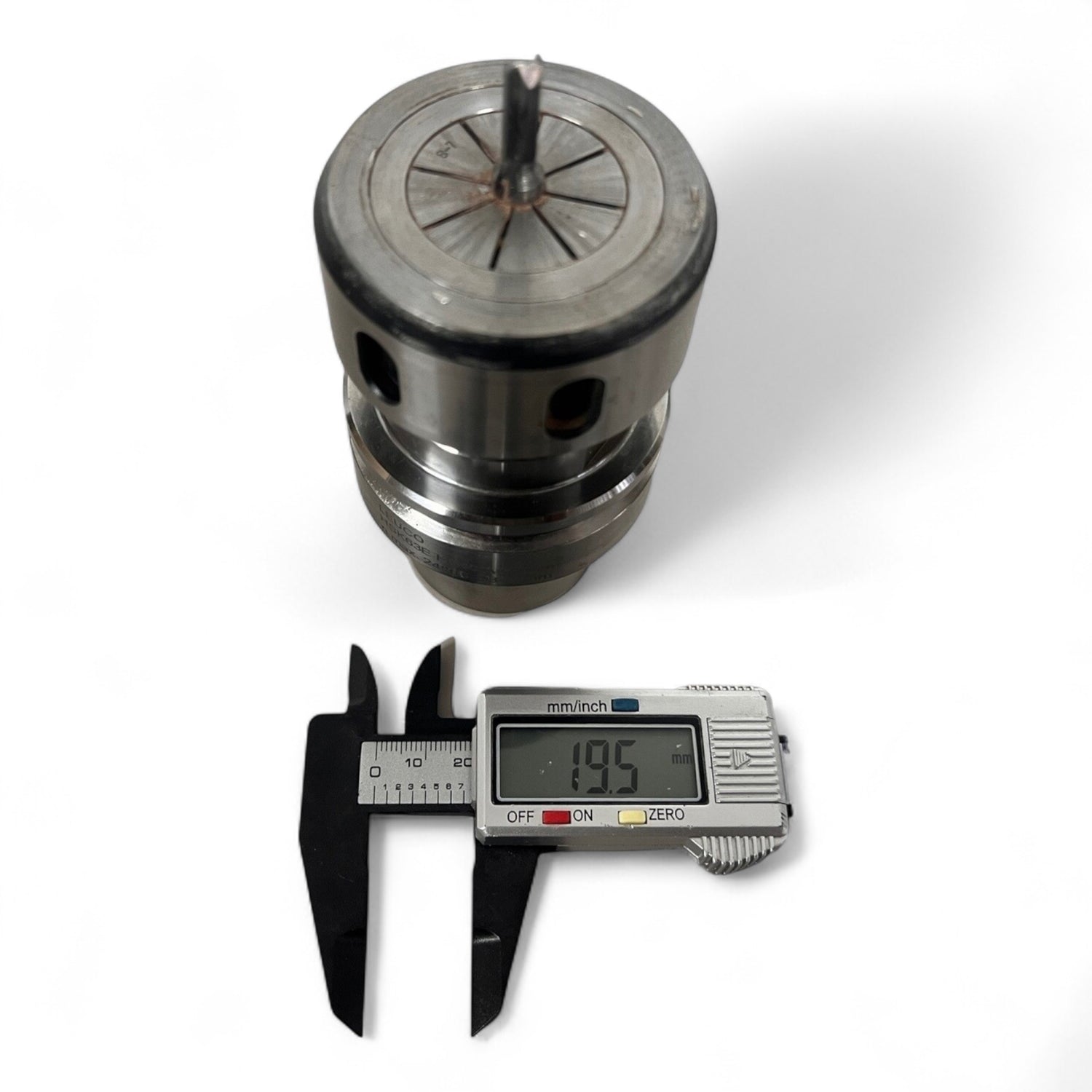

• Cutting length: 19 mm

• Material: High quality tool steel

• Suitable for right and left-hand rotation

• Condition: Used, fully functional

Advantages:

• Includes carbide end mill with 5 mm diameter

• Balanced for high speeds – ideal for modern CNC machines

• Robust construction for precise clamping force

• Wide clamping range thanks to ER40 system

• Ready for immediate use

Scope of delivery:

• 1x LEUCO HSK 63 ER40 collet chuck with integrated collet

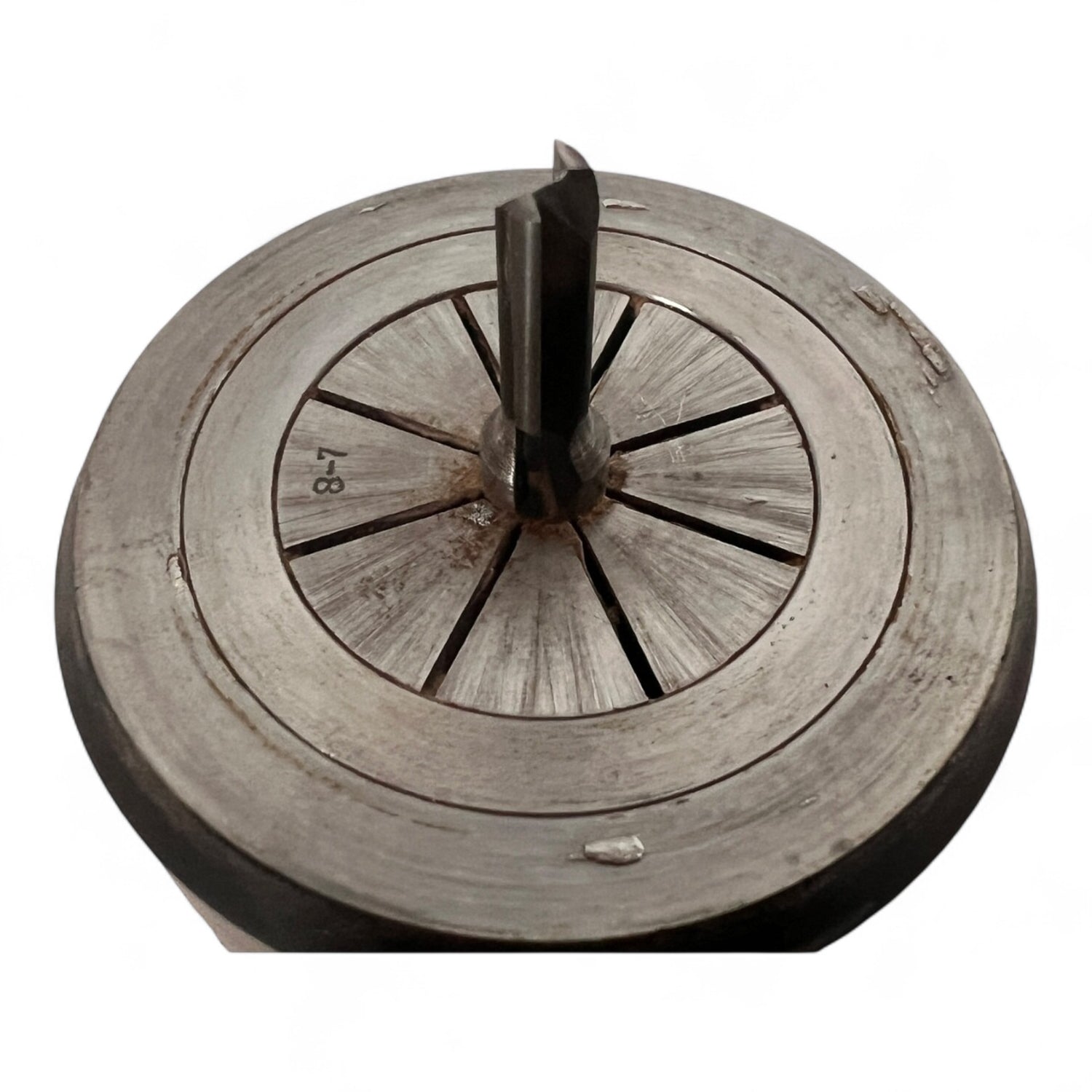

• 1x carbide end mill Ø 5 x 19 mm (clamped as shown)

Note: This is a used part from a running system. Visible signs of use are present, but it has been technically inspected and is functional.

Tariff number: 84661038

Weight: approx. 1.4 kg
