Machine parts

BIRCHER ESR3-K067 OVERHAULED like new HOMAG 4008320456 Part No. ESR3-K06702

Manufacturer:

Model:

Year of manufacture:

Machine type: Industry / Mechanical Engineering

Condition: 1 - Very Good - refurbished

Availability:

Delivery & Shipping

We offer reliable worldwide shipping for all our machines and production solutions. No matter where you are located – our logistics team ensures that your machines arrive safely and on time. With extensive experience in international logistics, we take care of all details, from packaging and transport to customs clearance. Trust us with the complete handling so that your machines are ready for use in your operation quickly and safely.



Refurbished · as new 14 Month Warranty HOMAG Spare Part

Bircher Reglomat Safety Relay – ESR3-K067 · Part No. ESR3-K06702

HOMAG Part No. 4-008-32-0456 · 230 V AC · Safety Monitoring · 2 A / 250 V AC · Protection Class F6 · fully refurbished

ESR3-K067
Model
230 V AC
Supply
2 A / 250 V
Switching Capacity
F6
Protection Class
14 Mon.
Warranty
Design Features
Fully refurbished – all wear parts and defective components renewed
14 months warranty – only the housing is considered used
Two safety outputs SR1 + SR2 – with normally open and normally closed contacts
230 V AC supply – directly operable on mains voltage

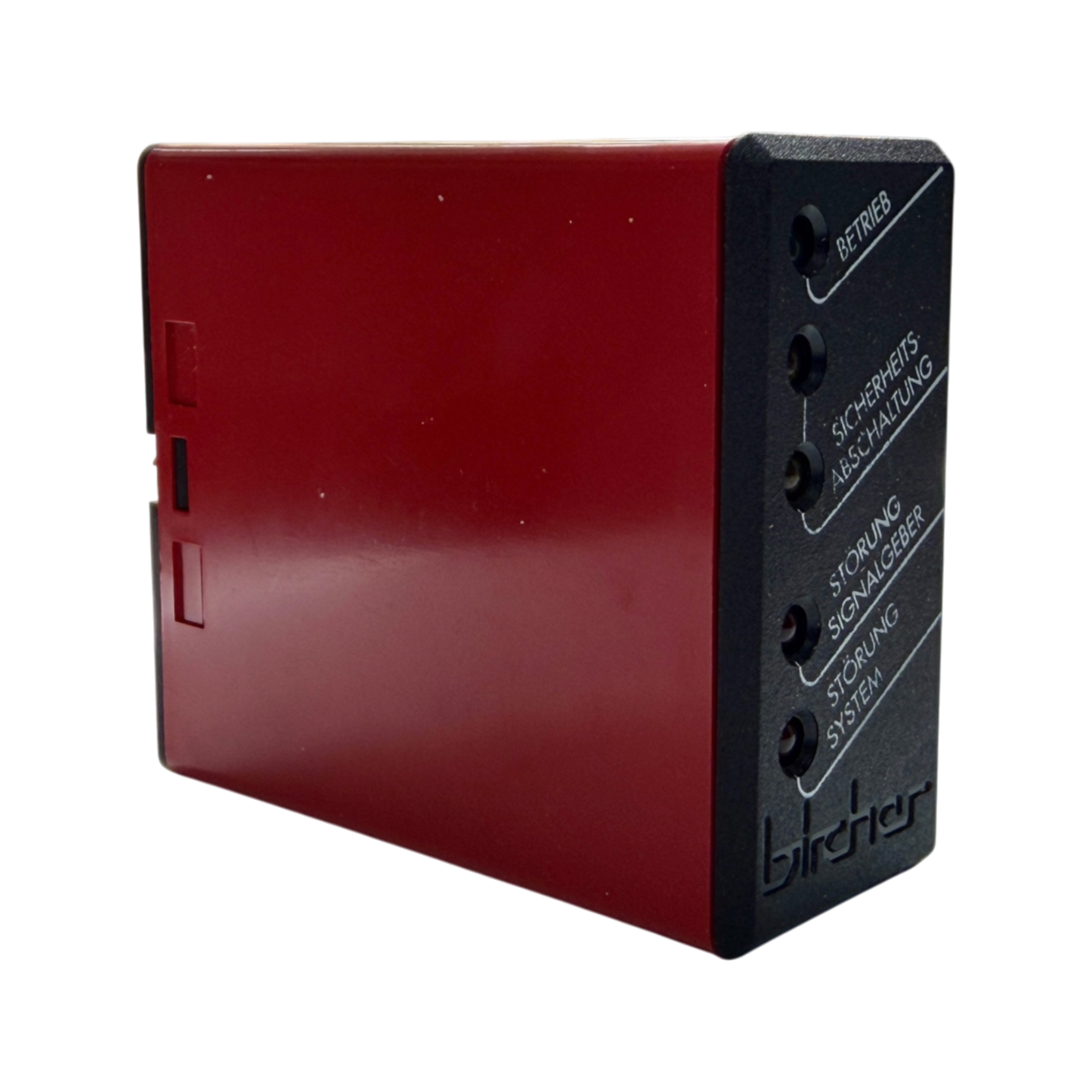

5 status LEDs on the side – operation, safety shutdown, fault directly readable
Signaling contact M (terminals 21/11) – status feedback to the machine control
Product Description

The Bircher Reglomat ESR3-K067 (part no. ESR3-K06702, HOMAG part no. 4-008-32-0456) is an industrial safety relay for monitoring and shutdown upon fault detection in HOMAG systems and comparable systems. It features two safety outputs (SR1, SR2) as well as a signaling contact (M) and is operated directly with 230 V AC.

This device has been fully refurbished: all wear parts have been renewed, defective components replaced, and the device electrically tested. Only the housing is considered used – internally, the device is as good as new. You receive a 14-month warranty on the refurbished device.

Procedure & Delivery
Stock available: You send in your old device and immediately receive a fully refurbished device from stock
No stock: We refurbish your submitted device – price reduction of 80 €, duration 1–2 weeks

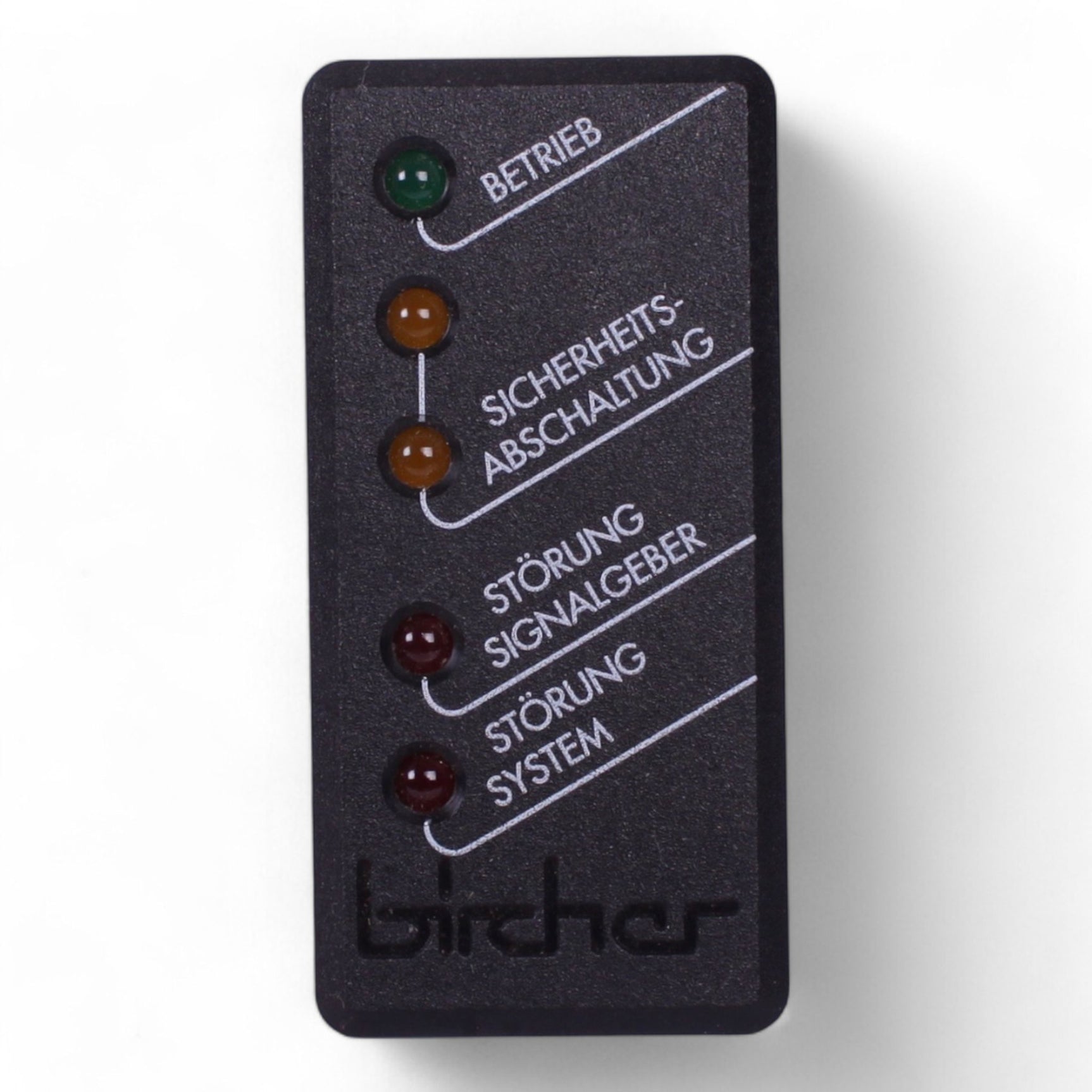

Status LEDs – Meaning of Indications
Operation Relay ready for operation – all safety circuits closed
Safety Shutdown (1) First safety channel triggered – SR1 or SR2 dropped
Safety Shutdown (2) Second safety channel triggered – redundant shutdown active
Transducer Fault Fault on the connected transducer – check sensor or switch
System Fault Internal system fault detected – check or replace device

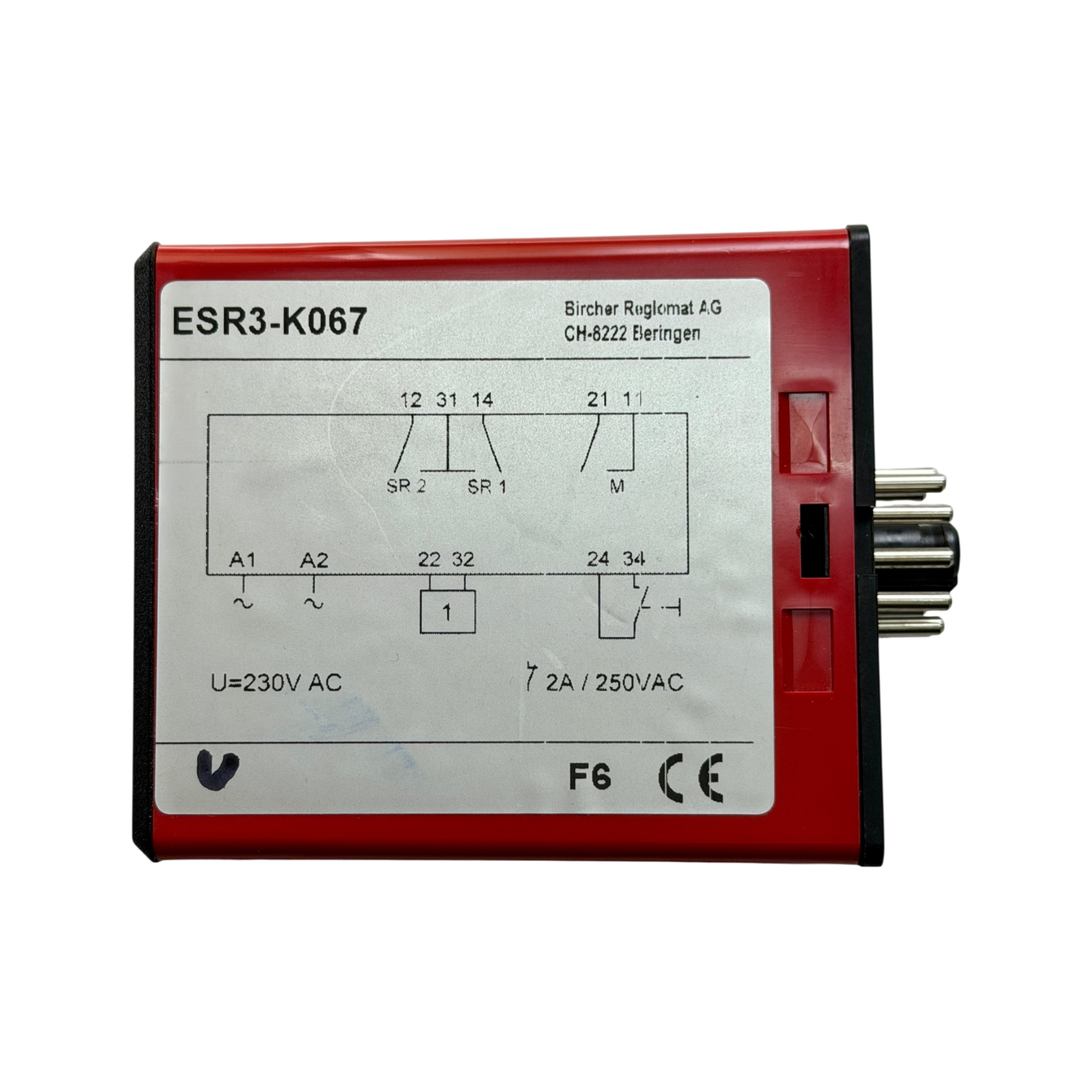

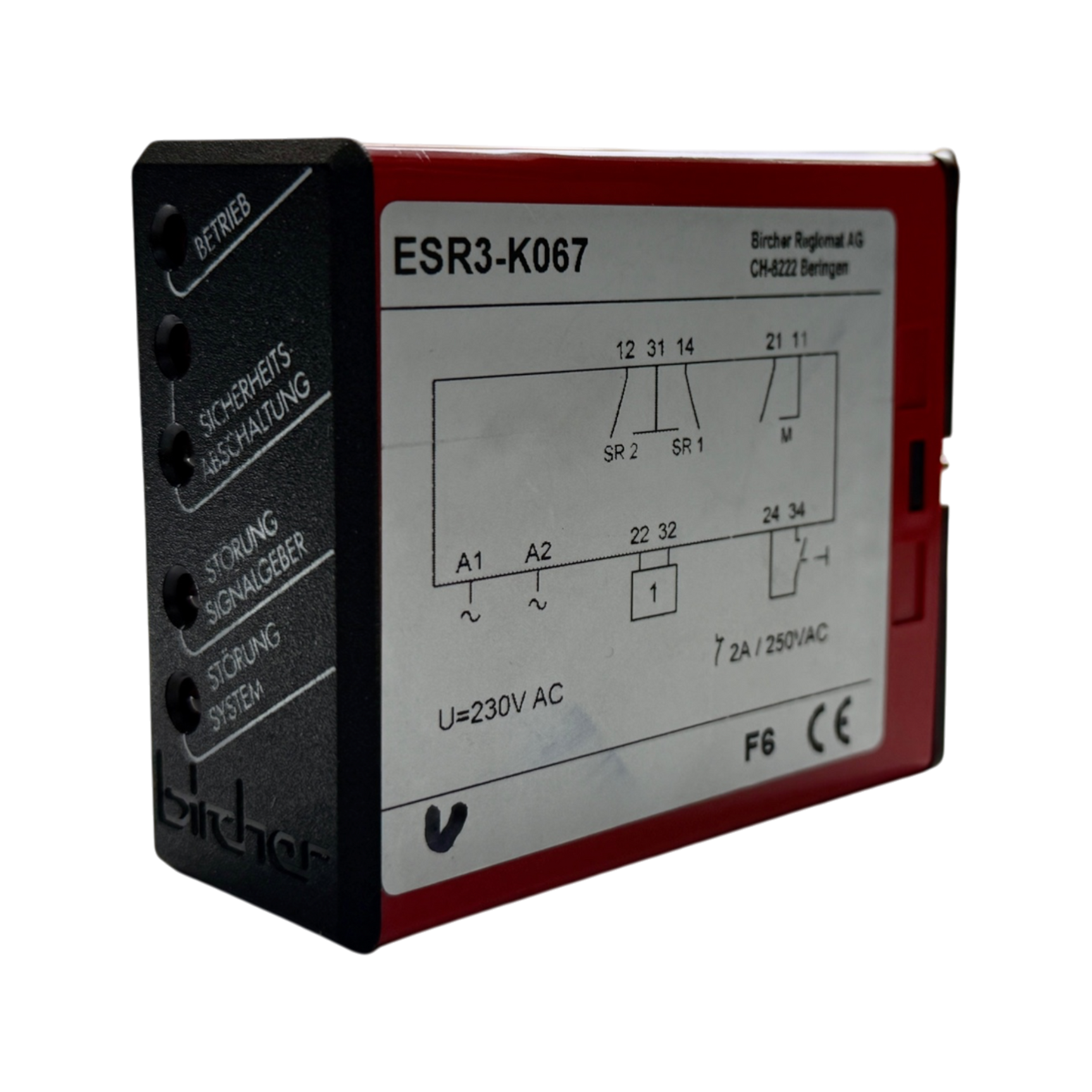

Terminal Assignment & Wiring Diagram

Read from the type plate. Please compare with the wiring diagram of your machine before installation.

Terminals A1 / A2 Supply Voltage 230 V AC (alternating current) – both terminals marked with ~
Terminals 22 / 32 RESET (Input 1) Reactivation after safety release
Terminals 24 / 34 Transducer Input Monitoring input for external transducer / protective contact
Terminals 12 / 31 / 14 (SR 2) Safety Output 2 Normally Open + Normally Closed – 2 A / 250 V AC
Terminal 14 (SR 1) Safety Output 1 Normally Closed – 2 A / 250 V AC
Terminals 21 / 11 (M) Signaling Contact Status feedback to machine control
Technical Data
Manufacturer Bircher Reglomat AG, CH-8222 Beringen
Model ESR3-K067
Part Number ESR3-K06702
HOMAG Number 4-008-32-0456
Customs Tariff Number 8536.50.70
Supply Voltage 230 V AC
Switching Capacity Outputs 2 A / 250 V AC
Safety Outputs SR1 (Term. 14) · SR2 (Term. 12/31/14)
Signaling Contact Terminals 21/11 (M)
RESET Input Terminals 22/32
Transducer Input Terminals 24/34
Protection Class F6
Approvals CE
Warranty 14 months
Condition Refurbished · as new
Areas of Application
HOMAG Systems Wood Processing Safety Monitoring Shutdown upon Fault Detection Machine Safety Industrial Automation Safety Technology
Article Information
Similar to HOMAG Spare Part No. 4-008-32-0456
Device Type Safety relay for machine guarding devices
Scope of Delivery 1× ESR3-K067 refurbished · secure shipping in padded packaging
Condition Refurbished · as new

The designation "HOMAG" and the HOMAG article number are for technical compatibility information only. Third-party brand and product names are the property of their respective owners. Before installation, the wiring diagram of the target system must be checked – the device is suitable exclusively for 230 V AC. Installation only by qualified personnel. Illustrations may differ from the scope of delivery.
