DP milling cutter 25 x 38 Z 3 on HSK 63 F collet chuck AKE

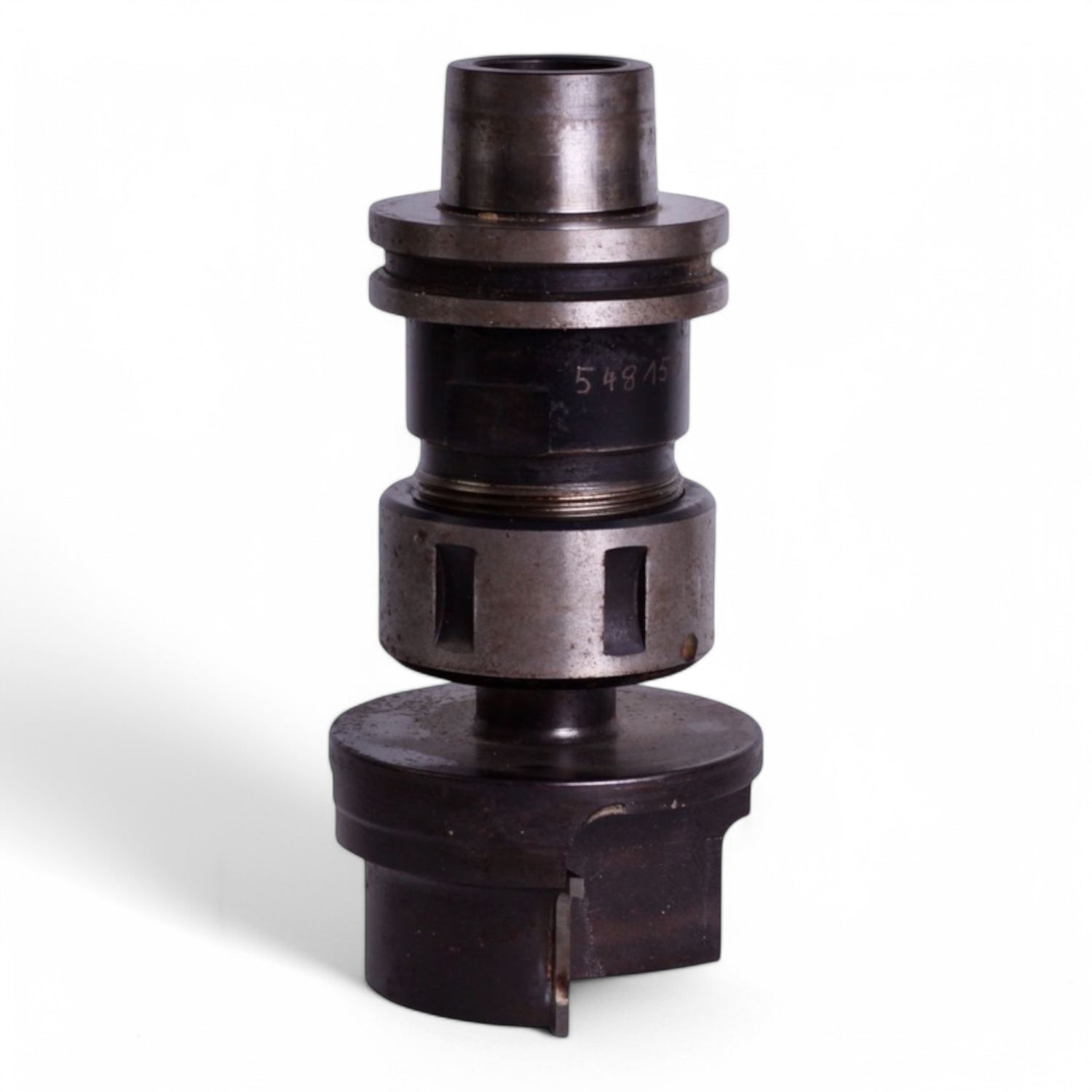

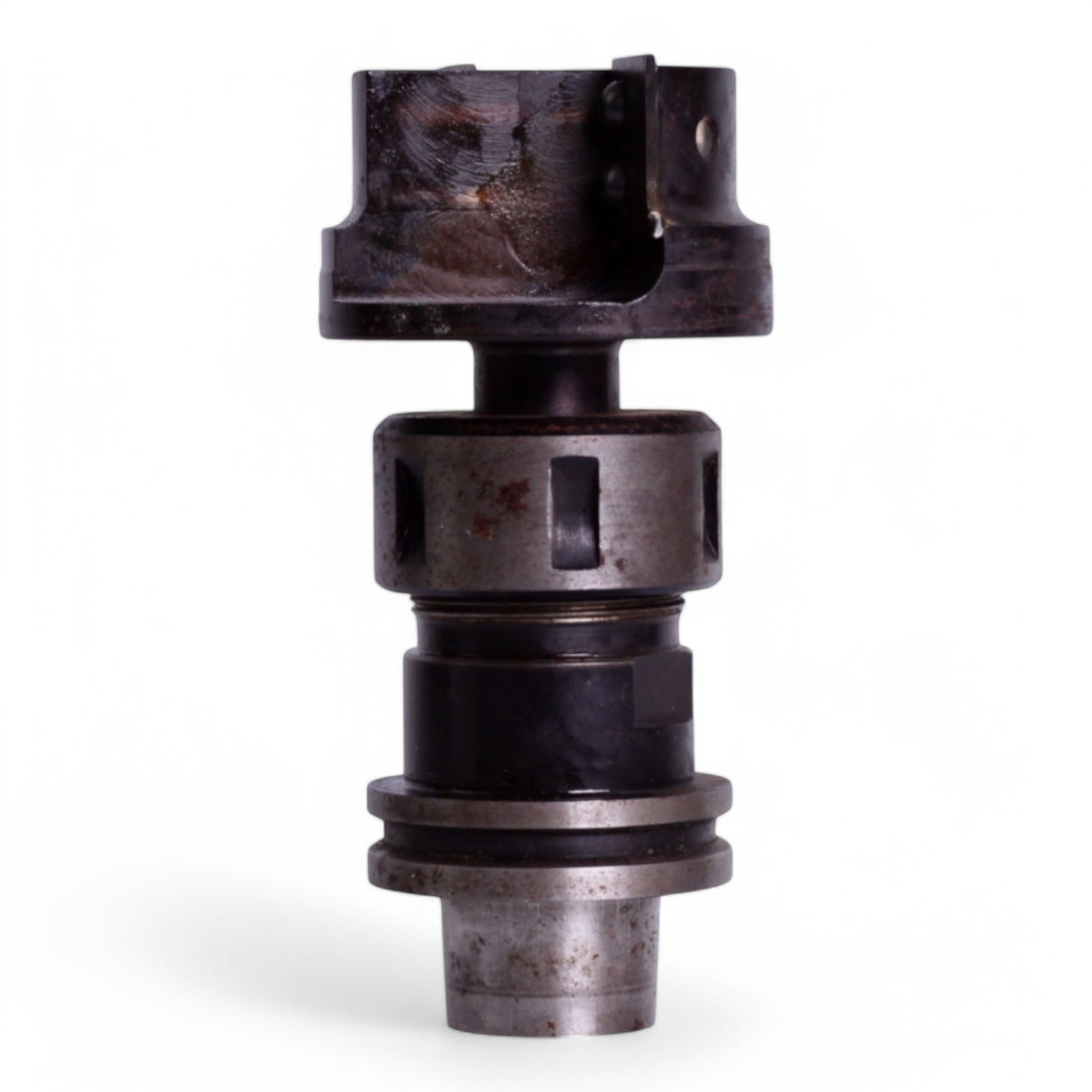

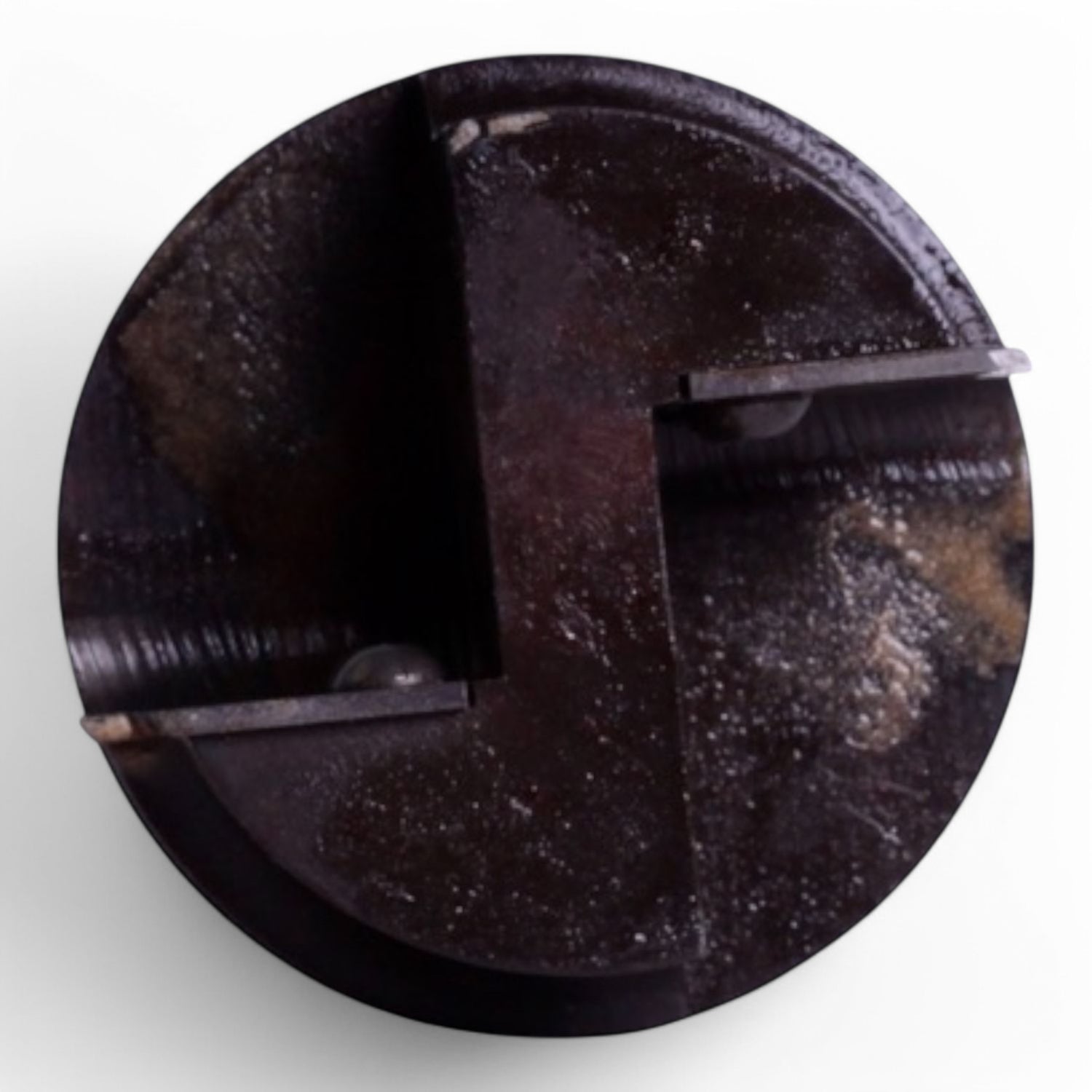

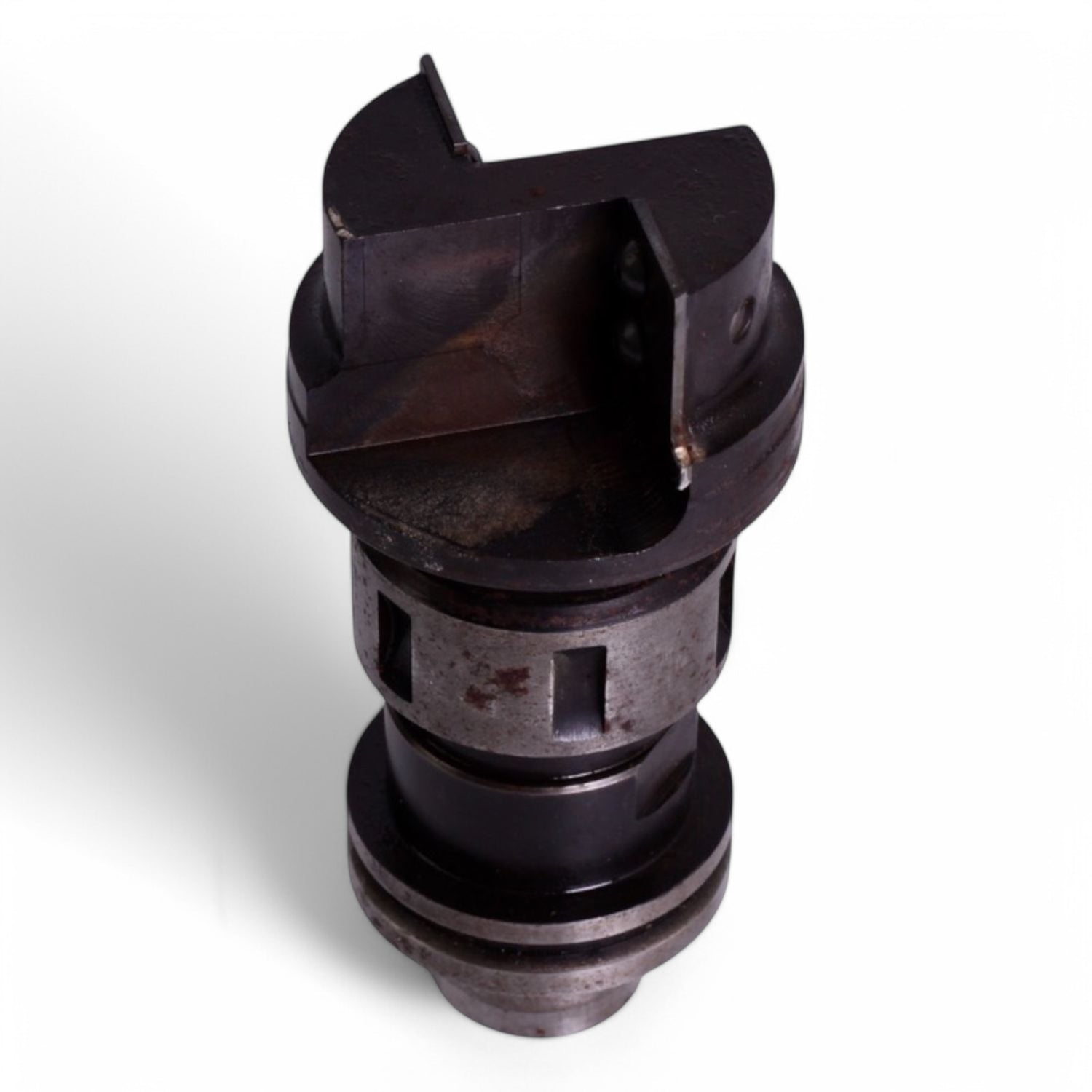

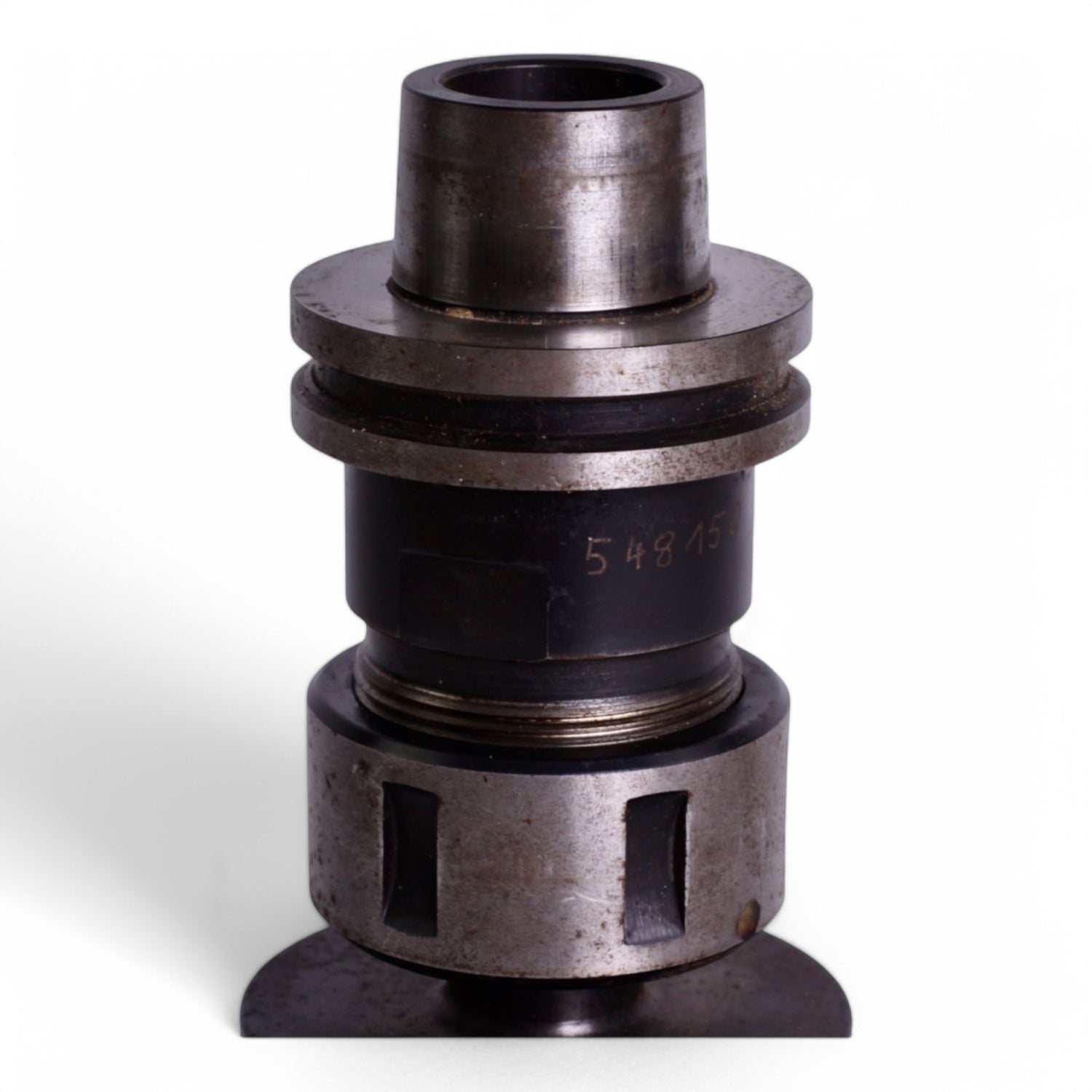

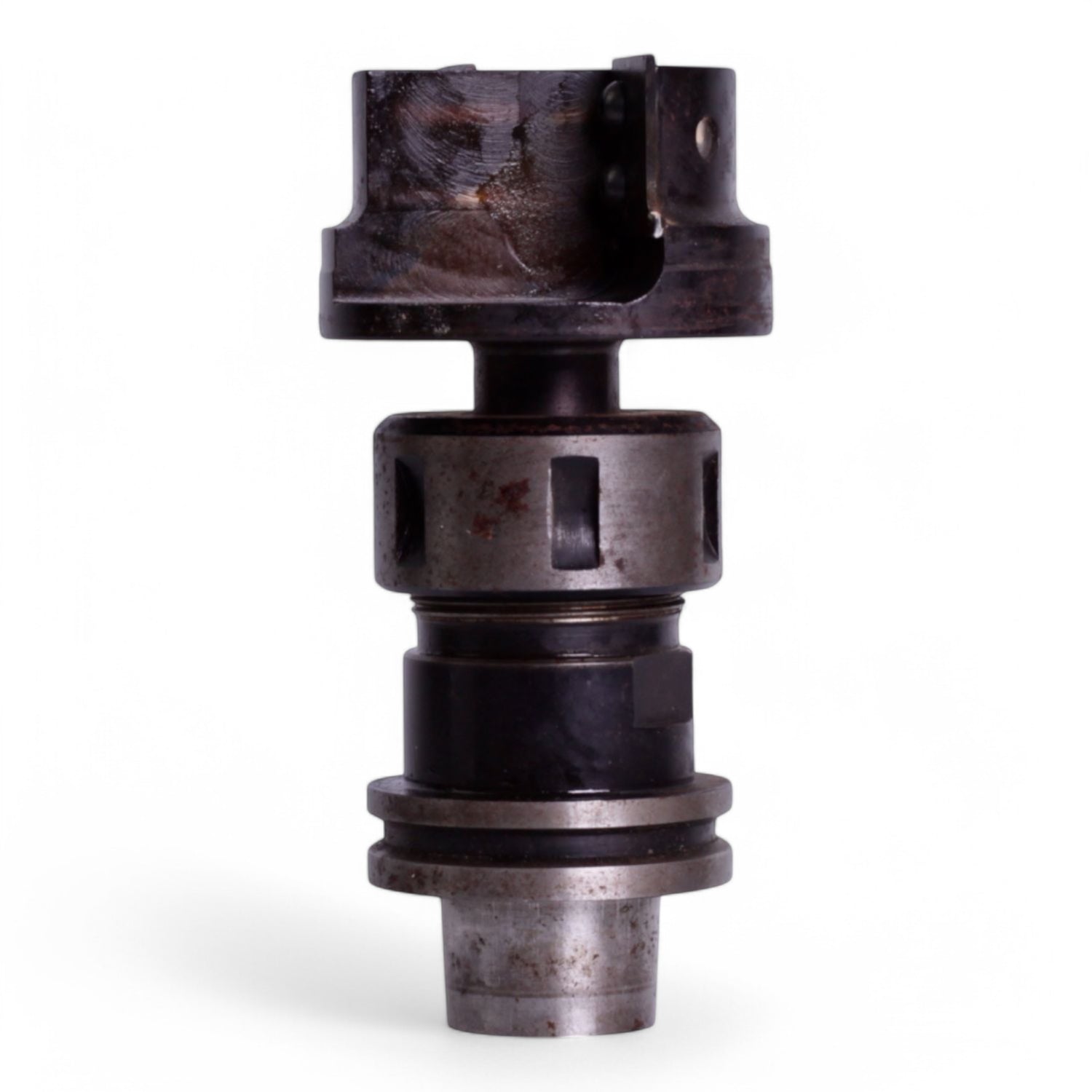

HSK 63 38 B Collet Chuck with Radius End Mill D=79.7 b=47.8 B=30.83
Product Description: The HSK 63 38 B Collet Chuck with Radius End Mill is a precise tool holder for demanding milling operations. It was specially developed to ensure highly accurate machining at high speeds up to 24,000 rpm. The included radius end mill with 25 mm shank is ideal for applications with high demands on precision and tool life.
Attention: This holder does not comply with the usual DIN standard, but with the 38 B specification. The distance from the bottom edge of the holder to the top edge of the shank is 43 mm.

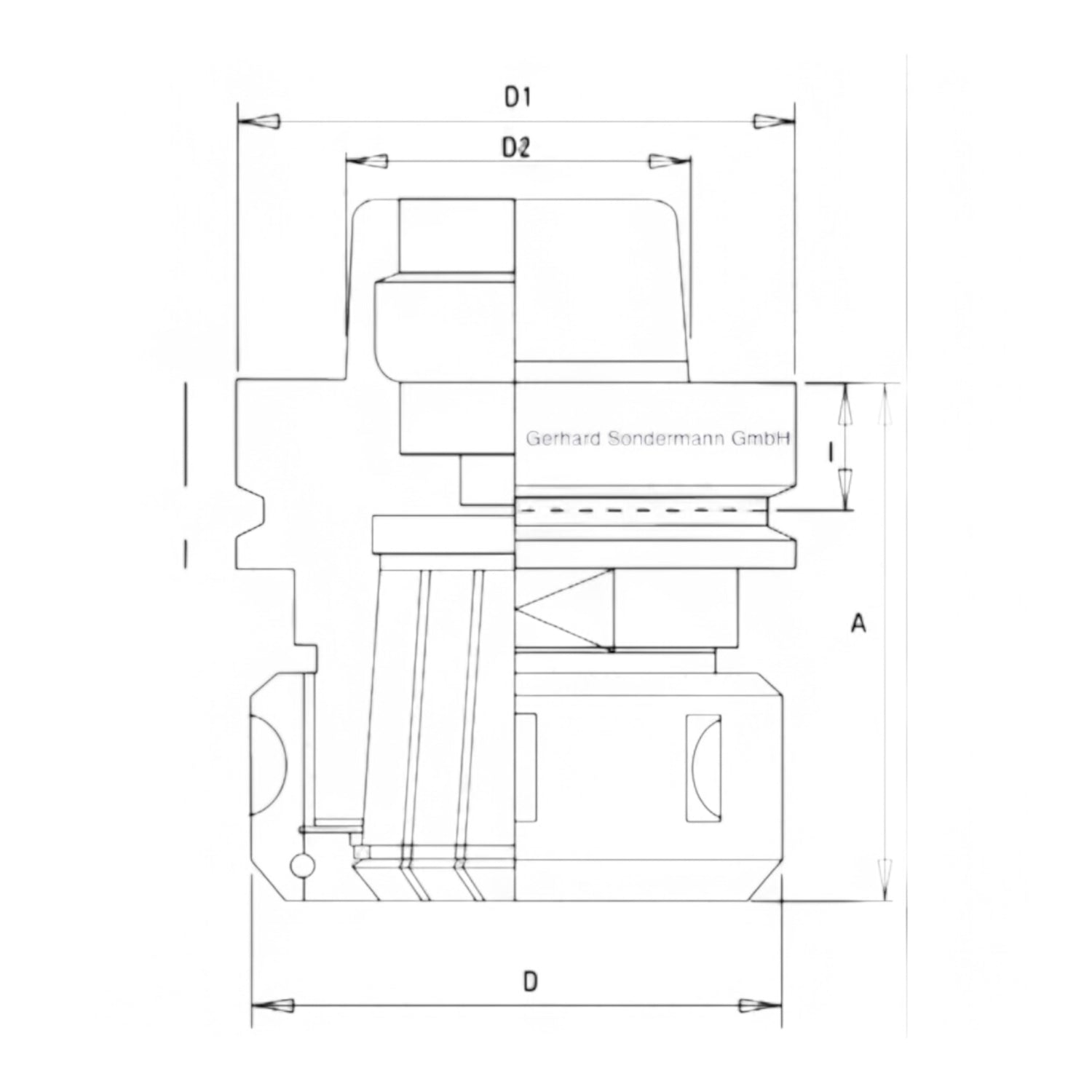

Technical Data:
-
Type: HSK 63 B
-
A (mm): 76
-
D (mm): 60
-
D1 (mm): 63
-
D2 (mm): 38
-
I (mm): 9
-
Maximum Speed: 24,000 rpm
-
Clamping Range (mm): 2 - 25
-
Material: High-quality steel
With End Mill:
-
Diameter: approx. 30 mm usable length
-
Shank: 25 mm
Scope of Delivery:
-
HSK 63 38 B Collet Chuck with Radius End Mill D=79.7 b=47.8 B=30.83
If you need further information or have any questions, please do not hesitate to contact us!
-
