Siemens SIDAC-S power supply 24 V DC 3.5 A – 4AV2302-2EB00-0A

Name: Siemens SIDAC-S power supply 24 V DC 3.5 A – 4AV2302-2EB00-0A
Brand: SIEMENS
SKU: 4AV2302-2EB00-0A
Price: 64.00 EUR
Availability: InStock

€64,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Siemens SIDAC-S power supply Used IMA / HOMAG

Siemens SIDAC-S Power Supply 4AV2302-2EB00-0A – 24 V DC / 3.5 A

Compact SIDAC-S power supply (isolating safety transformer with rectification) with switchable 115 V / 230 V primary – used in automation and CNC woodworking machines such as IMA and HOMAG. Tested, used.

24 V DC

Output voltage

3.5 A

Output current

230 / 115 V

Primary, switchable

50…60 Hz

Frequency

2.2 kg

Weight

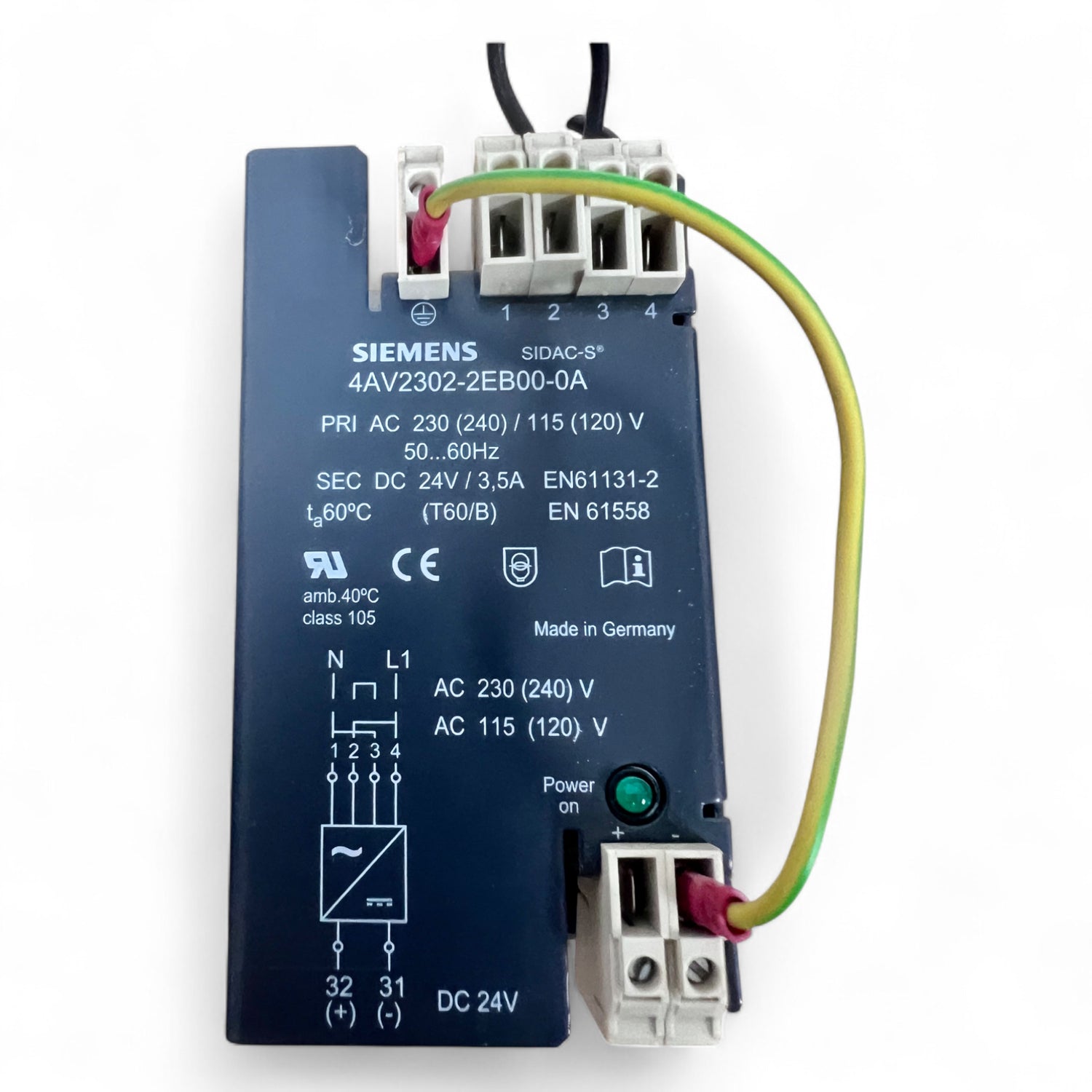

Before you order: compare the order number 4AV2302-2EB00-0A and the output rating 24 V DC / 3.5 A with the type label of your unit. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	Siemens
Order number	4AV2302-2EB00-0A
Primary voltage	AC 230 V (240 V) / 115 V (120 V), 50…60 Hz
Output	24 V DC / 3.5 A
Terminals	Primary 1–4, secondary 31 (−) / 32 (+)
Protection / insulation	Protection class I, insulation class B, ambient up to 40 °C (ta 60 °C)
Standards	EN 61131-2, EN 61558

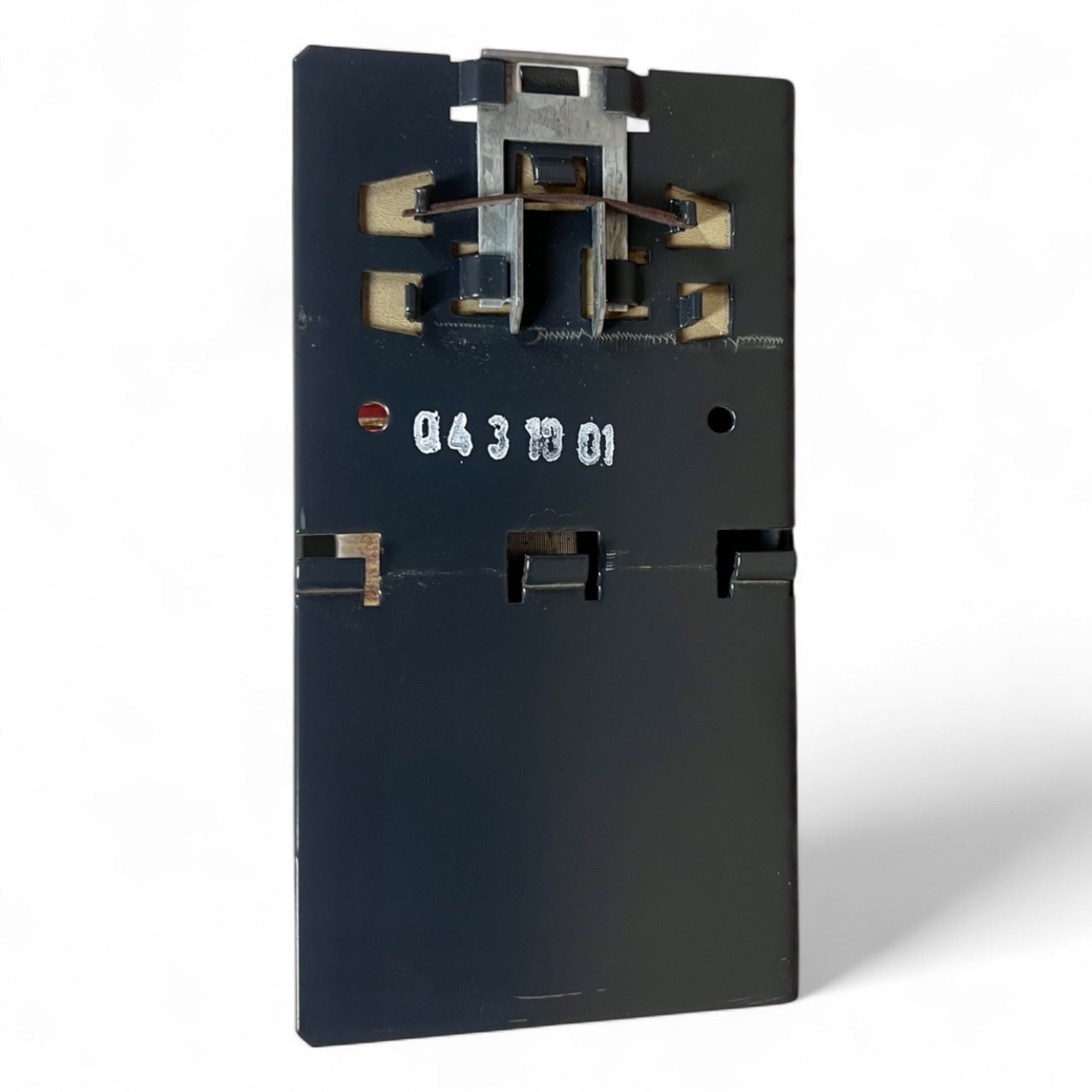

Mounting	DIN rail or mounting base plate
Indicator	Green Power-On LED
Origin	Made in Germany (produced in CZ)
Weight	2.2 kg
Condition	Used · 2 – Good

Product description

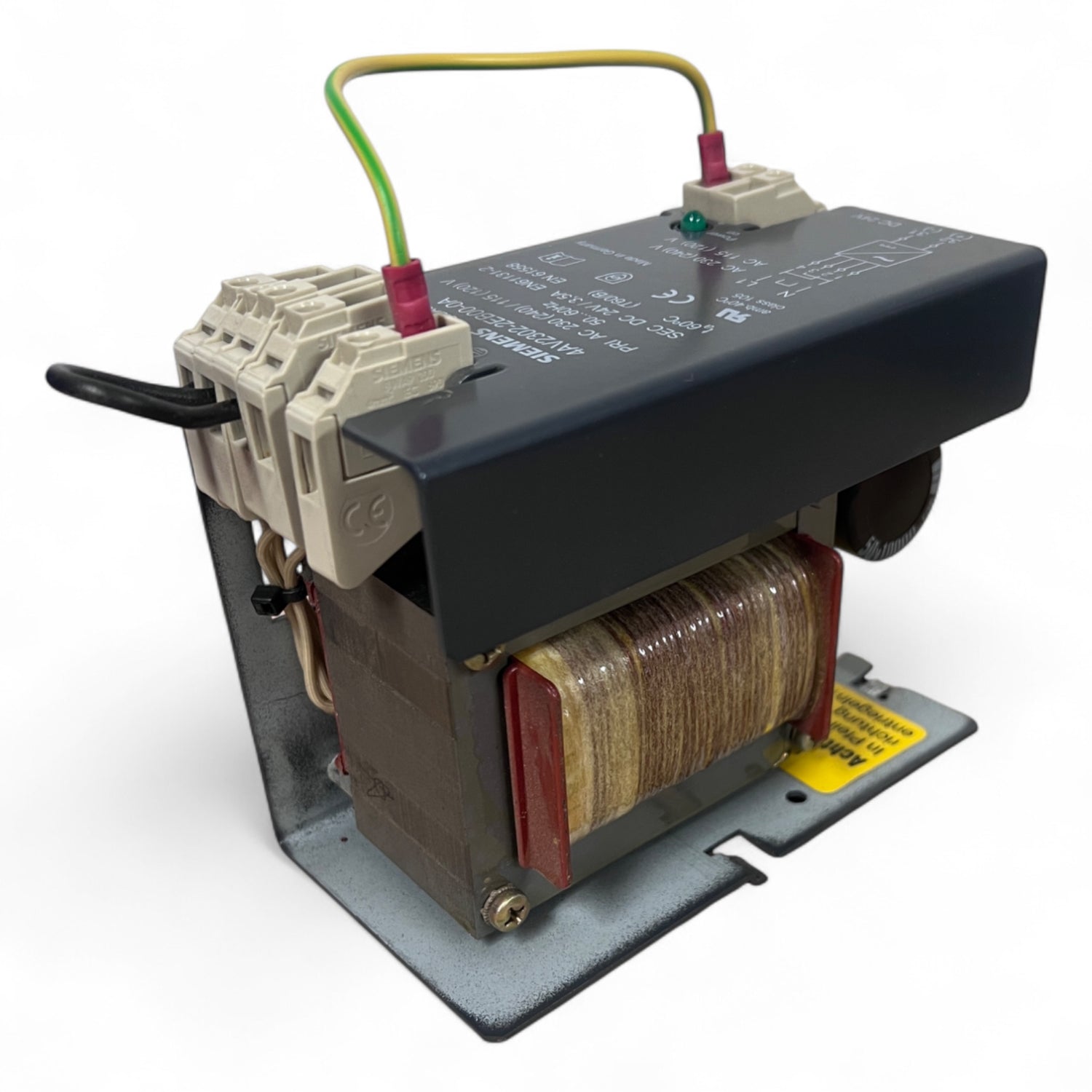

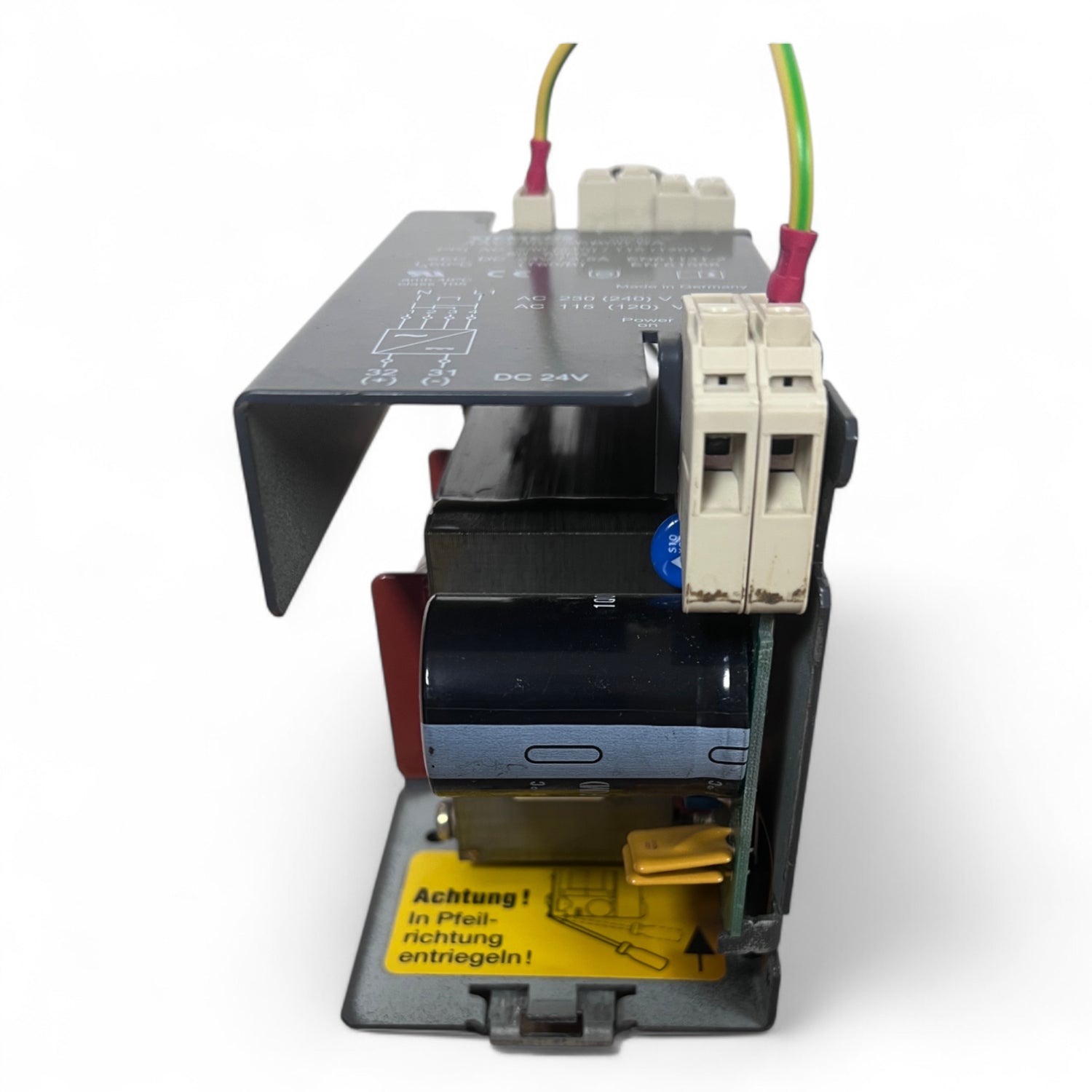

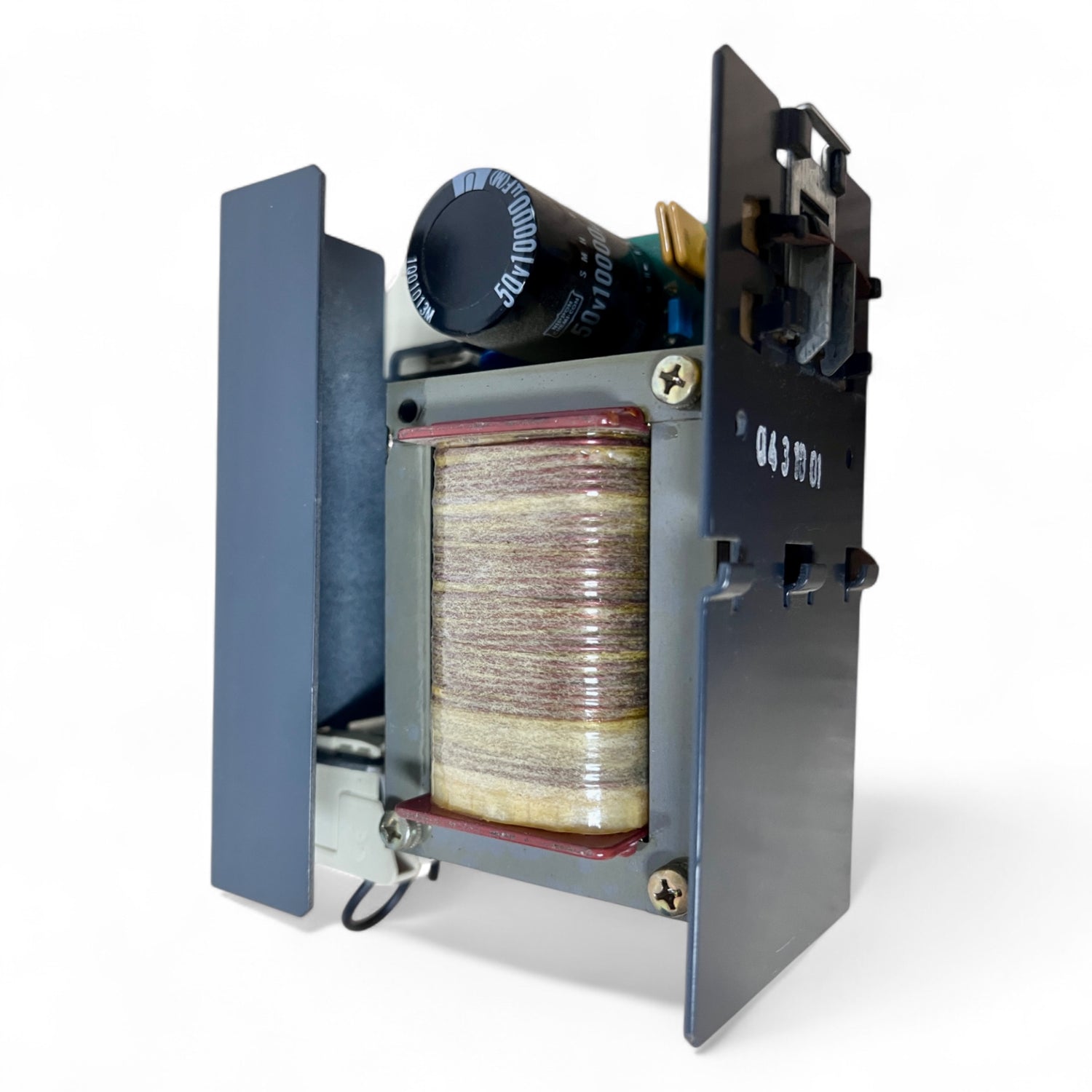

Compact Siemens SIDAC-S power supply – an isolating safety transformer with rectification – with switchable primary voltage (115 V or 230 V, 50…60 Hz). It delivers a stable 24 V DC output at 3.5 A. The sturdy build with Power-On LED, smoothing capacitor and mounting base plate in an open design allows installation on a DIN rail or mounting plate.

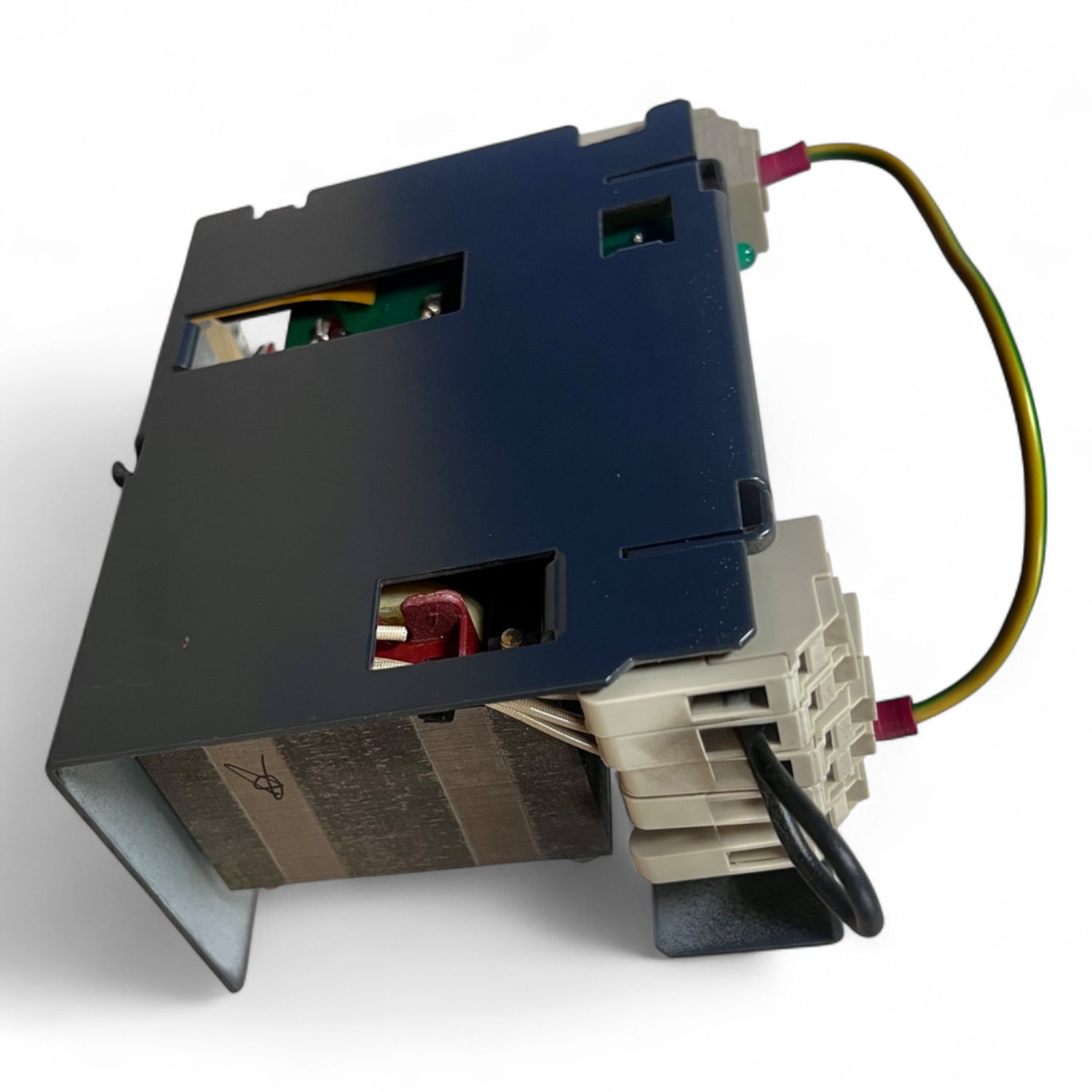

Used – tested and fully functional. Light cosmetic signs of use as shown in the photos (e.g. scratches on the cover and base plate).

Compatibility & applications

Reliable supply of control components, PLC peripherals, sensors/actuators, relays and valves in control-cabinet and machine building. Well suited for automation and production machines, especially CNC woodworking machines by IMA or HOMAG, e.g. IMA models 810, 610, 410.

IMA 810IMA 610IMA 410HOMAG24 V DC control supply

Scope of delivery

1 × Siemens SIDAC-S power supply 4AV2302-2EB00-0A, as pictured.
