Main spindle OMLAT IMA 12 KW

The OMLAT IMA main spindle is characterized by precise technical features that underline its performance and reliability. The most important features are presented in a structured manner below:

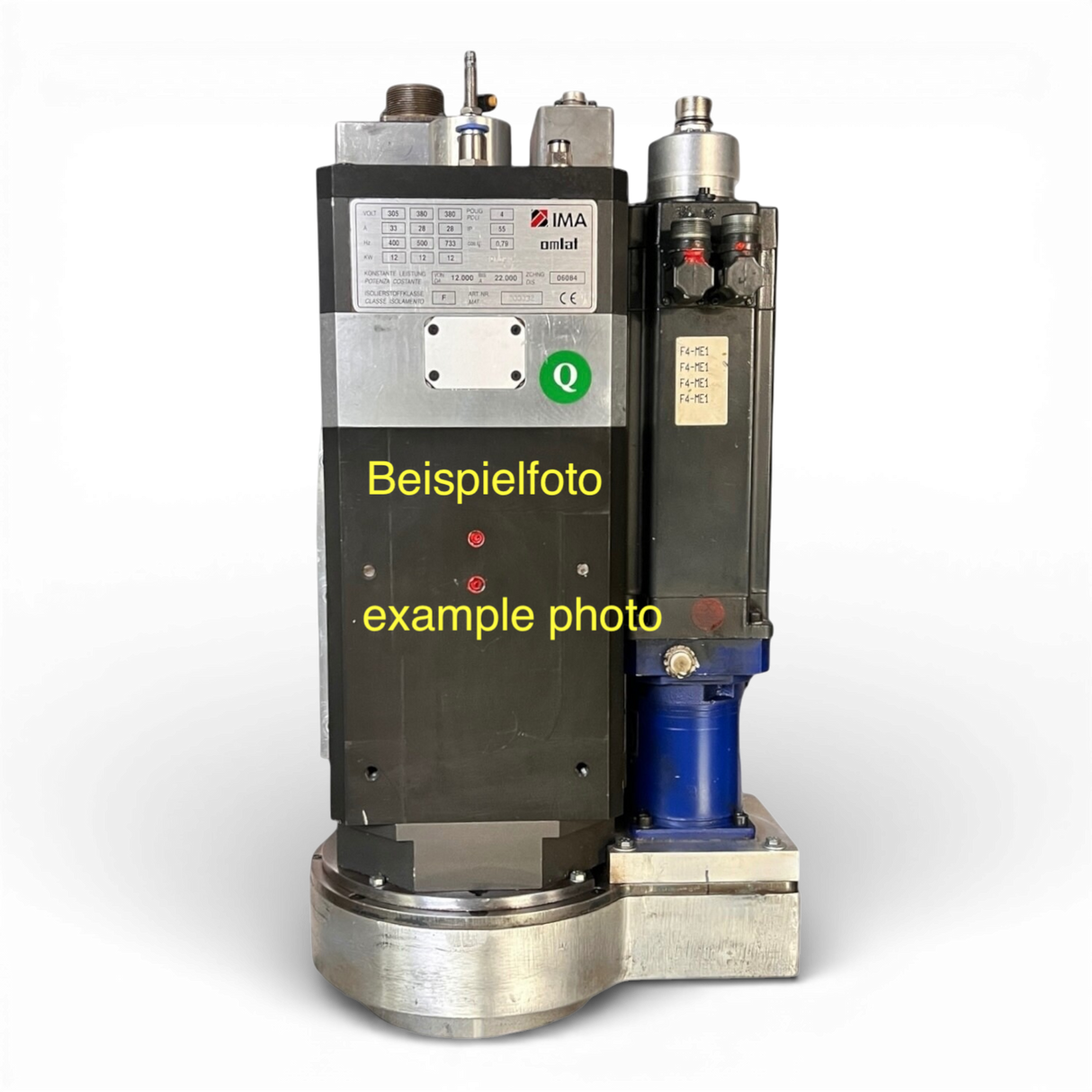

Scope of delivery: complete with pictured C axis (W-axis)

If you do not want this, please click on the other version

1. Tool holder:

• Type: HSK F63, similar to DIN 69893
• Cone diameter: 38 mm

2. Tool feed:

• Automatically controlled
• Pull-in force: 11000 N

3. Tool weight:

• Maximum weight: 6 kg

4. Direction of rotation:

• Right/left rotation, programmable

5. Speed ​​range:

• Continuously adjustable from 1500 to 22000 revolutions per minute
• Programmable for individual requirements

6. Drive:

• Frequency-controlled three-phase motor

7. Drive power:

• 12 KW in S-1 operation

8. Spindle lubrication:

• One-time factory grease lubrication for efficient maintenance

9. Spindle cooling:

• Water cooling to maintain optimal operating temperatures

10. Consistent performance:

• Range from 12,000 to 22,000 revolutions per minute

Spindle Condition: Used but Tested The main spindle has been removed from a running system and has undergone a thorough inspection. As an alternative to often unavailable new spindles, it ensures immediate use and optimum reliability. This used spindle offers a cost-effective solution without compromising on performance.

OMLAT's industrial success story began in 1955 with a focus on precision mechanics. Due to increasing demand, the company established the Comett machine factory in 1972. Today, with modern machining centers and 70 years of experience, the OMLAT Group is a world leader in the production of spindles and electrospindles. Comett's autonomy strengthens constructive precision. OMLAT products, with purely Italian origins, increase the value of machine tools and woodworking machines and shape the future of industry.

The electrospindle in a woodworking machine acts as a rotating shaft whose main purpose is to rotate the tool and thus enable the machining process. The design of this system is aimed at ensuring minimal deformation while maximizing the cutting capacity.

The electrospindle is the central element of the woodworking machine and contributes significantly to the precision and processing capacity. In terms of its function, the electrospindle can be divided into two main categories: according to the type of construction and use.

The electric spindle described is integrated into a wide range of woodworking machines from renowned manufacturers such as IMA and Homag. These leading companies rely on innovative technologies, including high-performance electric spindles, to ensure precise and efficient woodworking. The use of such electric spindles makes a significant contribution to optimizing processing quality and increasing productivity in woodworking processes.
