Indramat DDS02.1-W100-D Digital AC Servo Controller 100 A – used
Indramat DDS02.1-W100-D Digital AC Servo Controller 100 A
DIAX02 series drive controller for Indramat AC servo motors with digital feedback. Genuine Bosch Rexroth/Indramat, in stock – two versions available.
| Manufacturer | Indramat (Bosch Rexroth) |
| Designation | Digital A.C. Servo Controller (DIAX02 basic unit) |
| Type | DDS02.1-W100-D |
| Rated current | 100 A |
| Motor feedback | digital (“-D” version) |
| Input | DC 300 V (DC bus L+ / L−) |
| Connections | motor A1 / A2 / A3, DC bus L+ / L−, X1–X6 |

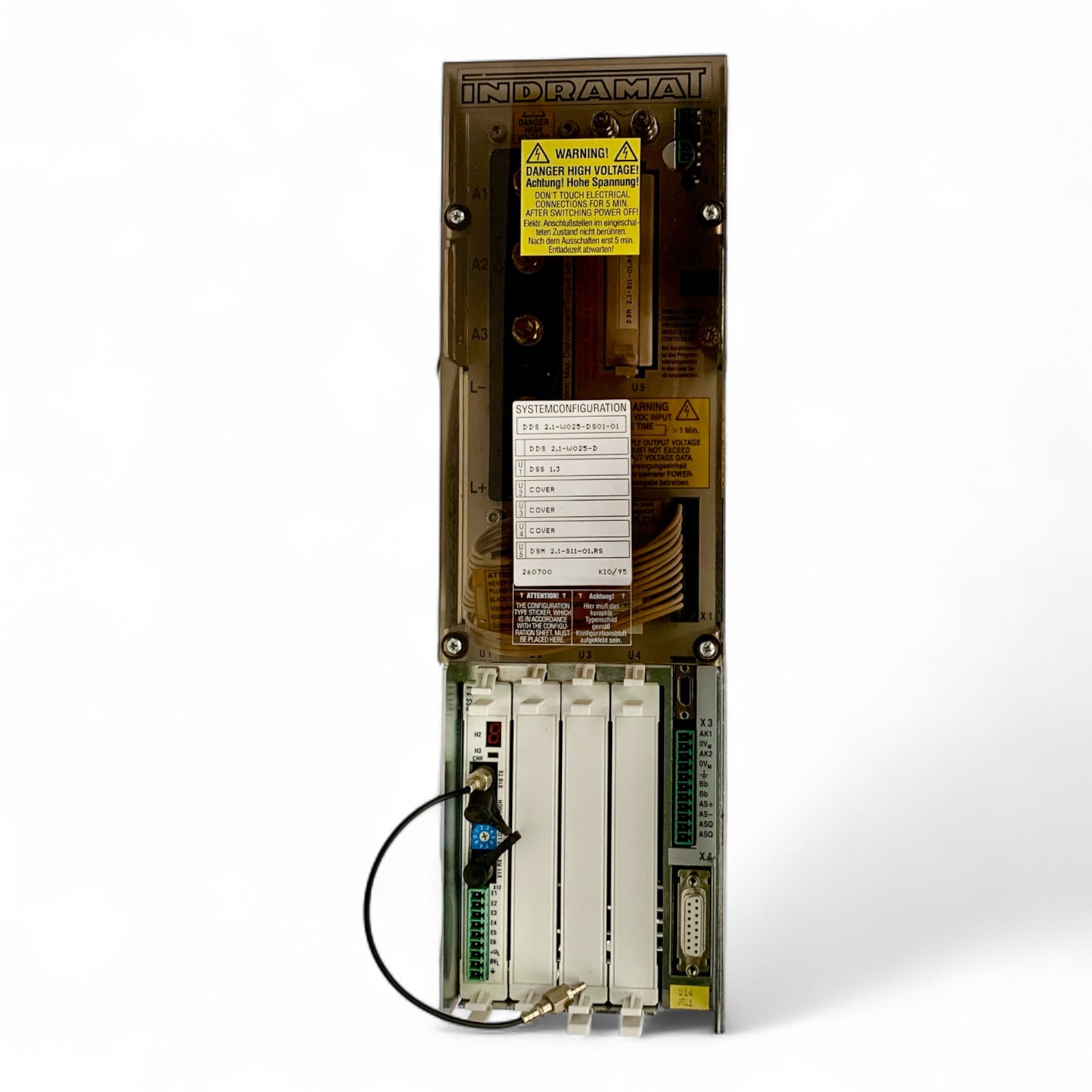

| Display / operation | diagnostic display H1, push button S1 |
| Approvals | UL listed, CE |
| Discharge time | 5 min (warning label on unit) |
| Shipping weight | approx. 10 kg |
| Condition | Used · 2 – Good |
Available versions
| DA01-00 · SN 263502-18593 | Configuration DDS02.1-W100-DA01-00, index A00, code ES18010089 / 06W12. Slot U1: DAE 1.1, U2–U4: covers, U5: firmware module DSM 2.1-E11-01.RS (plugged in, included). Exchange unit from a repair shop, installed 01/2018, removed from WEEKE BP 155. |

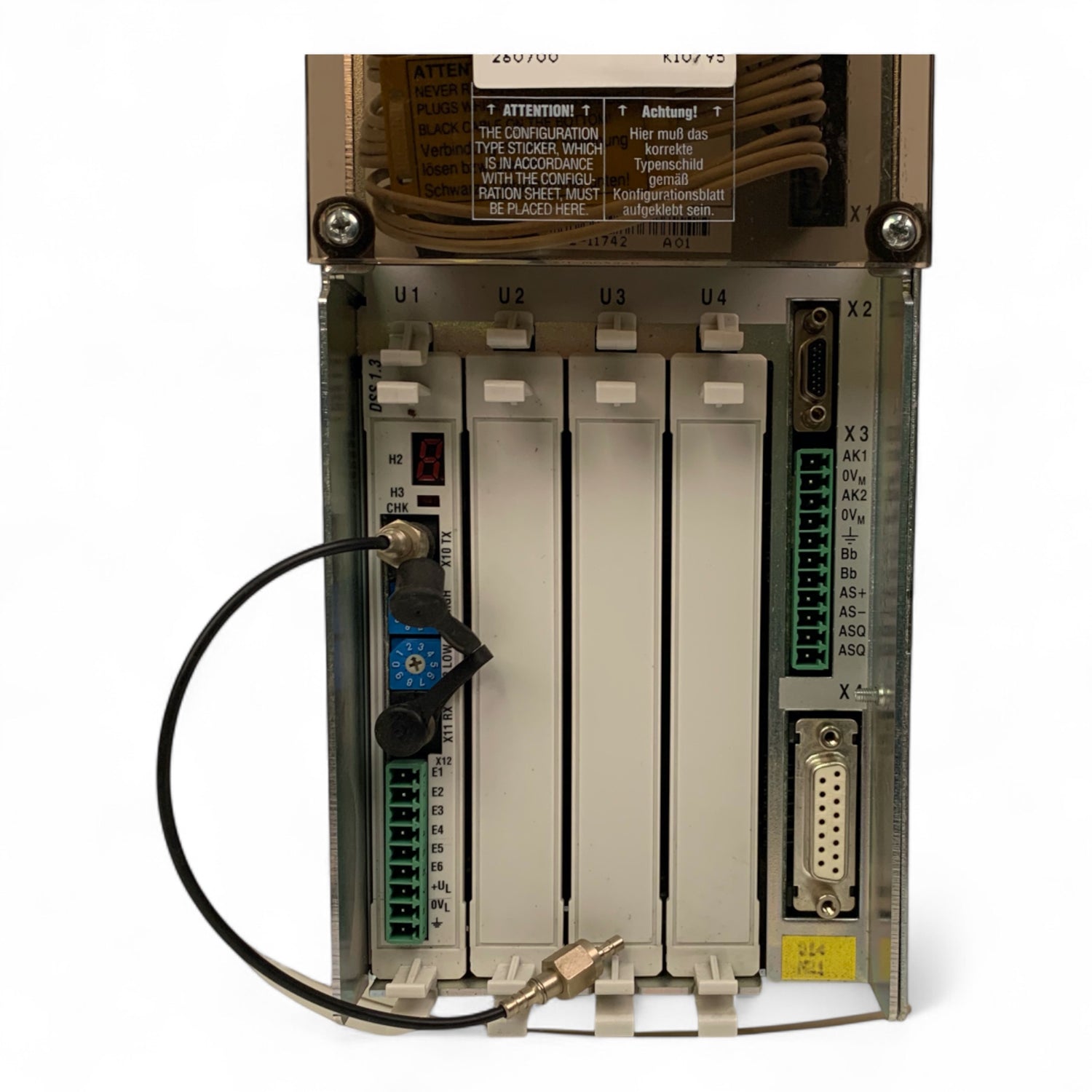

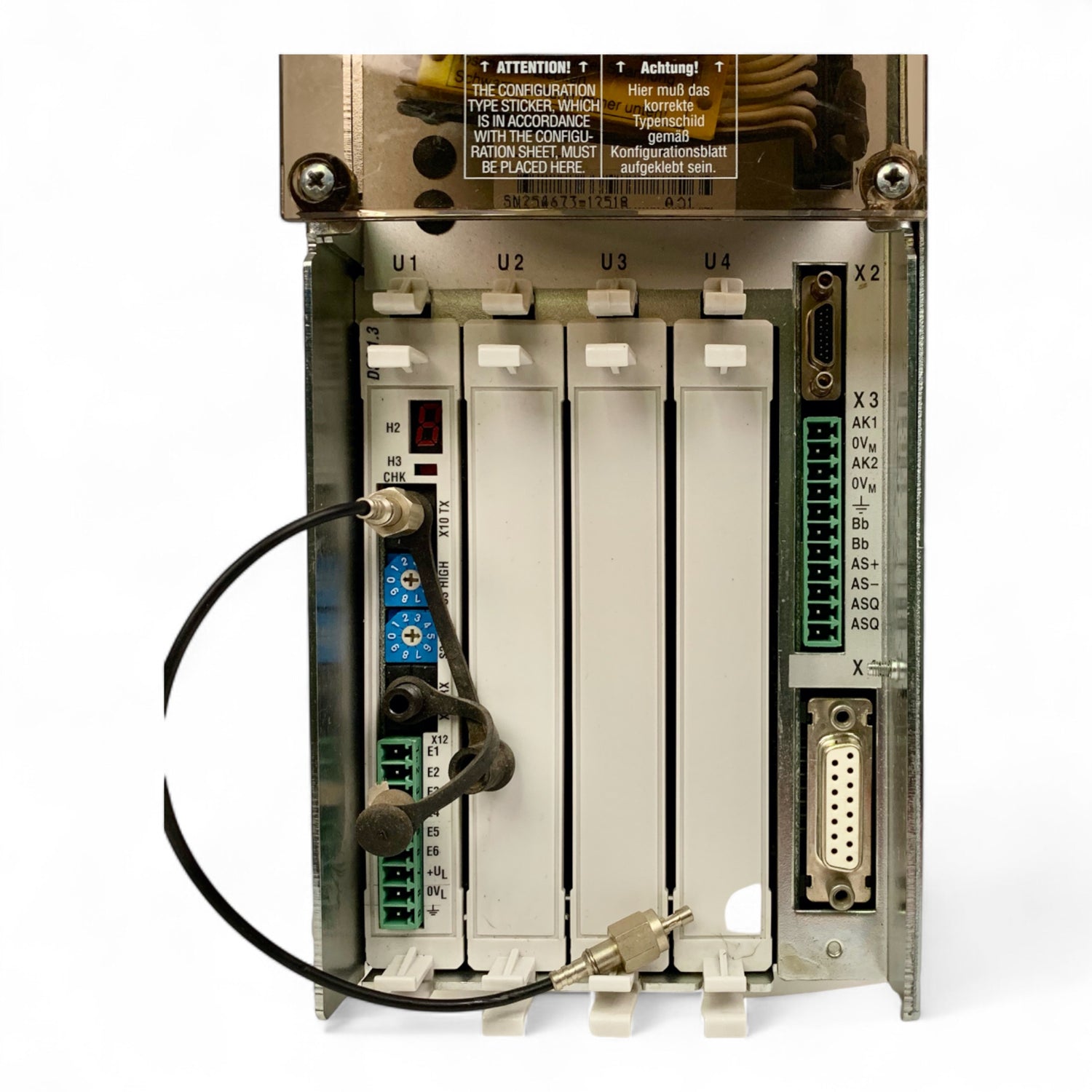

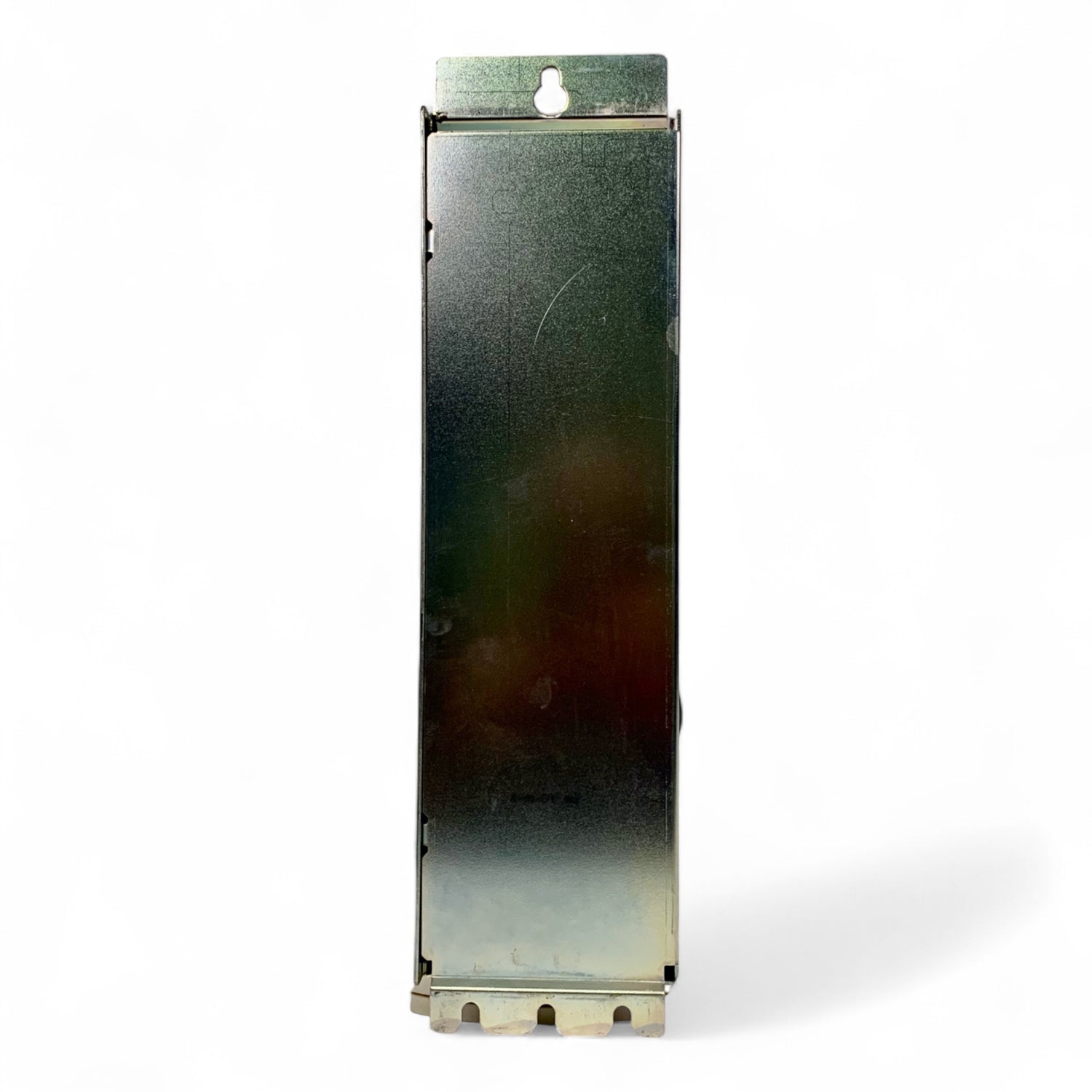

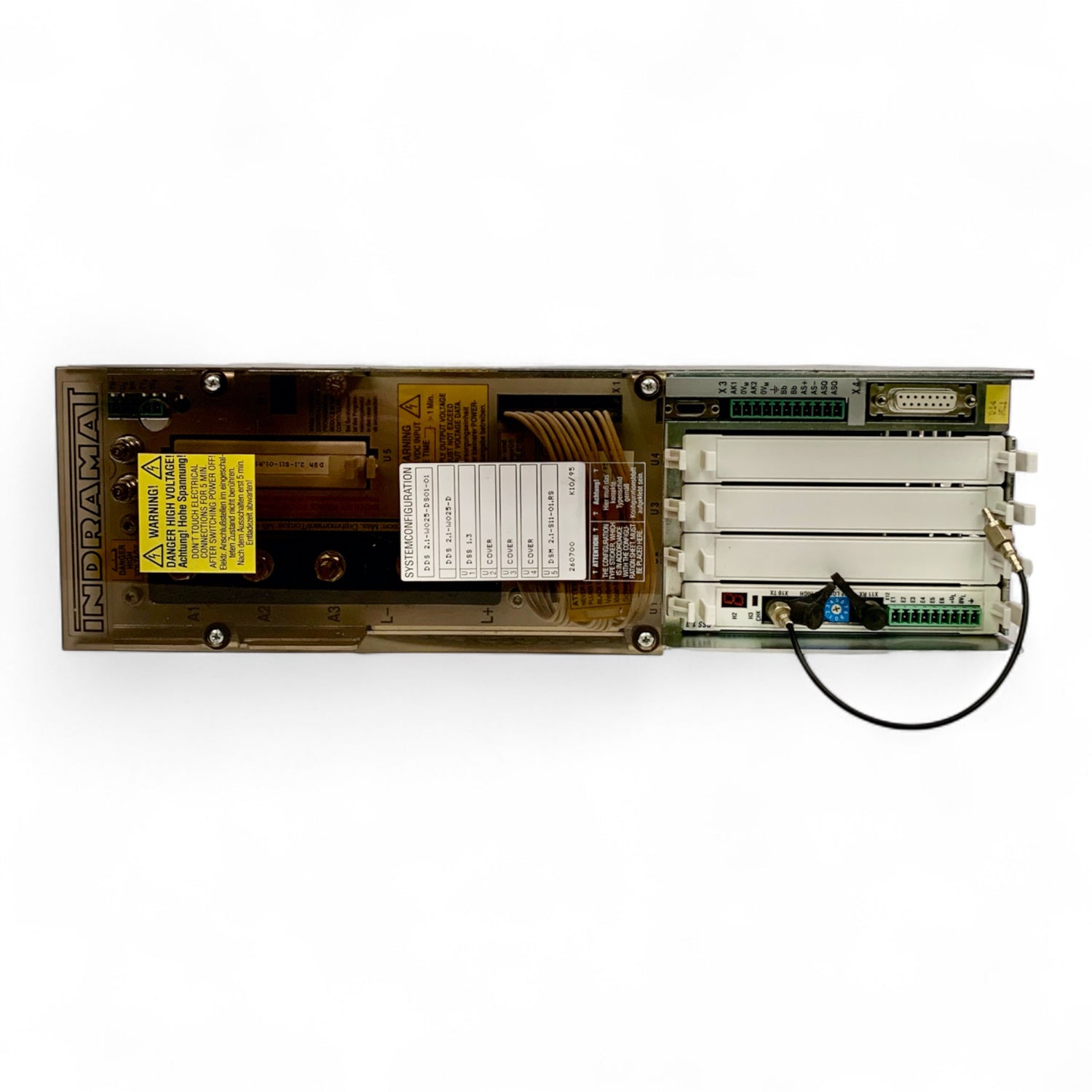

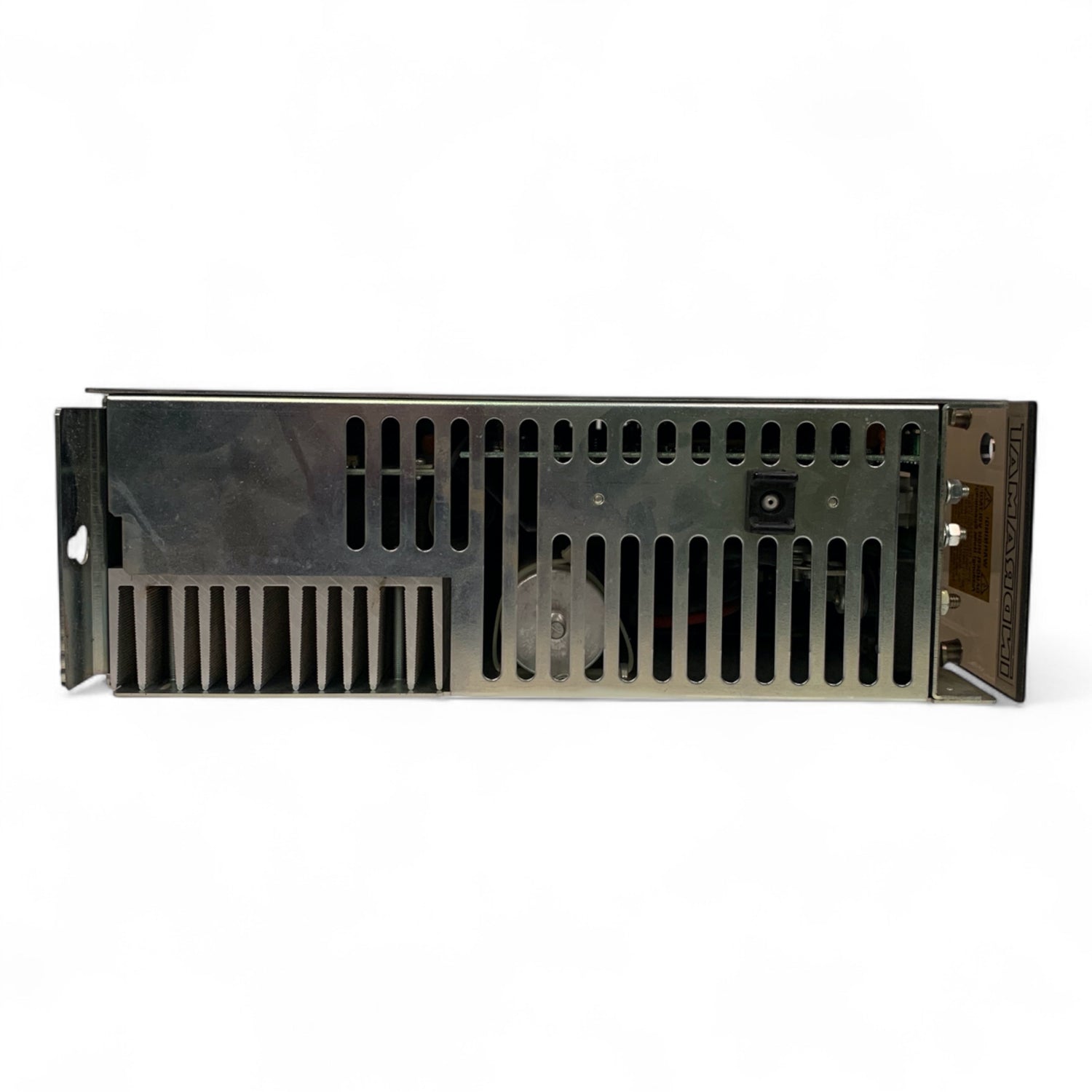

| DS01-01-FW · SN 264751-15/1B | Configuration DDS 2.1-W100-DS01-01-FW with configuration card fitted, supplied with modules as shown. |
Product description
The DDS02.1-W100-D is a digital drive controller from the Indramat DIAX02 series. It is supplied from the common 300 V DC bus of the drive system and controls AC servo motors (e.g. Indramat MDD/MKD) with digital feedback. Slots U1–U5 take the interface and firmware modules that adapt the unit to its axis.
With a rated current of 100 A, the W100 is designed for powerful main and feed axes. As an original unit, it replaces a faulty controller 1:1 – no changes to wiring or control required.
Inspected: Removed from a running machine and inspected in-house (visual inspection, completeness check, verification of the type-plate data). Used part in clean condition with at most light, purely cosmetic marks. You receive exactly the item shown.
Compatibility & applications
Origin & machines: Unit DA01-00 (SN 263502-18593) comes from a WEEKE BP 155 machining center. The same Indramat drive technology is usually also used in the HOMAG BAZ 32 and BOF 32 and their predecessor models. Please compare the type designation on the type plate of your unit – we will be glad to check the fit with your machine before shipping.
For Indramat DIAX02 drive systems with 300 V DC bus (supplied e.g. by TVD/KDV supply modules). Typically used in CNC machining centers, including HOMAG and WEEKE machines.
Scope of delivery
1 × DDS02.1-W100-D drive controller in the selected version with front cover, modules as described in the version table.
Shipping to the USA & worldwide
In stock in Germany and shipped via FedEx or UPS, usually on the day of your order. Transit to the US typically takes 2–5 business days with full tracking. Import duties and fees follow the US regulations in force on the import date and are settled by the importer. More background on availability and pricing of legacy CNC electronics: read our guide for US customers.
-
