NUM IMA | SKU: 0207204139 A

IMA NUM CNC Operator Panel QWERTY 14" – 0207204139 A, for IMA 310 / 410 / 610 / 810 / 480 / 680

Name: IMA NUM CNC Operator Panel QWERTY 14" – 0207204139 A, for IMA 310 / 410 / 610 / 810 / 480 / 680
Brand: NUM IMA
SKU: 0207204139 A
Price: 632.00 EUR
Availability: InStock

€632,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

NUM CNC operator panel Used IMA

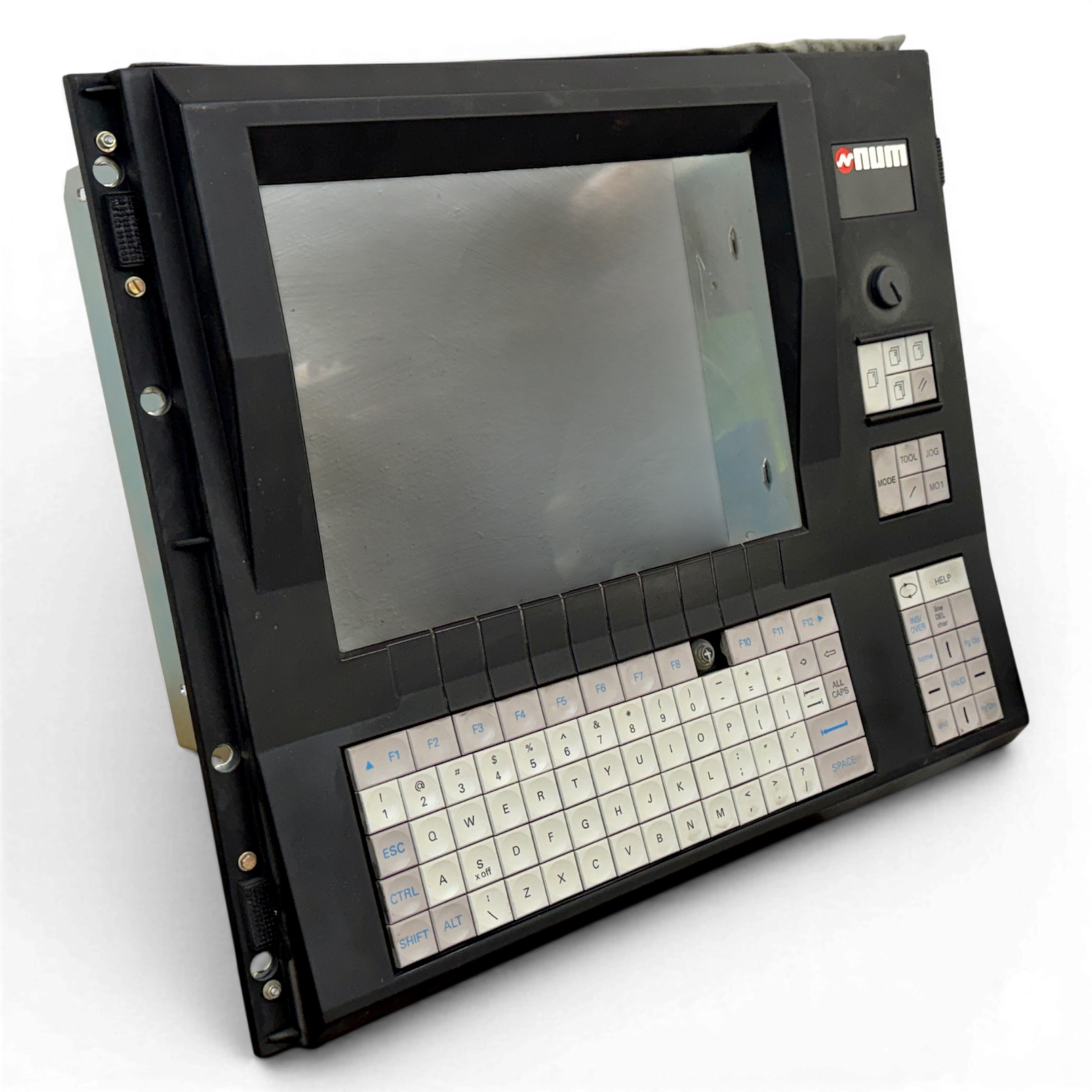

IMA NUM CNC Operator Panel with QWERTY Keyboard 14" – Part No. 0207204139 A

Original NUM operator panel with integrated QWERTY keyboard for CNC controls, built 24.03.1999 – for IMA 310, 410, 610, 810, 480 and 680 CNC machining centers.

0207204139 A

Part No.

NUM S.A.

Manufacturer

QWERTY 14"

Keyboard type

24.03.1999

Date built

IMA CNC

Compatibility

Before you order: compare the part number 0207204139 A and the rear connectors with your installed panel. Note: the F9 key is missing on this unit. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	NUM S.A. (NUM Group Schneider)
Part No.	0207204139 A

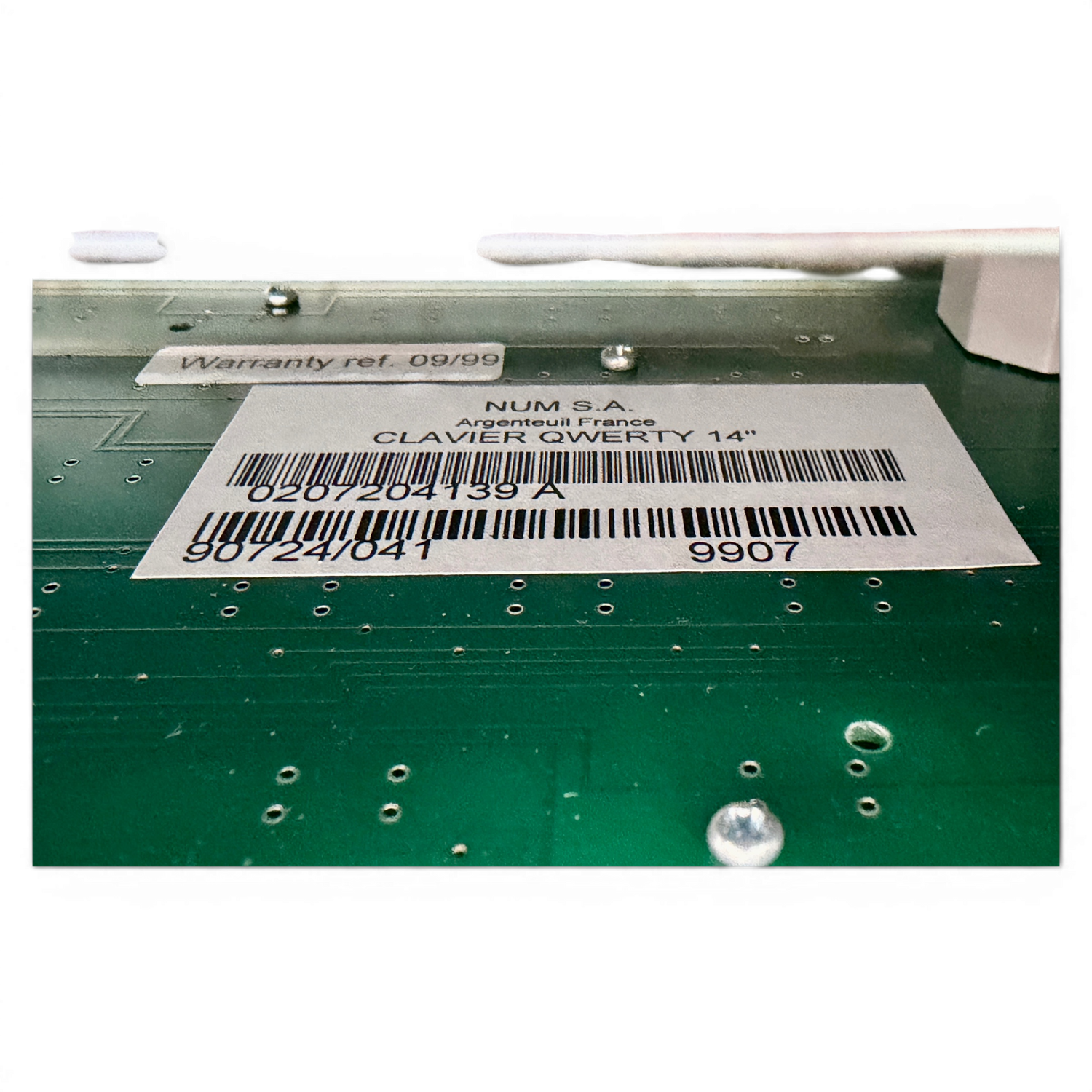

Designation	Clavier QWERTY 14"

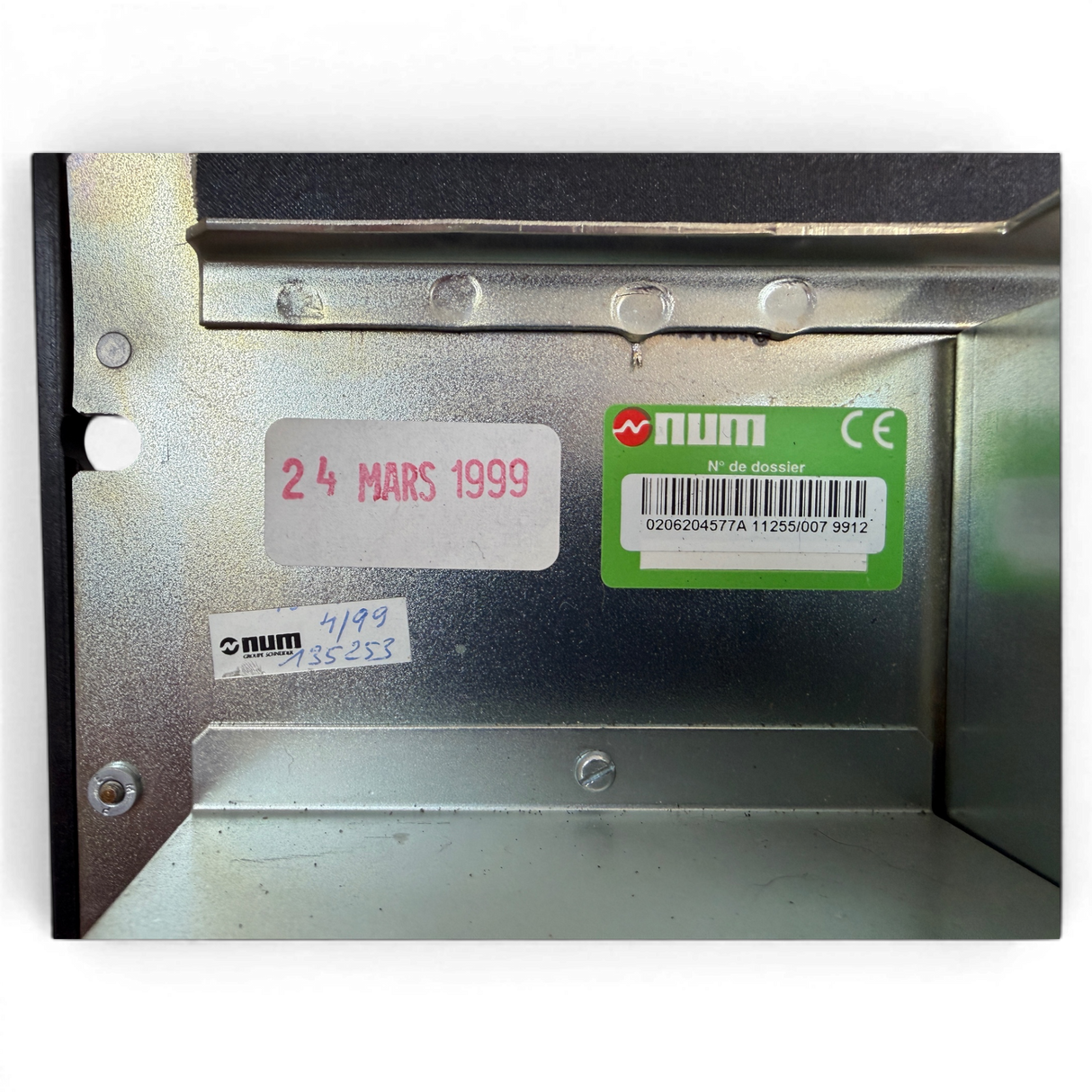

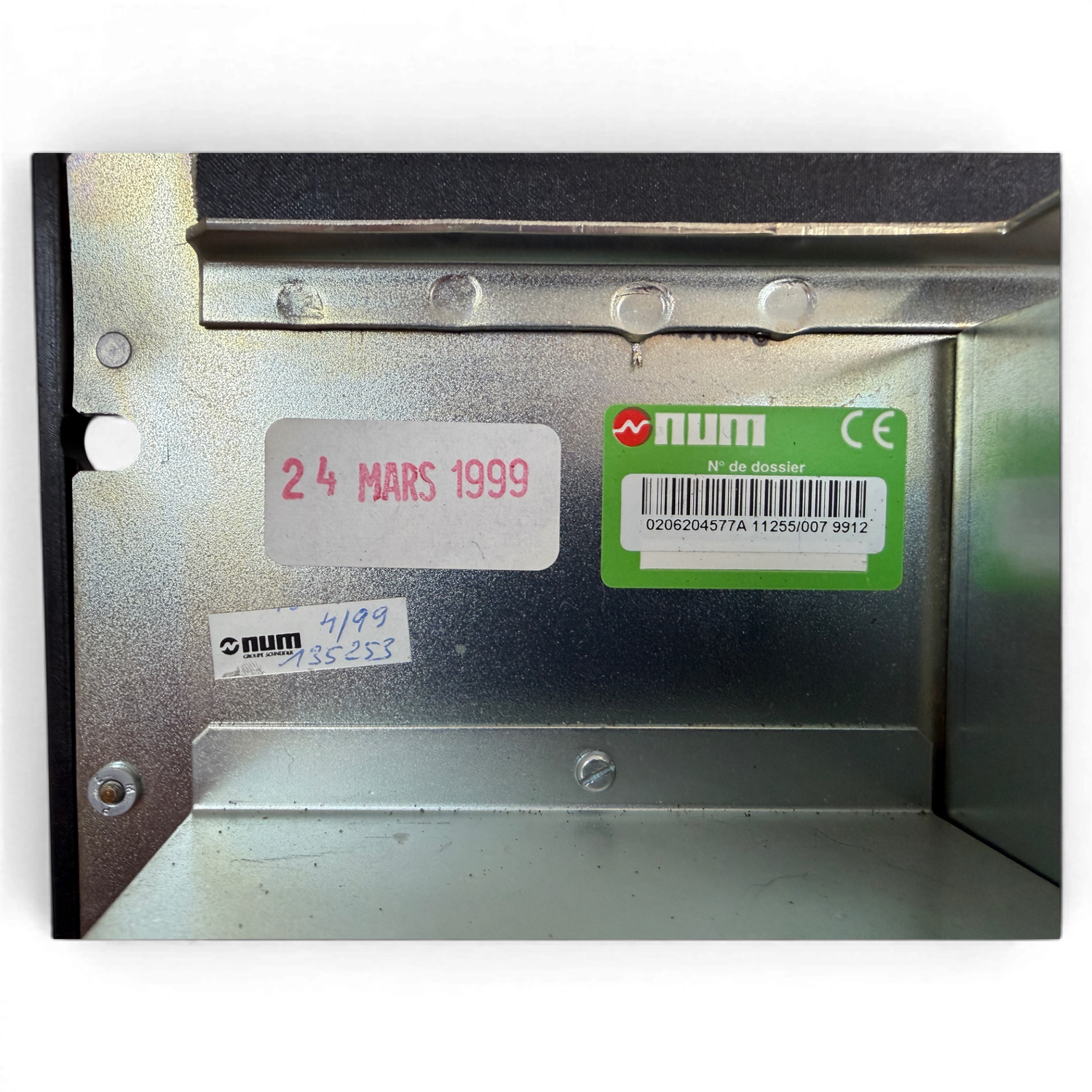

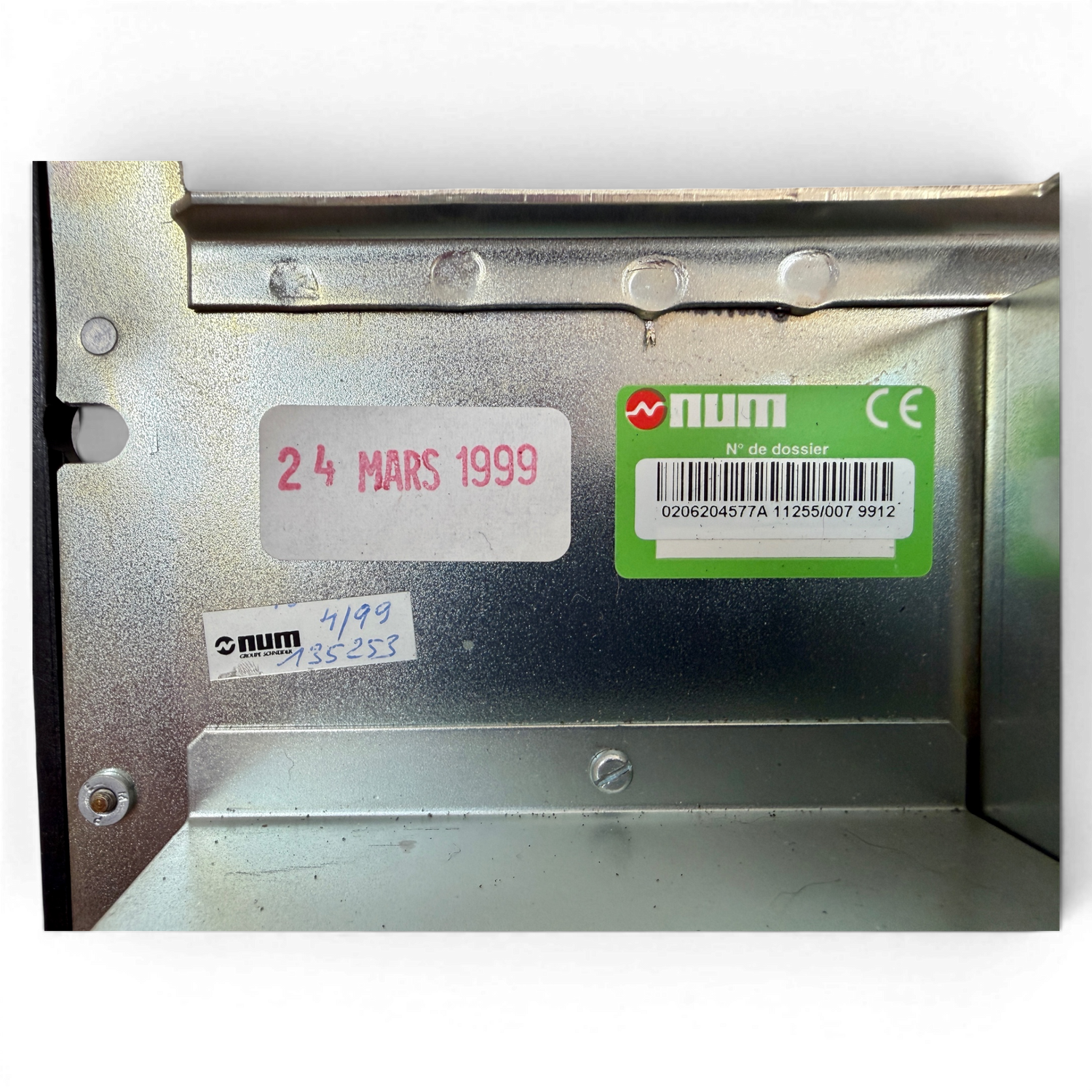

Date built	24.03.1999 (24 MARS 1999)
Serial No.	0206204577A
Additional No.	11255/007 9912
Internal ID	00/24/041 9907
Warranty ref.	09/99

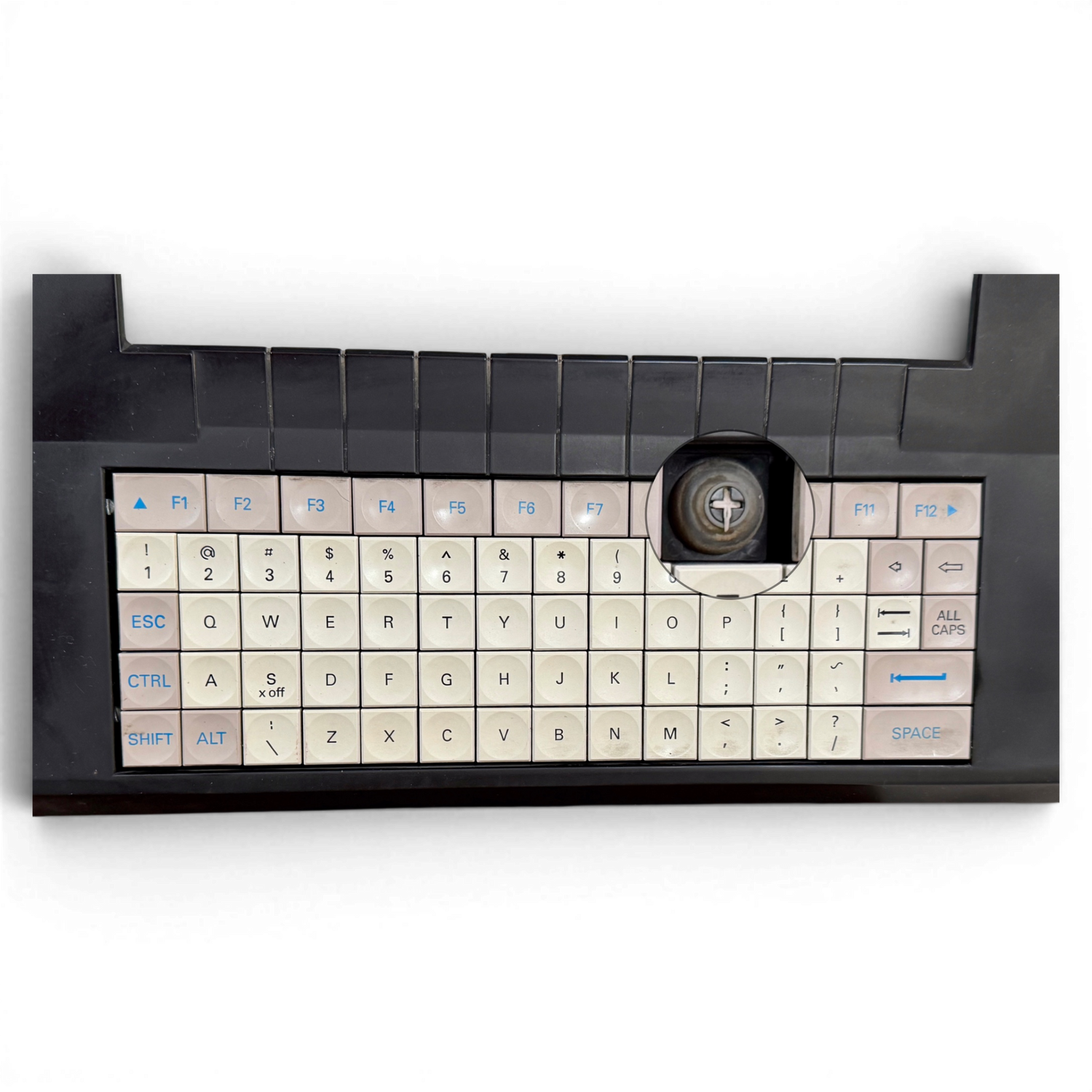

Keyboard	Industrial QWERTY with F1 to F12 (F9 key missing)

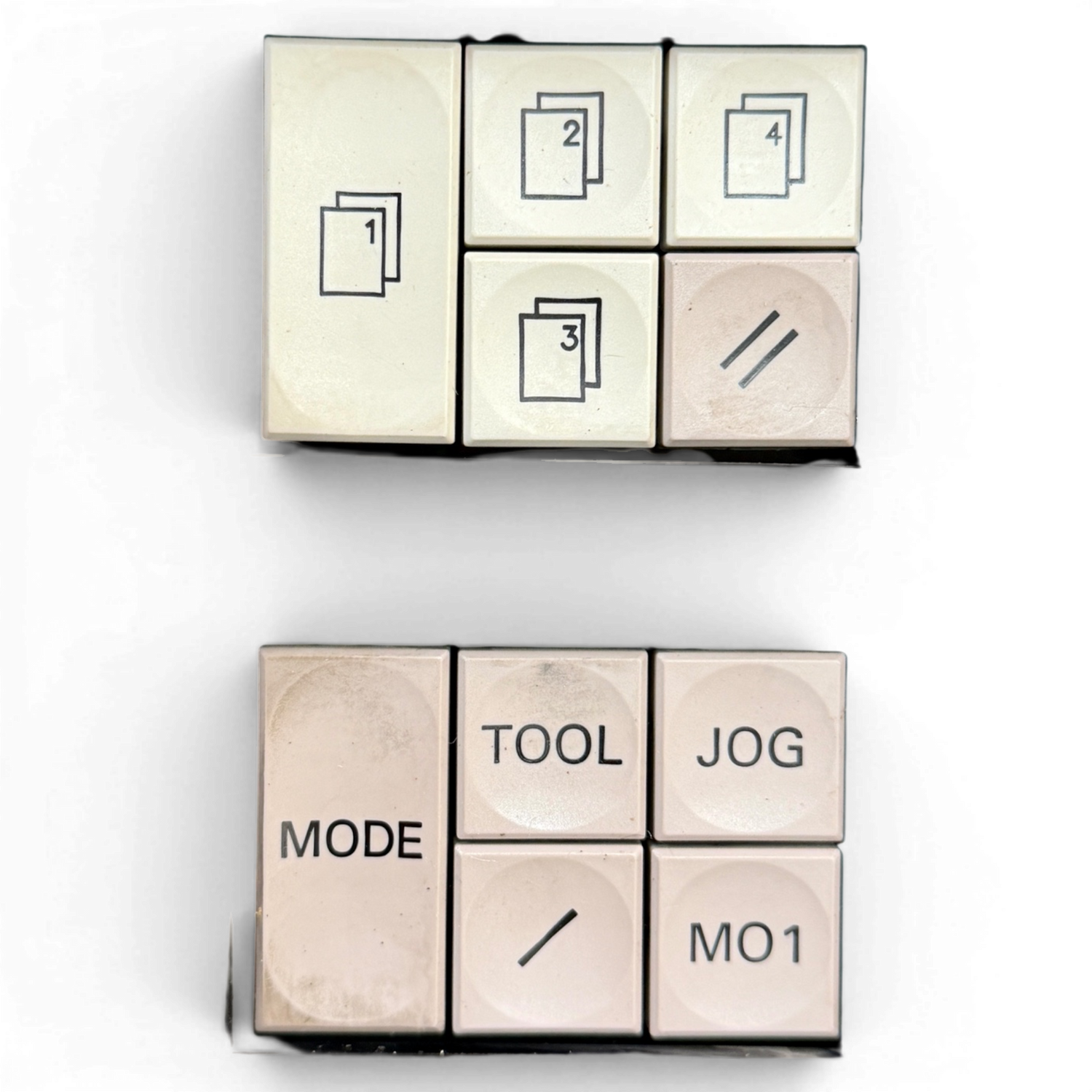

Machine keys	MODE, TOOL, JOG, MO1

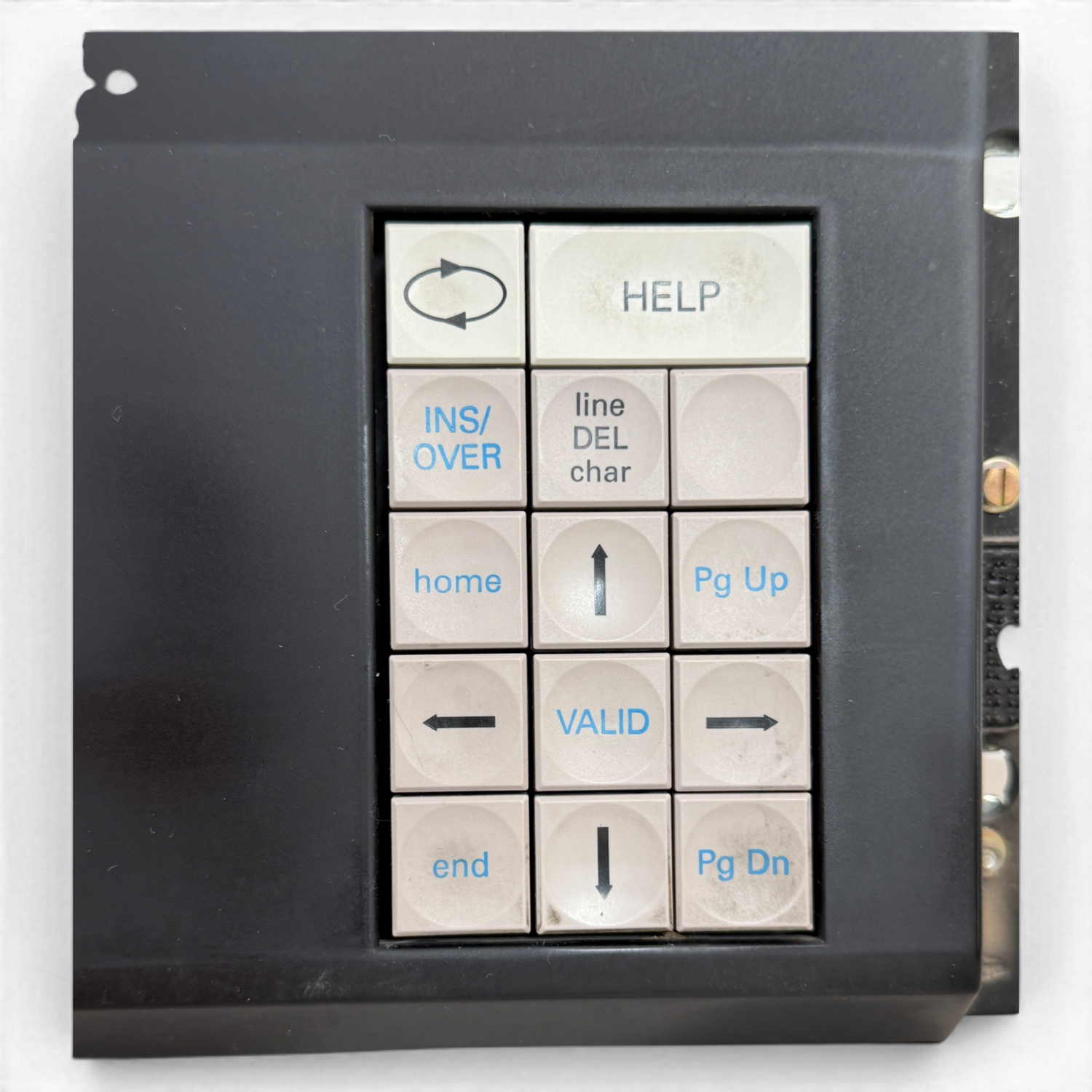

Navigation	VALID key, HOME, END, PG UP, PG DN, cursor control

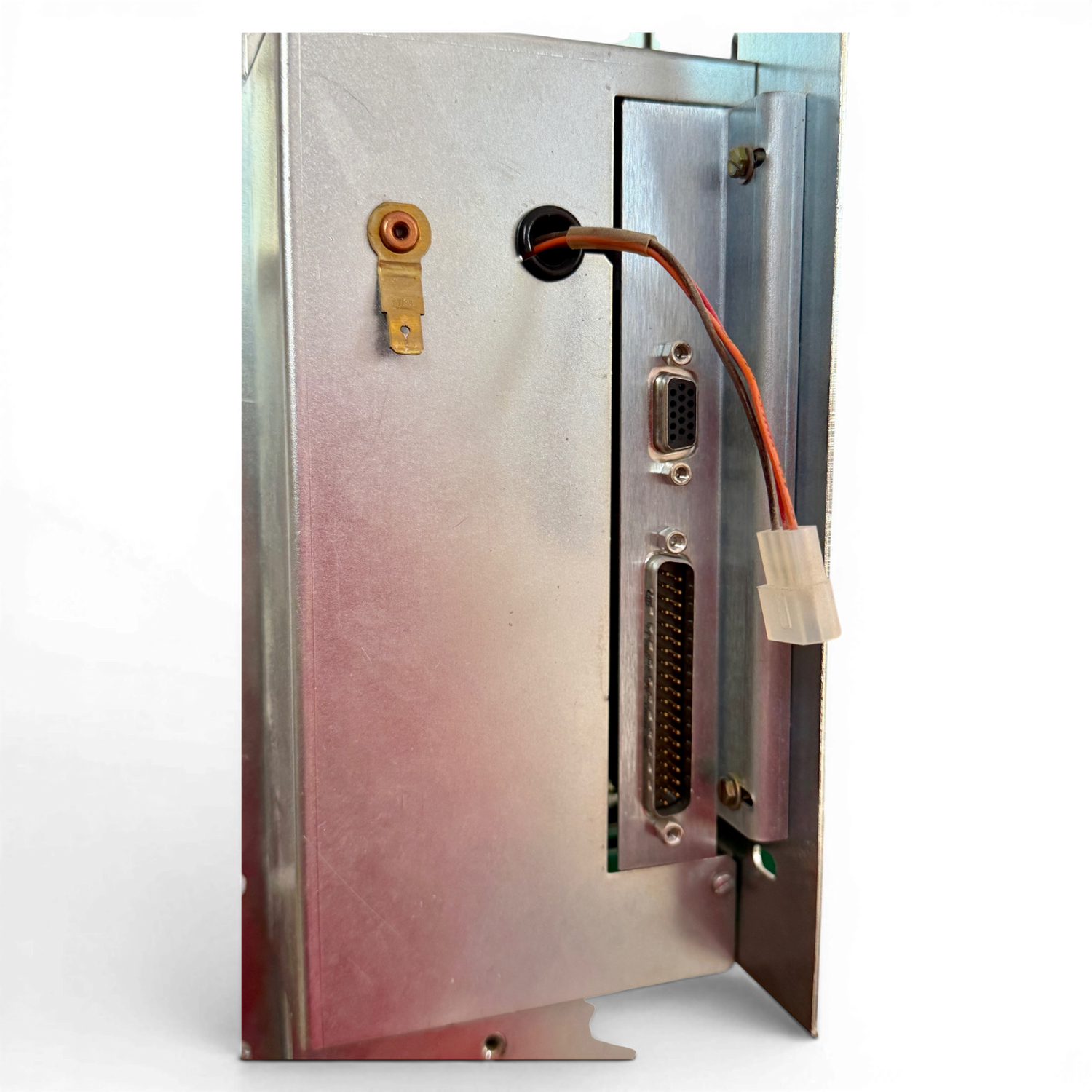

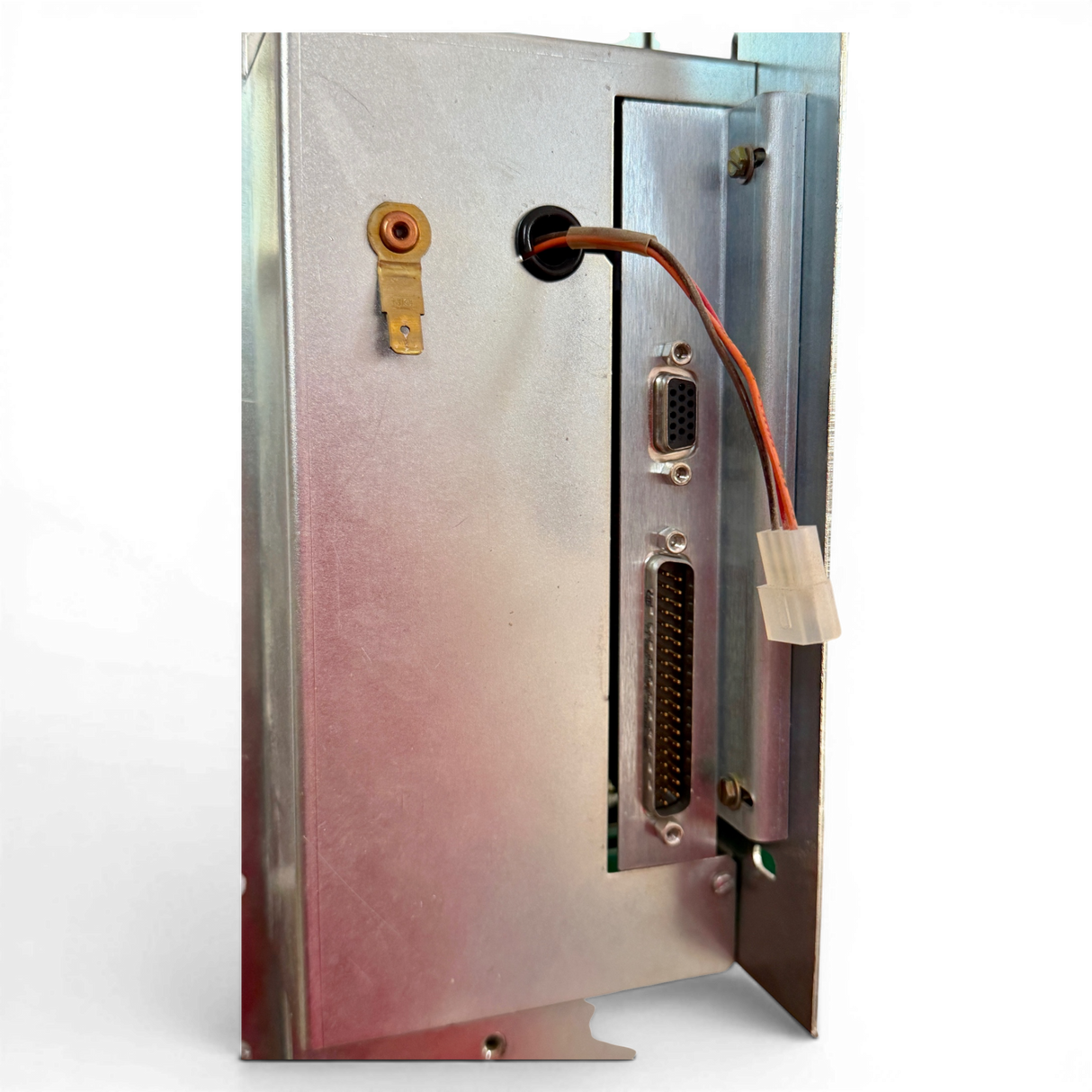

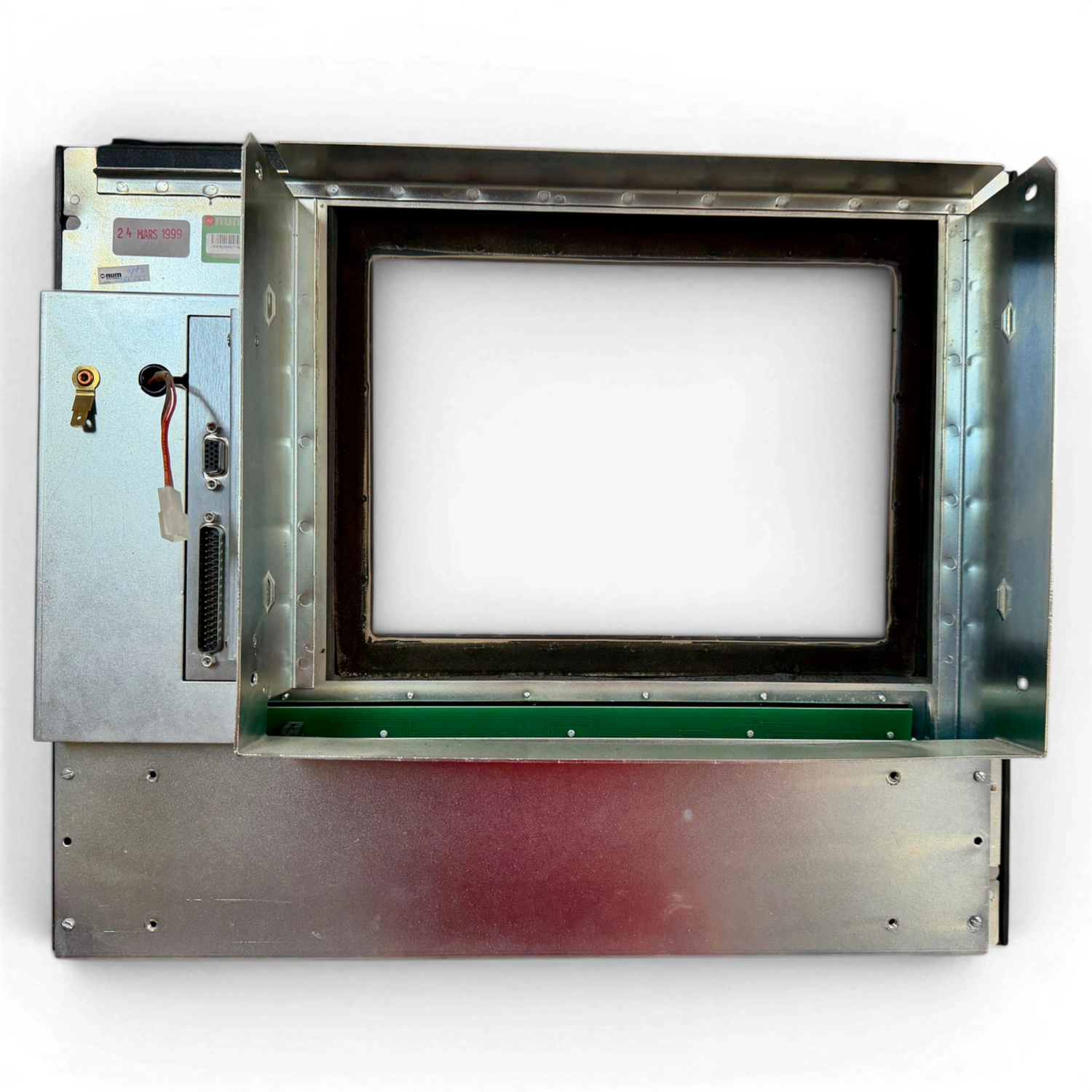

Connections	Rear Sub-D 15-pin and multi-pin connectors
Housing	Solid metal housing, front panel with cut-out for CNC display unit
Condition	Used · sold as pictured

Product description

Original NUM operator panel with integrated QWERTY keyboard for CNC controls, built for industrial use and offering a complete interface for operating and programming machines. It provides a full alphanumeric keyboard, function keys F1 to F12, dedicated machine keys such as MODE, TOOL, JOG and MO1, and a separate navigation pad with VALID function and cursor control.

Thanks to its rugged metal construction, the panel is a practical spare part for existing machines or for overhauling older control systems. Used, with age-related signs of use and soiling; the F9 key is visibly missing. Function has not been tested; sold exactly as pictured.

Compatibility & applications

IMA 310IMA 410IMA 610IMA 810IMA 480IMA 680NUM CNC controls

Scope of delivery

1 × NUM operator panel, complete as pictured.

Shipping to the USA & worldwide

In stock in Germany and shipped via FedEx or UPS, usually on the day of your order. Transit to the US typically takes 2–5 business days with full tracking. Import duties and fees follow the US regulations in force on the import date and are settled by the importer. More background on availability and pricing of legacy CNC electronics: read our guide for US customers.
