IMA IMA GLUING UNIT 720 DEGREE Gluing Section for IMA 680 V Part No...
Technical data
- IMA edge banding unit for 4-sided all-round edge banding suitable for IMA 680 480 980
- IMA edge banding unit for 4-sided all-round edge banding suitable for IMA 680 480 980

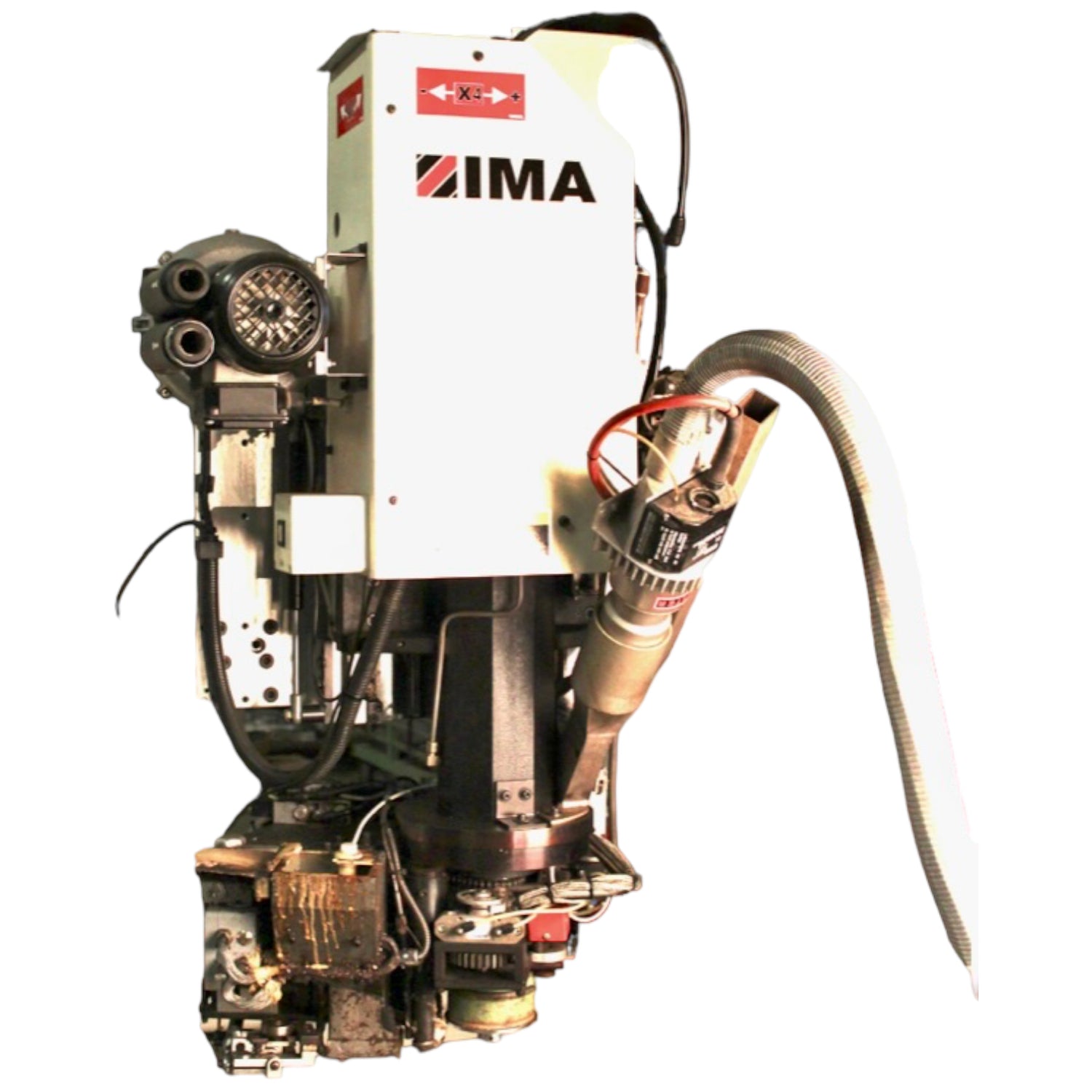

- This used edge banding unit is a specialized spare part for full-surface 4-sided edging and all-round edge banding on butt joints in IMA 680, 480, and 980 series machining centers. The module comes from an IMA 680 V machine with serial number 2216 and built in 2001.
- The unit is equipped with a main pressure roller with a diameter of 100 mm and a pneumatically controlled post-pressing roller with a diameter of 35 mm. An integrated adhesive application unit ensures even coating of the edge material with temperature and level control.
- The servo drive automatically adapts to the track speed and ensures precise feeding of the edge band. For re-activating the adhesive surface, a hot air unit with 7.5 kW is installed on the adhesive side. On the decorative side, an IR emitter with 600 watts supports material deformation for small radii.
- Further equipment includes a pneumatically driven cutting saw with butt edge sensing and an NC axis with a swivel range of up to 740 degrees and a pneumatic Z-stroke of 125 mm. Additionally, the unit has a separate NC axis in the Y-direction, which works in the X-direction on gantry machines and can be controlled independently of the main axis.
- Machine type IMA 680 V
- Serial number 2216
- Year of manufacture 2001
- Main pressure roller Ø 100 mm
- Post-pressing roller Ø 35 mm
- Hot air reactivation 7.5 kW
- IR emitter 600 W
- NC axis swivel range up to 740°
- Pneumatic Z-stroke 125 mm
- Commodity code 84224000
- Shipping weight approx. 180 kg
- Highlights
- Highlights
- Suitable for IMA machines of series 480, 680, 980
- With hot air activation, IR emitter and servo edge feed
- NC axis with Z-stroke and separate axis for flexible integration
- Manufacturer IMA
- Manufacturer
- Item number 680720
- Item number
Scope of delivery
The unit is delivered as shown, without further accessories
-
