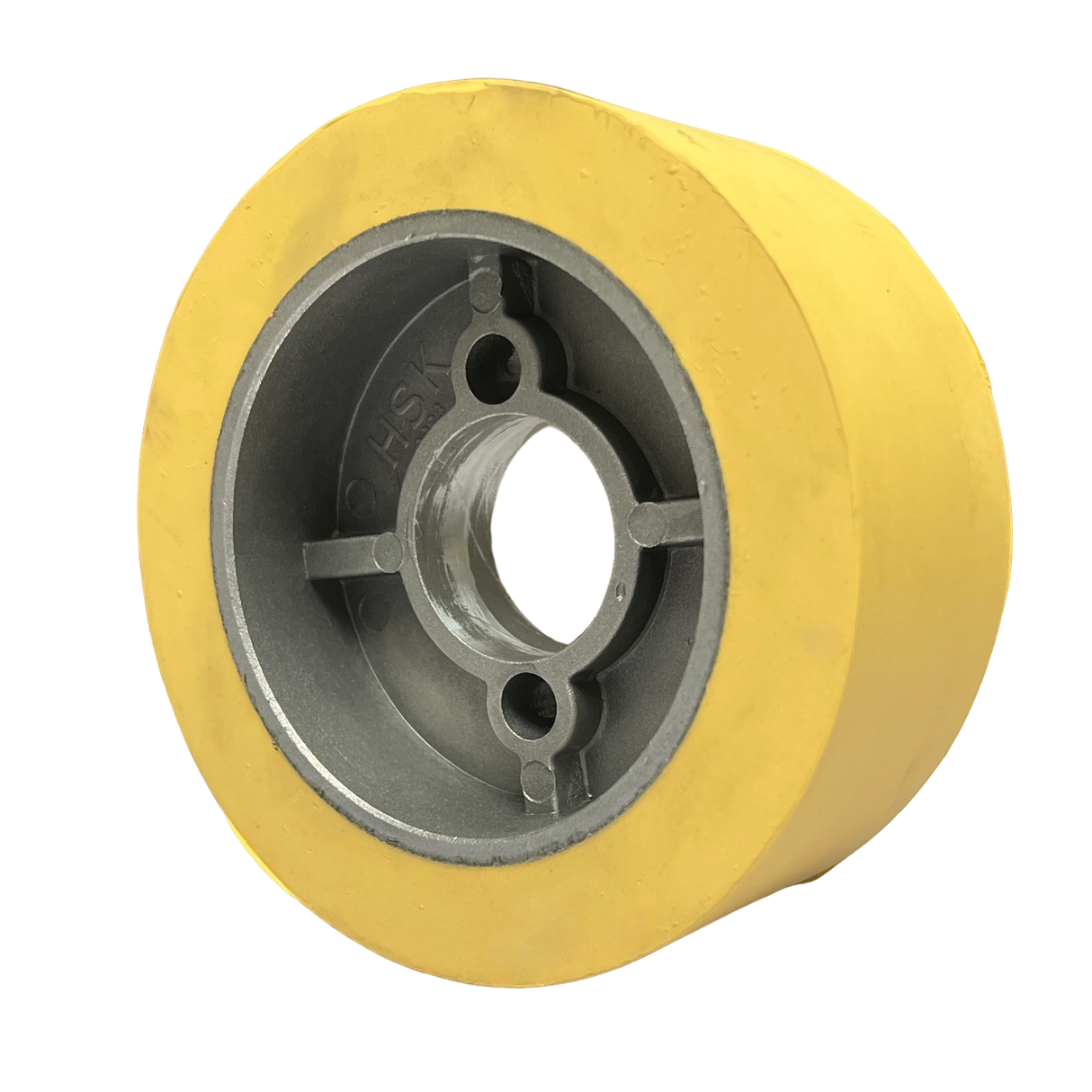

4 Pieces PUR Feeder Rollers 120 x 60 mm HighGrip Polyurethane (PU R) with Aluminum Core – Ø35 mm Bore – Bolt Circle 8.5 x 48.5 – for Maggi, Haffner, HolzHer

4 Pcs PUR Feeder Rollers 120 x 60 mm HighGrip Polyurethane (PU R) with Aluminum Core – Ø35 mm Bore – Bolt Circle 8.5 x 48.5 – for Maggi, Haffner, HolzHer

Condition: Brand new

Special Version: HighGrip Extra Grip

Special advantages of the feeder rollers:

Thanks to the increased grip of the special PU rubber compound, this set of feeder rollers offers a decisive advantage in daily use: even with difficult or sensitive materials – such as coated panels, resin-rich woods, or painted surfaces – the feed remains constant and even.

This is particularly important in milling: workpieces that are not continuously guided cannot be precisely processed – resulting in chatter marks, milling errors, dimensional deviations, or visible unevenness on the surface.

These rollers effectively counteract this. The workpiece remains under even feed tension, so that clean milled edges, even surfaces, and reproducible quality are achieved – even with demanding materials and complex machining operations.

Description:

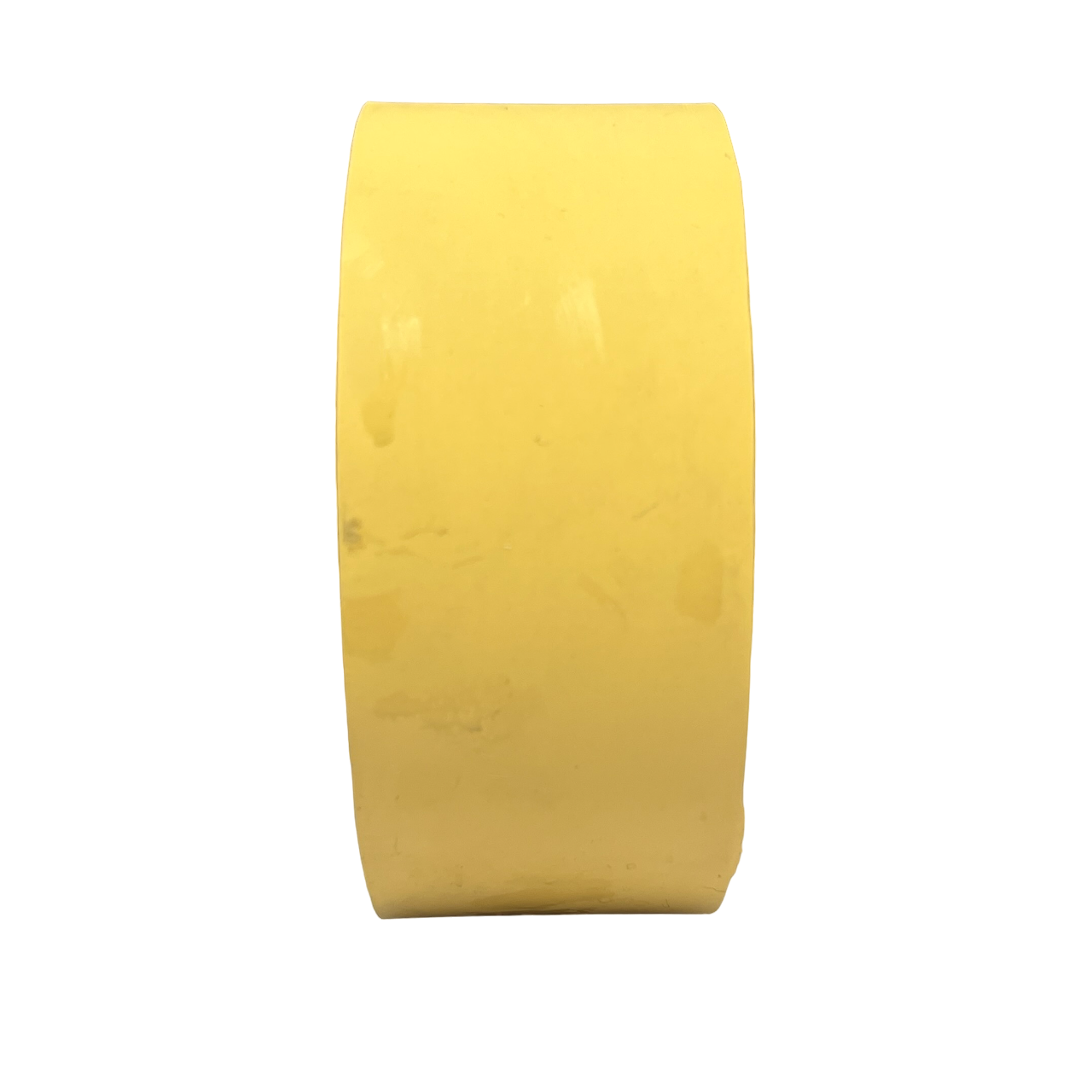

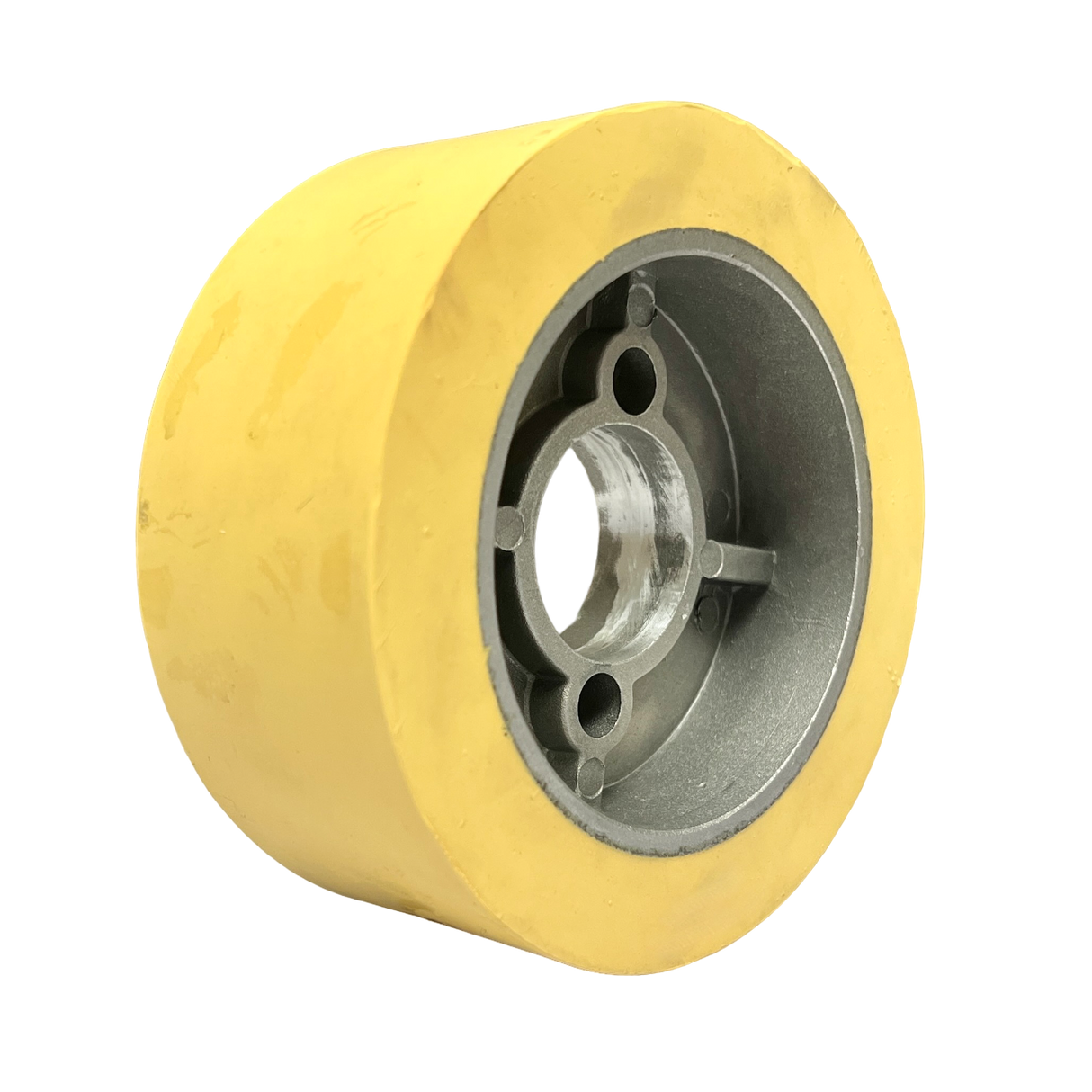

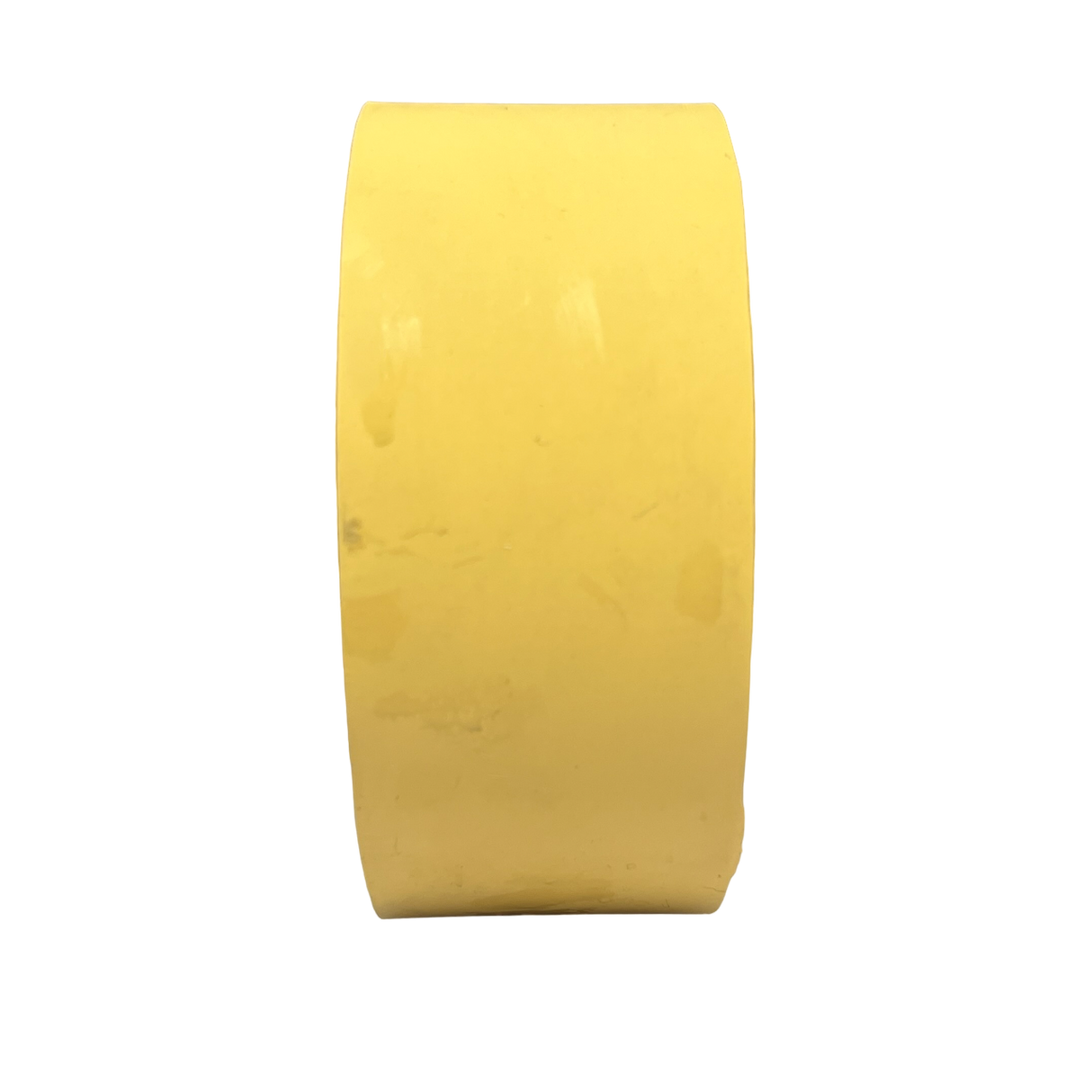

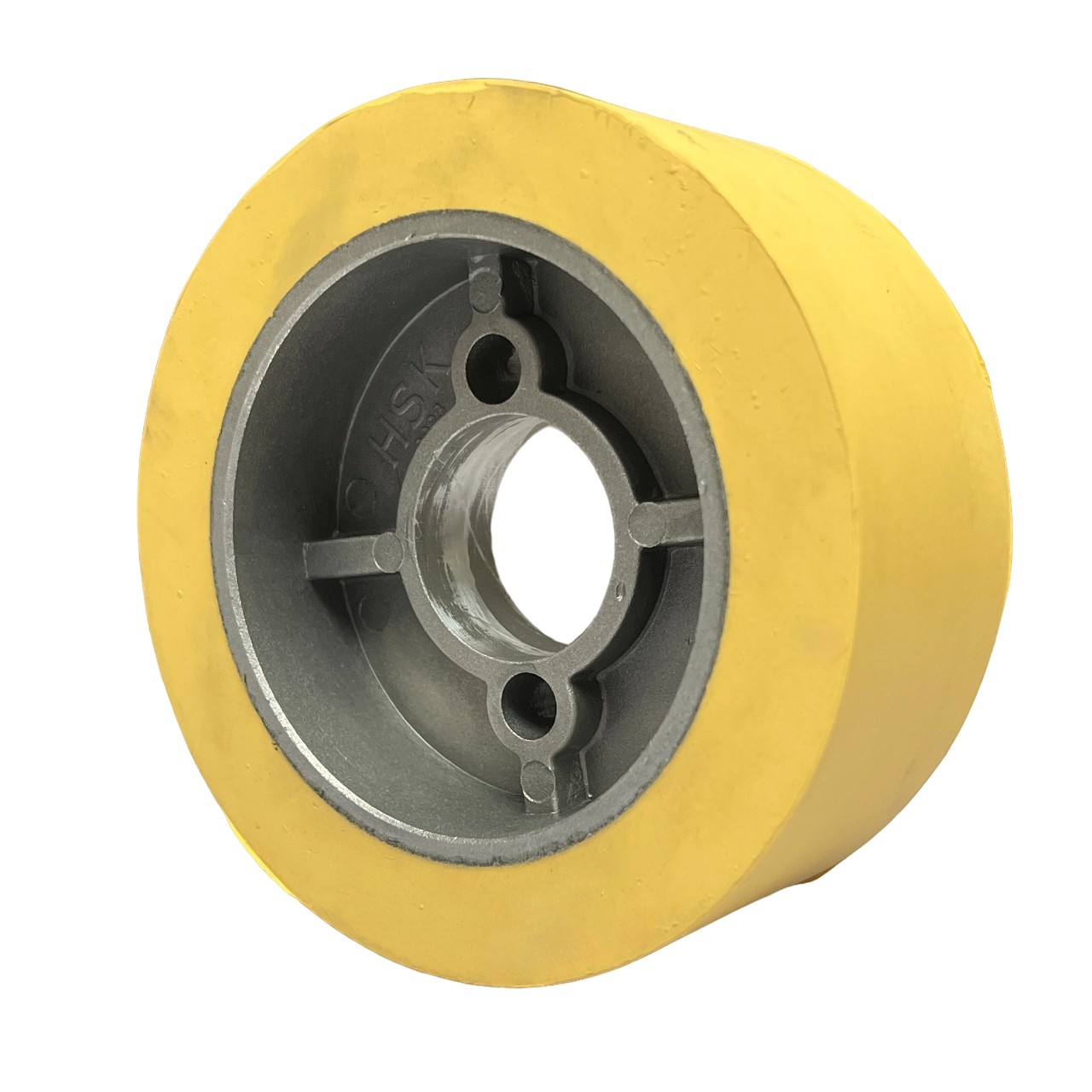

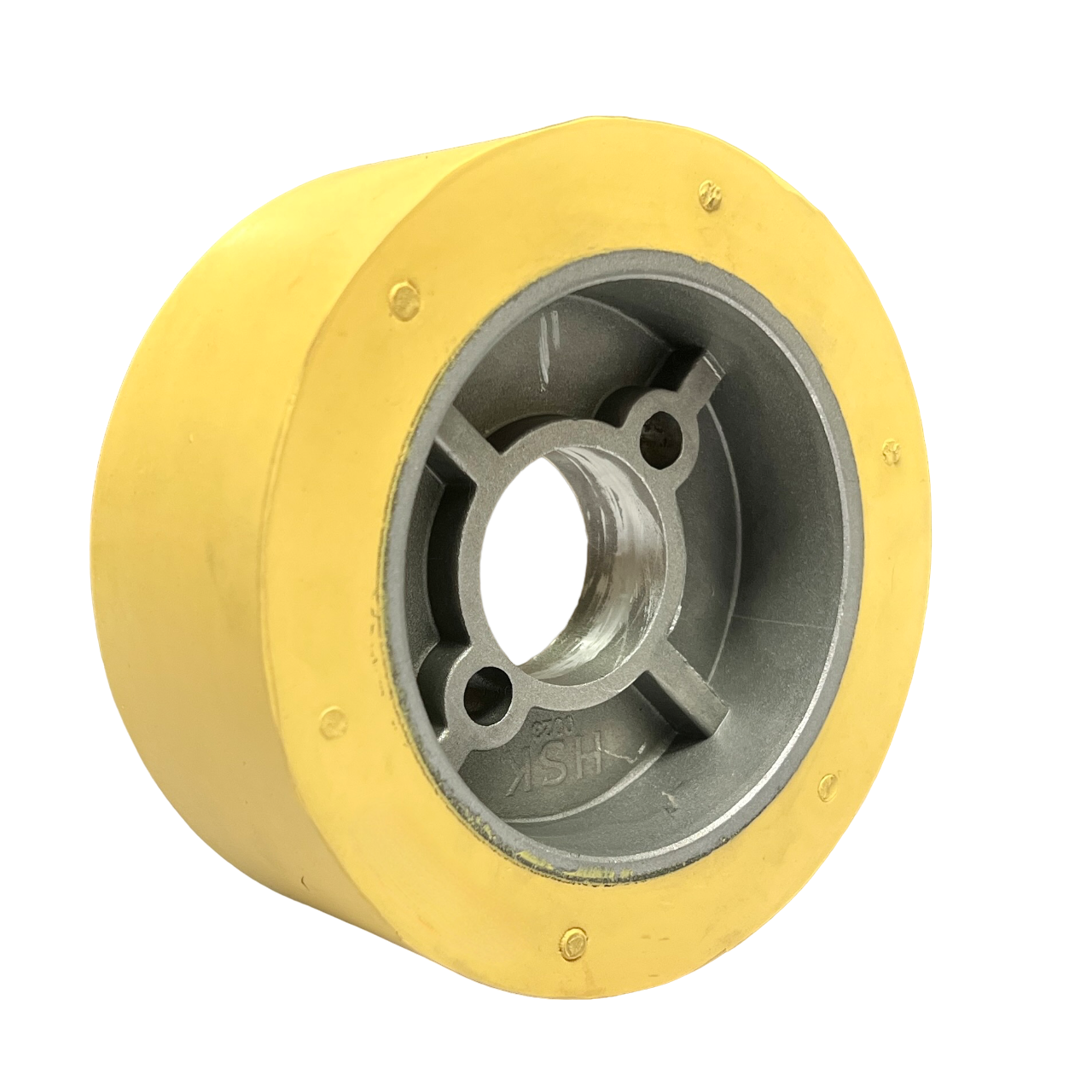

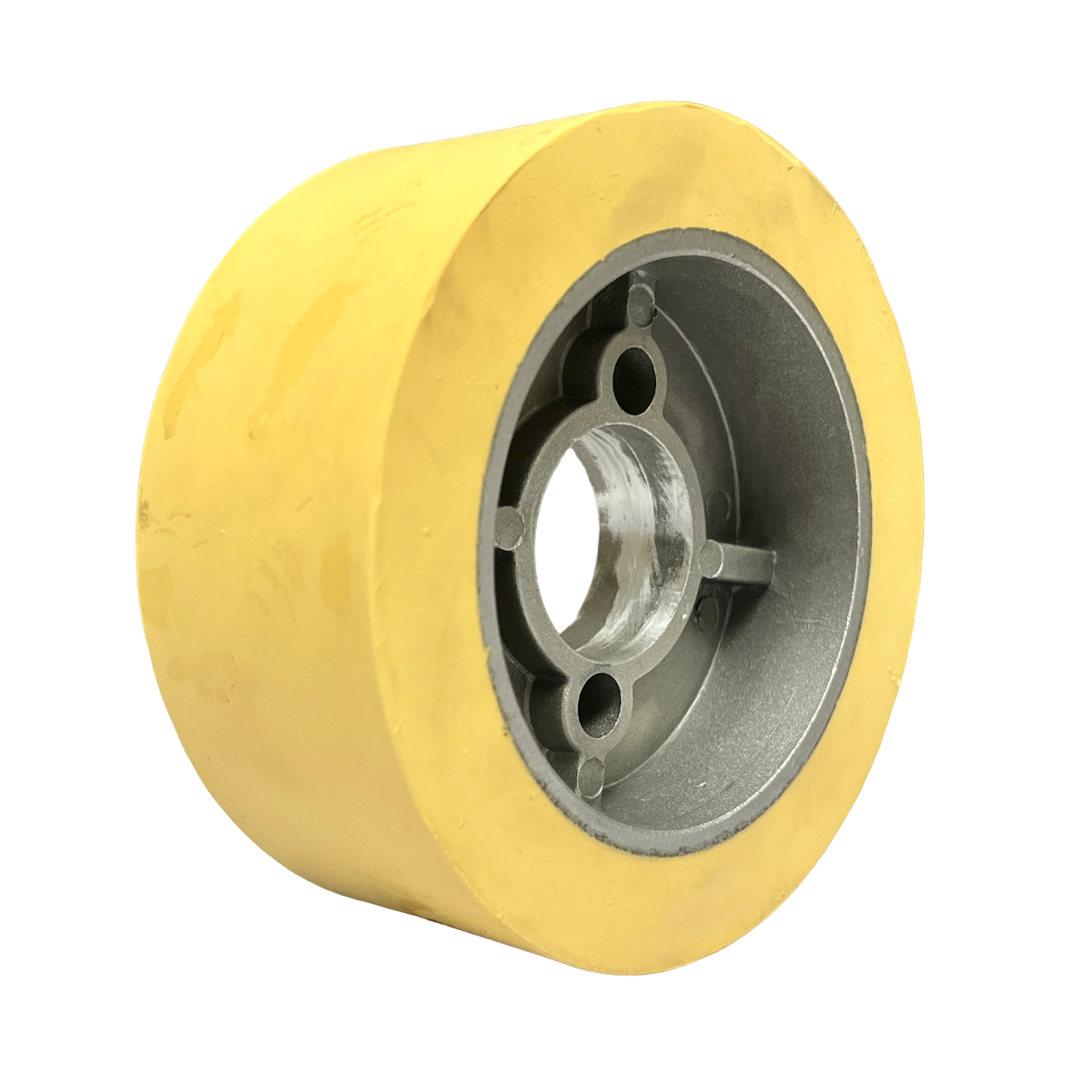

The offered set consists of four HighGrip feeder rollers. The rollers were specially designed for use in professional feeder units. The yellow, soft polyurethane coating provides up to 26% more grip than conventional rollers. This ensures an even, non-slip feed even with demanding materials.

The solid and precisely manufactured design with a cast aluminum core offers the advantage over steel cores that the tool is better protected in case of accidental contact – which reduces both downtime and tool costs.

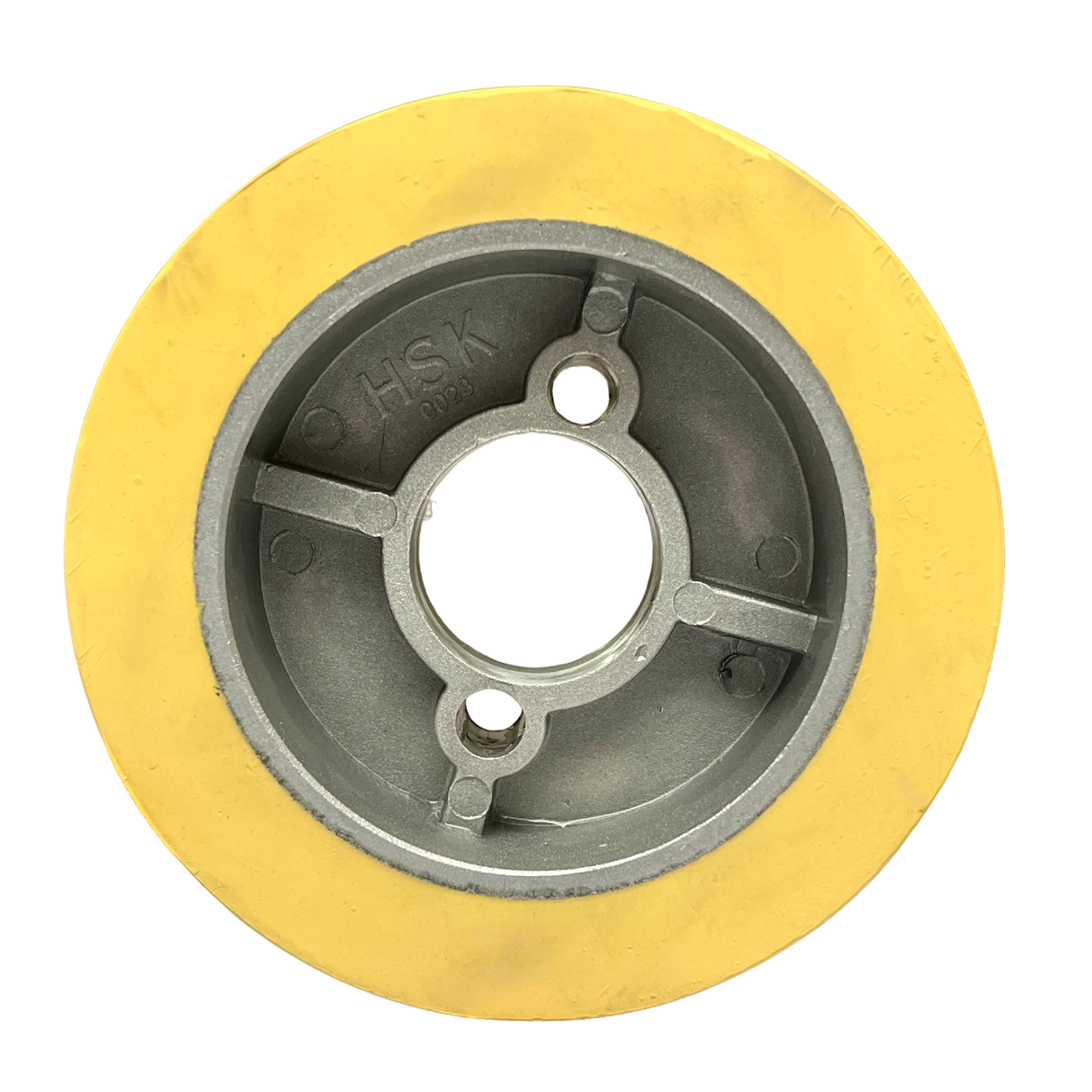

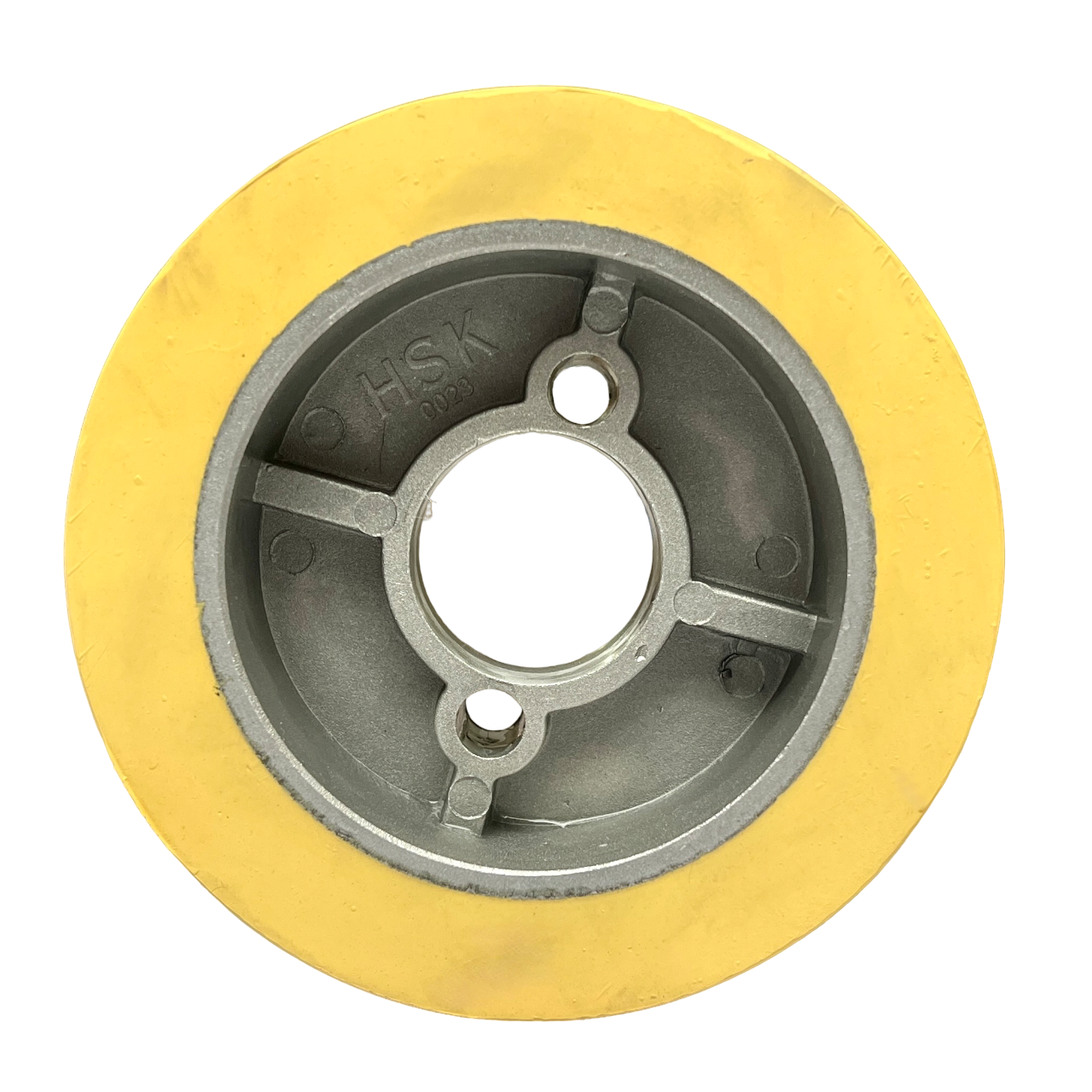

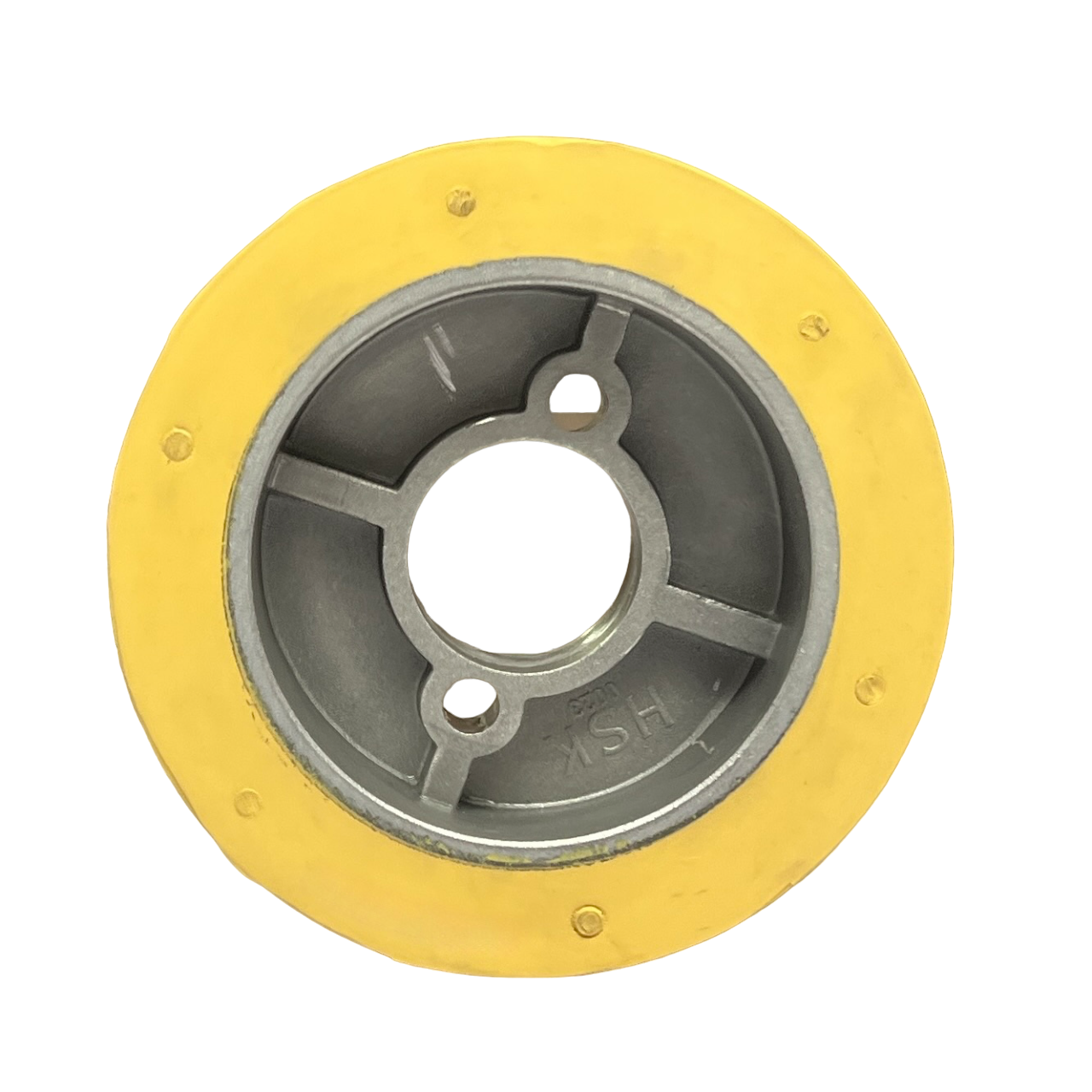

The rollers have a central bore of 35 mm and two additional mounting holes in a bolt circle of 8.5 mm on a 48 mm diameter.

Technical data (per roller):

• Outer diameter: 120 mm

• Width: 60 mm

• Bore: 35 mm

• Bolt circle: 2 x 8.5 mm on 48 mm Ø

• Tread: Polyurethane (PUR/PU), HighGrip compound

• Core: Cast aluminum

• Features: Concentric and laterally stable, resin-resistant, durable

• Design: Without axle (for mounting)

Compatibility:

Suitable for many common feeder units, including:

Haffner, Holzher, Maggi, SCM, Maka, Panhans, Okoma, Eumacop, Gemino and others

Scope of delivery:

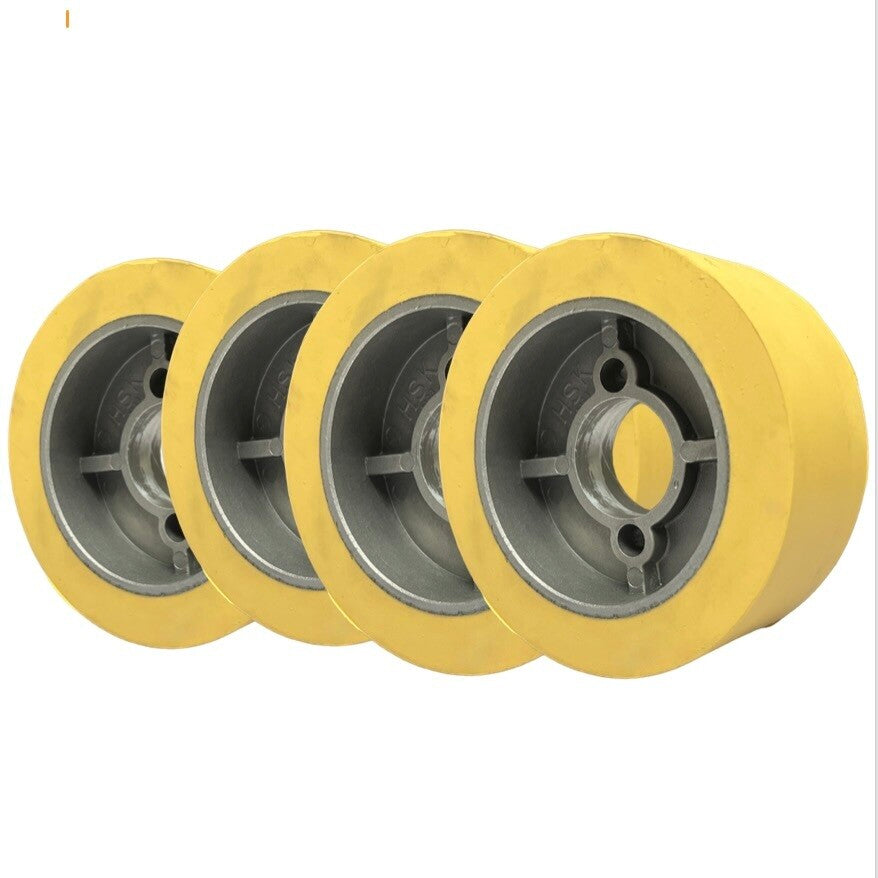

4x Feeder rollers (set) as described and pictured
