NUM NUM Input and Output Card for Control 1062 for HOMAG and WEEKE Machines Part No. 03800/083 Module SBCe Part No. 03800/083 |

Description

NUM input and output card for controller 1062 for HOMAG and WEEKE machines Part No. 03800/083 Module SBCe

(io board, input output module)

Part No.

Part No.

03800/083

Manufacturer

Manufacturer

NUM

Other identification order no.

Other identification order no.

202956 D

13 HAS 000 E1

Date code 1995

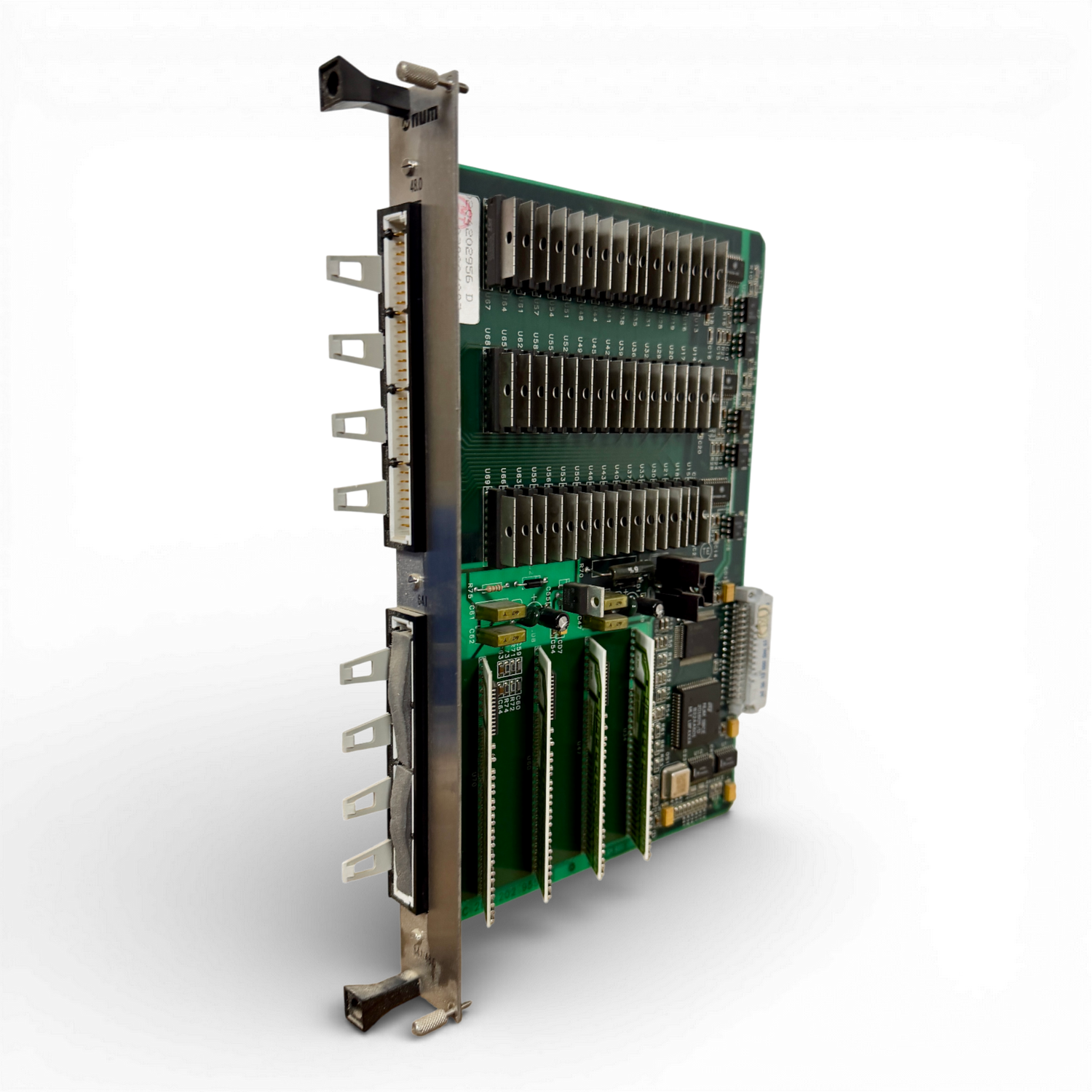

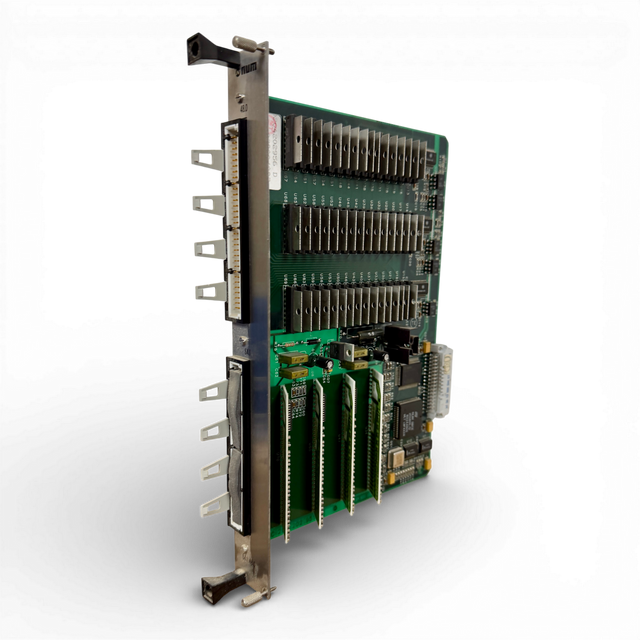

This NUM input and output card is an assembly for the NUM 1062 CNC controller and is used in CNC machining centers from HOMAG and WEEKE. The card forms the central interface between the CNC controller and the machine periphery and processes digital input and output signals from sensors, limit switches, valves and other actuators.

Several integrated circuits are installed on the circuit board, including a NUM SBCe control module as well as additional logic and interface ICs. The clock is generated by a quartz oscillator. For the internal power supply, regulated supply areas are present on the card, recognizable by the voltage regulator sections REG1 and REG2 with associated capacitors and protection circuitry.

Several identically constructed rows of components with attached heat sinks indicate powerful drivers and output stages that are designed for continuous industrial operation. The module is designed as a plug-in card with a front panel and has several front connectors as well as internal system connections for integration into the NUM rack system.

Technical Data

• Control system NUM 1062
• Machine focus HOMAG WEEKE
• Module SBCe
• Design Plug-in card Eurocard format with front panel
• Assembly NUM SBCe IC ST modules Quartz oscillator Voltage regulators REG1 REG2
• Cooling passive heat sinks
• Connections Front connectors and internal system connections
• Weight
• Weight
• approx. 0.9 kg
• Dimensions
• Dimensions
• approx. 360 × 260 × 40 mm
• Technical purpose
• Technical purpose
• Input and output module for NUM 1062 controllers in HOMAG and WEEKE CNC machines for signal acquisition, signal processing and control of machine components as well as for internal system communication.

Condition

Used from machine dismantling

Storage marks possible due to age

Functionality tested

Highlights

Highlights

• Input and output card for NUM 1062 in HOMAG and WEEKE machines

• Robust industrial design with heat sinks and regulated supply areas

• Plug-in card with front connections for existing NUM rack systems
