SCM - AREA
area is a CNC 5-axis portal machining center in a modular system for processing large wooden components such as CLT panels for walls and glulam straight and curved glued beams.
Manufacturer
model
Weight
Electric spindle power
Tool magazine
SCM
AREA
from 16,000 kg
30 kW
12 places
MAX. Workpiece width
MAX. Workpiece length
X-axis speed
Y-axis speed
Z-axis speed
4.5 m
50 m
50 m / min
75 m / min
50 m / min
PRICE On demand
Net price plus statutory sales tax in Germany are subject to our terms and conditions, which you can view on this website
Machine description
FLEXIBLE EDITING IN NUMEROUS APPLICATIONS:
Walls, ceiling elements (BSP-BSH), crooked beams, glue beams, insulation panels for trucks, including heavy elements that are machined with a 5-axis milling head.

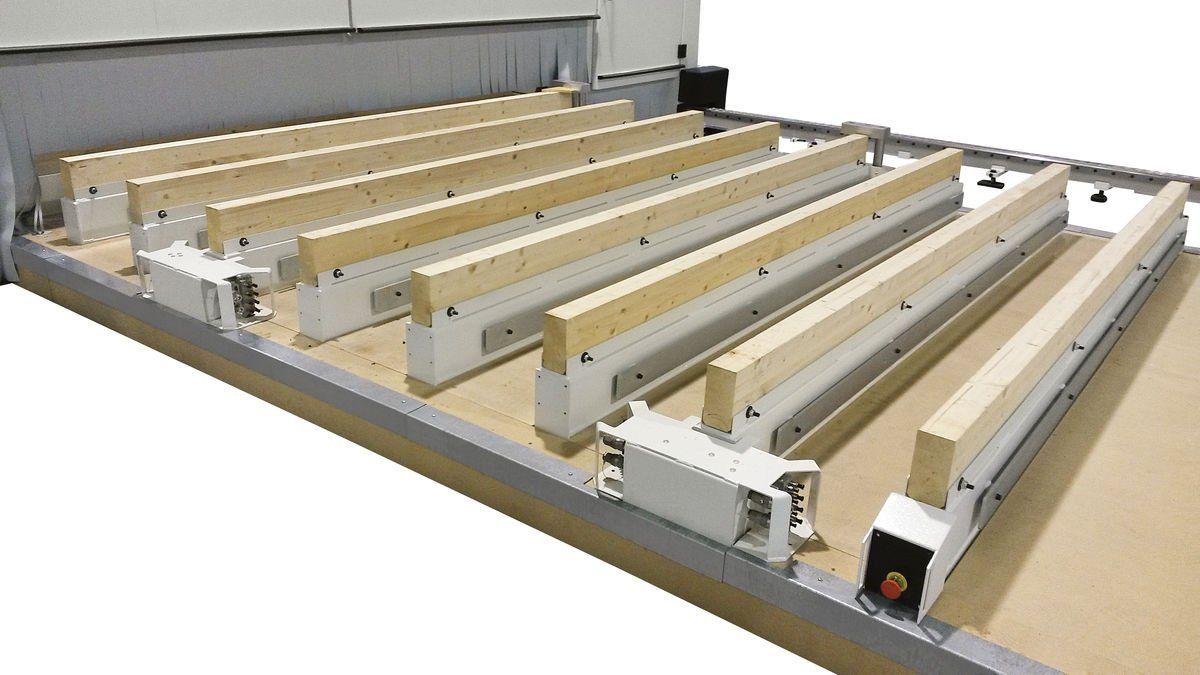

EASY ACCESS TO THE WORK TABLE for problem-free loading of the elements to be processed, thanks to the use of slide rails with a low vertical profile and little space on the floor.
MAESTRO BEAM & WALL:

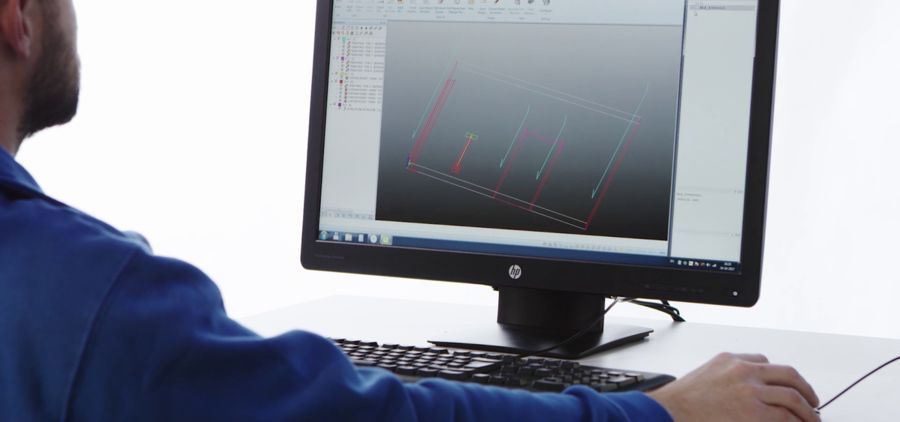

The SCM software for timber construction, which can automatically generate machine programs according to the BTL format, the standard format in the industry, and which enables other file formats to be imported.

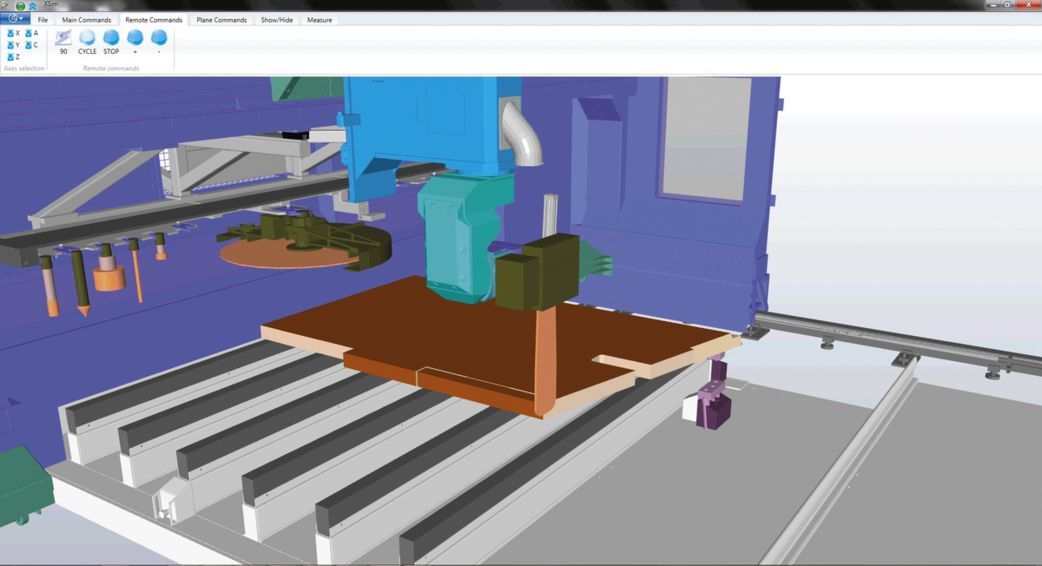

NO RISK OF COLLISION and precise calculation of the processing times by the 3D simulation station.
(technical data subject to change, as information provided by the manufacturer)
